Specifications
1.Cummins, Deutz radiator.2.Including tubes and intercooler
3.We can make big core radiator.

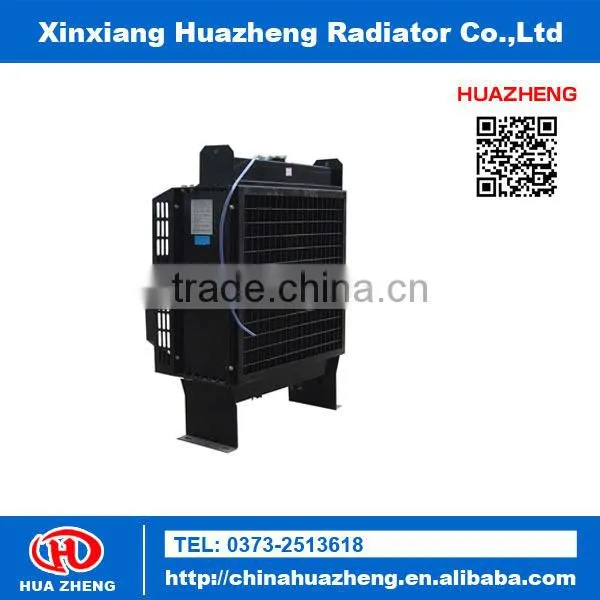

Cummins generator radiator for diesel 6BTA engine parts
Cummins generator radiator specifications:
This radiator is matched with Cummins diseal engine
1.the model is 6BTA
2.the power is 100KW
3.the overall dimension is 1150*785*540
4.the installation dimension is 915*150
5.the material is Aluminum (we can also make cooper radiator according to the customer's need )
6.the ambinent temperature is 40°C(we can also make 50°C radiator if the customer ask )
7.the ISO/TS16949 certificate
We can also design Cummins and perkins radiataor according to the customer's demand ; And we can give you the best qualtiy and most reasonable price products ! Cummins generator radiator:
MODEL |
OVERALL DIMENSION |
INSTALLATION DIMENSION |
CENTER HEIGHT |
POWR |
4BT3.9-G1/G2 |
954*732*476 |
700*150 |
457 |
50KW |
4BTA3.9-G2 |
954*732*476 |
700*150 |
457 |
50KW |
6BT5.9-G1/G2 |
1007*785*525 |
755*150 |
485 |
75KW |
6BTA5.9-G1/G2 |
1007*785*525 |
755*150 |
485 |
100KW |
6BTAA5.9-G2 |
1008*785*558 |
755*150 |
485 |
120KW |
6CTA8.3 |
1151*790*497 |
760*150 |
555 |
140KW |
6CTAA8.3 |
1209*945*587 |
915*150 |
565 |
150KW |
6LTAA8.9 |
1205*945*498 |
915*150 |
550 |
200KW |
|
|
|
|
|
MODEL |
OVERALL DIMENSION |
INSTALLATION DIMENSION |
CENTER HEIGHT |
POWR |
MTA11-G2 |
1194*993*595 |
872*76 |
543 |
250KW |
MTAA11-G3 |
1200*1052*700 |
875*210 |
549 |
280KW |
KTA19-G2 |
1630*1355*892 |
1305*250 |
860 |
330KW |
KTA19-G3 |
1630*1355*892 |
1305*250 |
860 |
360KW |
KTA19-G4 |
1630*1355*892 |
1305*250 |
860 |
400KW |
KTAA19-G7 |
1680*1545*769 |
1450*370 |
820 |
500KW |
KTA38-G2 |
1980*2055*869 |
1975*250 |
1095 |
750KW |
KTA38-G2A |
1980*2055*869 |
1975*250 |
1095 |
792KW |
KTA38-G5 |
1980*2055*869 |
1990*250 |
1105 |
800KW |
NTA855-G1 |
1250*975*630 |
870*76 |
608 |
248KW |
NTA855-G2 |
1250*975*630 |
870*76 |
608 |
313KW |
Copper/ Aluminum radiators for cummins and perkins

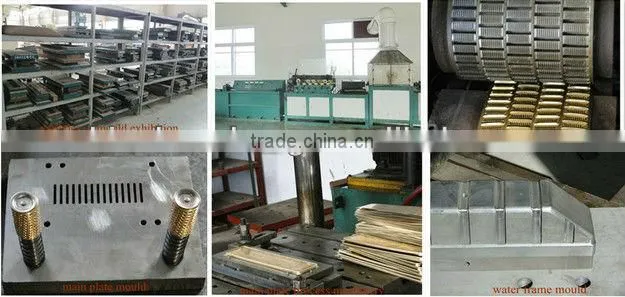

Our tracotor, truck and genset radiators process technology
OEM manufactory radiators main structure
Contact me on line or by email at your any time!
