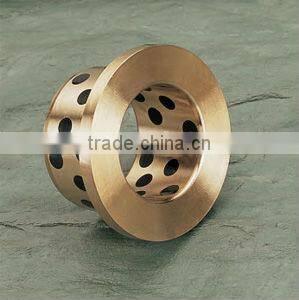

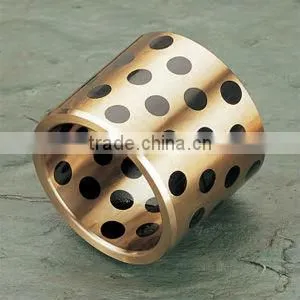

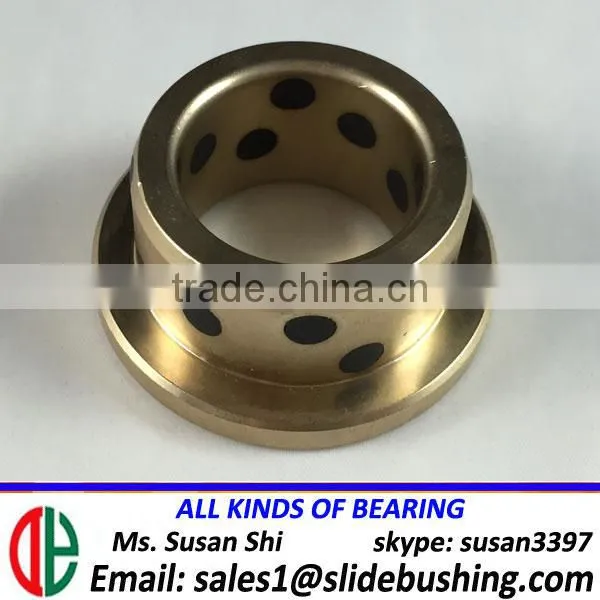

Bonze graphite flanged bearing bushing sleeve bearing bushing
Bonze graphite flanged bearing bushing sleeve bearing bushing
JDB material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.
- Feature
1. It can work without oil for long time
2. High load capacity
3. Inner Diameter machineable parts are available against order
4. High level thermal conductivity
5. Minimum overall dimensions
6. Good chemical resistance and anti-corrosion
- Technical Data
Material |
Bronze |
CuZn25Al6Fe3Mn3 + Graphite |
Iron |
Cast-iron + Graphite |
|
Density |
|
8.2g/cm3 |
Tensile Strength |
|
>=755N/mm2 |
Anti-compact Tenacity |
|
>=400~500KJ/m3 |
Hardness |
|
>=200HB |
Max Load Pressure |
|
100N/mm2 |
Speed Limit |
|
0.5m/s |
PV value limit |
|
1.65N/mm2.m/s |
Friction coef |
Oil Lubrication |
0.03 |
Dry Friction |
0.16 |
|
Working temperature |
|
-40~+300°C |

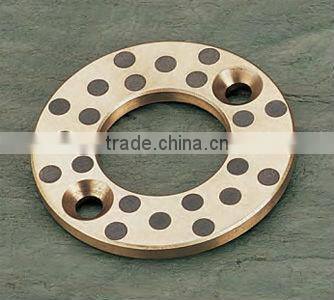

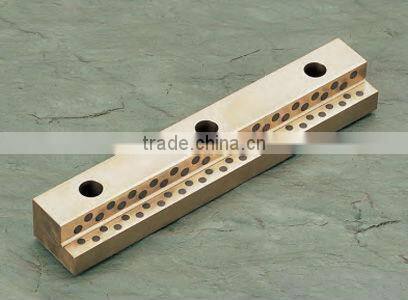

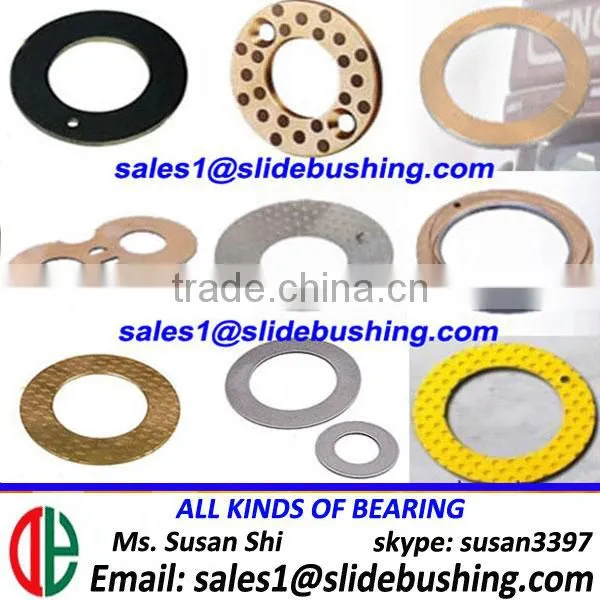

- Basic types
- Size list
- Typical Application
This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other chemical environments when no oil can be introduced. It is widely used in automotive products line, water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines...
- Factory informtion
Admin Office
workshops
Inspection
- We are supplying full lines of slide bushings:
SF-1(du) oilless bearing bushing (PTFE Composite) |
SF-2(dx) slide bearing bushing (POM Composite) |
FB090(FB090G) bronze bushing |
FB092 bronze bushing |
JDB,JFB solid graphite lubricating bushing |
JF bi-metal bushing |
FU sintered bronze or iron bushing |
FZ POM/Al/Cu ball cage retainer |
- ISO/TS16949 certification
