Bi Metal Bush with flange SAE1010 SAE 792 Bimetal Bronze Bushing SWPB Bimetallic Bearing (steel+cooper+teflon) BPW Bimetal Bush
- 100000 Piece / Pieces per Month
- shanghai ningbo shenzhen changsha etc
- T/T Credit Card
- JUM-01 / 02 Sliding Bearing Lined Film Sleeve 10 12 16 20
- Linear Sliding Film Plastic Durable Bearing Parts RJMP Series
- Linear Bearing JUM-01 / 12/16/20/25/30/35/40/50 Fixed Seat
- Slewing Bearing Roller Spacer Roller Spacer R Type
- Custom made large adapter sleeve bearing withdrawal sleeve
- RJUM-01-02-10/12/16/20/25/30/35/40 Plastic Sleeve Sliding Bearing Bushing
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | DYB, JIASHAN DINGYI BEARING,DINGYI AND JINTAI | Model Number: | DYB300 |
Type: | Other, flanged,sleeve,washer, bimetal self-lubricating bearings grooves indentations clinch lock | Material: | Bimetal, bi-metal,bi metal,double metal,steel, Steel CuPb10Sn10 PTFE CuSn4Pb24 CuPb24Sn AlSn20Cu CuPb30 |
Product Description
Bi Metal Bush with flange SAE1010 SAE 792 Bimetal Bronze Bushing SWPB Bimetallic Bearing (steel+cooper+teflon) BPW Bimetal Bush
Introduction:
Model | Material | Photo | International Mode |
DYB300 | TYPE: FLANGE, WASHER, SLEEVE
BIMETAL BUSHING
BI-METAL BUSHES
|
JF-800,JF800,SJ,JF
| |
DYB301
|
Steel+Bronze alloy(CuPb10Sn10)+PTFE
| SJ,JF | |
DYB302
|
Steel+Bronze alloy(CuPb10Sn10)
|
SJ,JF | |
DYB303 | Steel+Bronze alloy(CuSn4Pb24) |
SJ,JF
| |
DYB304 | Steel+Bronze alloy(CuPb24Sn) | SJ,JF | |
DYB306 |
Steel+Alloy stage(AlSn20Cu) |
SJ,JF
| |
DYB307 |
Steel+Bronze alloy(CuPb30)
|
SJ,JF | |
DYB308 | Steel+Bronze alloy(CuPb10Sn10) | SJ,JF | |
Supply All Various Of Bushing Bearing For 15 Years! | |||
8 Years Gold Supplier In Alibaba! | |||
Contact Person | Email id | Skype id | |
Ms. Susan Shi | susan3397 |
DYB300 Bimetal Bushing Technical Data:
Items | Value | Unit |
Maximum Operating Temperature Tmax-greased | 150 | °C |
Maximum Operating Temperature Tmax-oil lubricated | 250 | °C |
Minimum Operating Temperature Tmin | -40 | °C |
Maximum Static Load Psta,max | 300 | N/mm2 |
Maximum Dynamic Load Pdyn,max | 140 | N/mm2 |
Maximum Sliding Speed V-greased | 2.5 | N/mm2 * m/s |
Maximum PV Factor-greased | 2.8 | N/mm2 * m/s |
Coefficient of friction f-greased | 0.05-0.12 | |
Coefficient of friction f-oil lubricated | 0.04-0.12 |
TECHNICS DESIGN
JF bimetal bearings are widely used in oil lubricating situations. Normally under low speed and oil lubricating situations assemble with grease and work with adding oil periodically, such as suspension, steeping ball joints, brake pedal joints, redirector, connecting rod, slide part punch, etc.
APPLICATION FEATURES
The bearings surface are sintered with CuPbSn10, CuPb24Sn4, CuPb30, CuSn6Zn6Pb3 or AlSn20Cu. The chemical changes of inner alloy layer can make the bearings work well under various load presses, different working temperatures and sliding speeds.
PHYSICAL CHARACTERSTICS OF JF MATERIAL
Performance | Data | |
Load capacity P | Static load | 150N/mm2 |
Max line speed V | Dry friction | 0.4m/s |
Oil lubrication | 5m/s | |
PV value limit | Dry friction | 2.2 N/mm2.m/s |
Oil lubrication | 10 N/mm2.m/s | |
Friction coef u | Dry friction | <2.2 |
Oil lubrication | <0.08 | |
Alloy Hardness | HB30-90 | |
Alloy material | CuPb10Sn10, CuPb24Sn4, CuPb30, CuPb24Sn,AlSn20Cu,CuSn6Zn6Pb,etc |

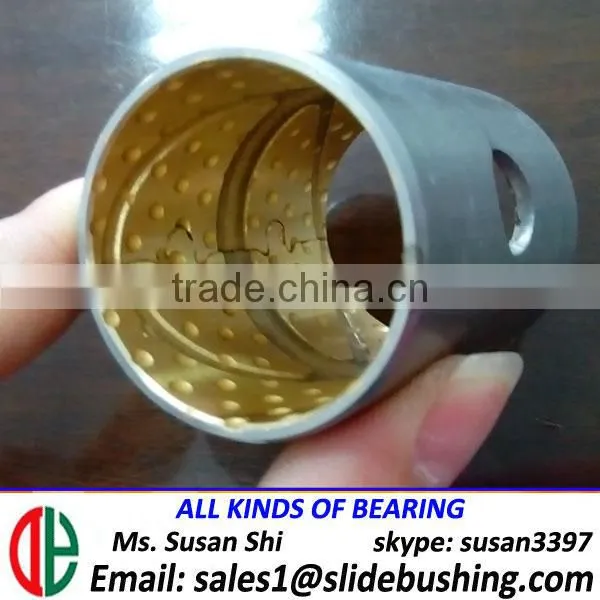

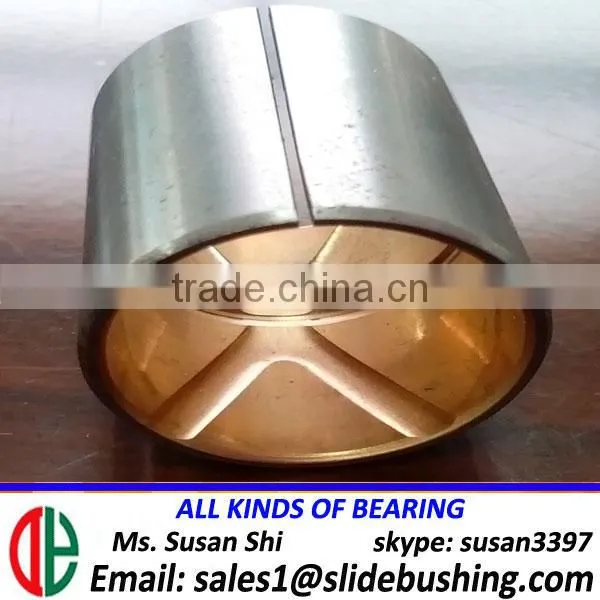

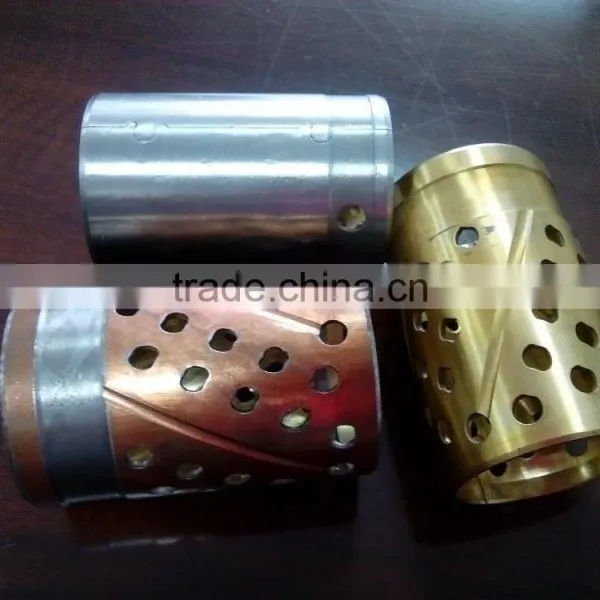

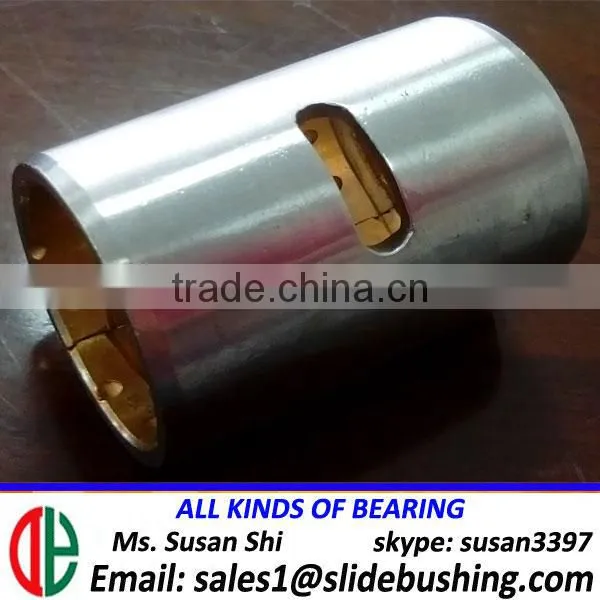

DYB300 Bimetal Bushing Photo:
DYB300 Bimetal Bushing Drawing and Size:
Flanged Bush Dimensions:
Factory shows:
We Supply All Various Of Bushing Bearing For 15 Years !
We Are 8 Years Gold Supplier In Alibaba !
Please Contact Me For Get Catalogue & Inquiry !
