US$ 0.3 - 50 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DYB, JIASHAN DINGYI BEARING
Model Number:
DYB300 / LB-800 HT-625,MSP,DF-800 BIMET-BMT
Contact Supplier Request Quote Chat Now
Jiashan Dingyi Interaction Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai ningbo shenzhen changsha etc
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name DYB, JIASHAN DINGYI BEARING
Model Number DYB300 / LB-800 HT-625,MSP,DF-800 BIMET-BMT
Type Other, flanged,sleeve,washer, bimetal self-lubricating bearings grooves indentations clinch lock
Material Bimetal, bi-metal,bi metal,double metal,steel, Steel CuPb10Sn10 PTFE CuSn4Pb24 CuPb24Sn AlSn20Cu CuPb30

GGB-SZ SP SY BIV-MET BIZ BIA Bimetal SWPB Bushing BMT-LMB BW-LMB TFPSWB AST800 Bush Steel Copper Bronze Bearing

Product Description



Introduction:

Model

Material


International Mode

DYB300

TYPE: FLANGE, WASHER, SLEEVE



BIMETAL BUSHING



BI-METAL BUSHES



 GGB-SZ SP SY BIV-MET BIZ BIA Bimetal SWPB Bushing BMT-LMB BW-LMB TFPSWB AST800 Bush Steel Copper Bronze Bearing



JF-800,JF800,SJ,JF





DYB301





Steel+Bronze alloy(CuPb10Sn10)+PTFE



  GGB-SZ SP SY BIV-MET BIZ BIA Bimetal SWPB Bushing BMT-LMB BW-LMB TFPSWB AST800 Bush Steel Copper Bronze Bearing

SJ,JF



DYB302





Steel+Bronze alloy(CuPb10Sn10)



 GGB-SZ SP SY BIV-MET BIZ BIA Bimetal SWPB Bushing BMT-LMB BW-LMB TFPSWB AST800 Bush Steel Copper Bronze Bearing



SJ,JF



DYB303

Steel+Bronze alloy(CuSn4Pb24)

 GGB-SZ SP SY BIV-MET BIZ BIA Bimetal SWPB Bushing BMT-LMB BW-LMB TFPSWB AST800 Bush Steel Copper Bronze Bearing



SJ,JF



DYB304

Steel+Bronze alloy(CuPb24Sn)

 GGB-SZ SP SY BIV-MET BIZ BIA Bimetal SWPB Bushing BMT-LMB BW-LMB TFPSWB AST800 Bush Steel Copper Bronze Bearing

SJ,JF

DYB306



Steel+Alloy stage(AlSn20Cu)

 GGB-SZ SP SY BIV-MET BIZ BIA Bimetal SWPB Bushing BMT-LMB BW-LMB TFPSWB AST800 Bush Steel Copper Bronze Bearing



SJ,JF



DYB307



Steel+Bronze alloy(CuPb30)



 GGB-SZ SP SY BIV-MET BIZ BIA Bimetal SWPB Bushing BMT-LMB BW-LMB TFPSWB AST800 Bush Steel Copper Bronze Bearing



SJ,JF


DYB308



Steel+Bronze alloy(CuPb10Sn10)

  GGB-SZ SP SY BIV-MET BIZ BIA Bimetal SWPB Bushing BMT-LMB BW-LMB TFPSWB AST800 Bush Steel Copper Bronze Bearing

SJ,JF
Supply All Various Of Bushing Bearing For 15 Years!
8 Years Gold Supplier In Alibaba!
  Contact Person Email id Skype id
  Ms. Susan Shi susan3397





DYB300 Bimetal Bushing Technical Data:



Items Value Unit
Maximum Operating Temperature Tmax-greased 150 °C
Maximum Operating Temperature Tmax-oil lubricated 250 °C
Minimum Operating Temperature Tmin -40 °C
Maximum Static Load Psta,max 300 N/mm2
Maximum Dynamic Load Pdyn,max 140   N/mm2
Maximum Sliding Speed V-greased 2.5 N/mm2 * m/s
Maximum PV Factor-greased 2.8 N/mm2 * m/s
Coefficient of friction f-greased 0.05-0.12
Coefficient of friction f-oil lubricated 0.04-0.12





TECHNICS DESIGN



JF bimetal bearings are widely used in oil lubricating situations. Normally under low speed and oil lubricating situations assemble with grease and work with adding oil periodically, such as suspension, steeping ball joints, brake pedal joints, redirector, connecting rod, slide part punch, etc.



APPLICATION FEATURES



The bearings surface are sintered with CuPbSn10, CuPb24Sn4, CuPb30, CuSn6Zn6Pb3 or AlSn20Cu. The chemical changes of inner alloy layer can make the bearings work well under various load presses, different working temperatures and sliding speeds.



PHYSICAL CHARACTERSTICS OF JF MATERIAL



Performance

Data

Load capacity P

Static load

150N/mm2

Max line speed V

Dry friction

0.4m/s

Oil lubrication

5m/s

PV value limit

Dry friction

2.2 N/mm2.m/s

Oil lubrication

10 N/mm2.m/s

Friction coef u

Dry friction

<2.2

Oil lubrication

<0.08

Alloy Hardness

HB30-90

Alloy material

CuPb10Sn10, CuPb24Sn4, CuPb30, CuPb24Sn,AlSn20Cu,CuSn6Zn6Pb,etc

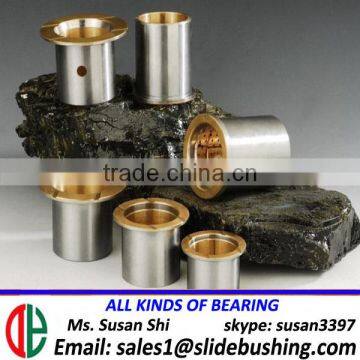

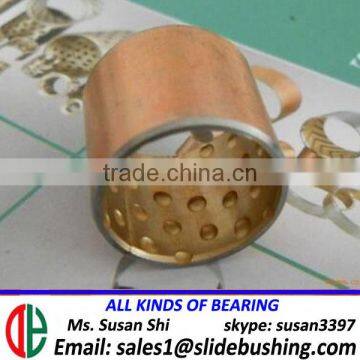

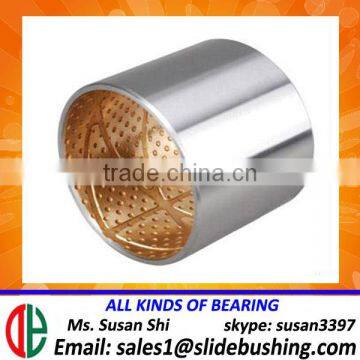

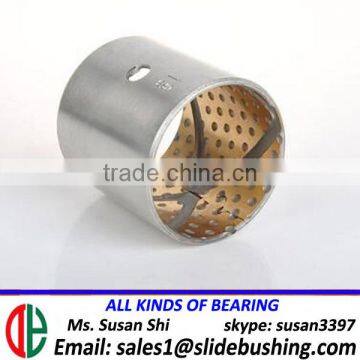

DYB300 Bimetal Bushing Photo:

GGB-SZ SP SY BIV-MET BIZ BIA Bimetal SWPB Bushing BMT-LMB BW-LMB TFPSWB AST800 Bush Steel Copper Bronze Bearing





DYB300 Bimetal Bushing Drawing and Size:





 Flanged Bush Dimensions:





Factory shows:







We Supply All Various Of Bushing Bearing For 15 Years !



We Are 8 Years Gold Supplier In Alibaba !



Please Contact Me-Susan Shi, For Get Catalogue & Inquiry !
