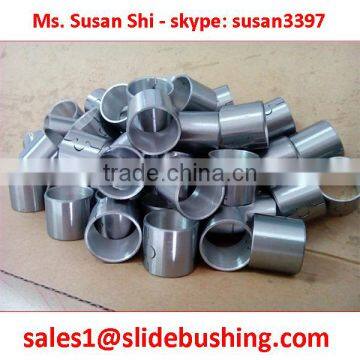

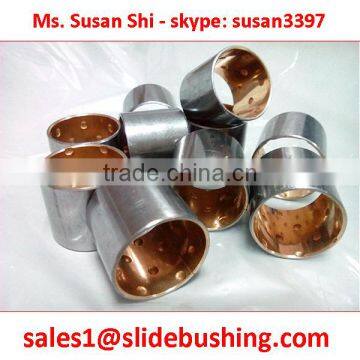

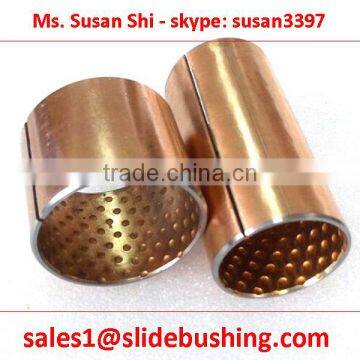

CuPb10Sn10 CuPb6Sn6Zn3 CuPb24Sn4 CuPb30 AlSn20Cu CuSn8Ni Bimetallic Bearings
CuPb10Sn10 CuPb6Sn6Zn3 CuPb24Sn4 CuPb30 AlSn20Cu CuSn8Ni Bimetallic Bearings
Professional Manufacture For All Various Bushing Bearing
SJ/JF DYB300 Bimeta Bush series
TECHNICS DESIGN
JF bimetal bearings are widely used in oil lubricating situations. Normally under low speed and oil lubricating situations assemble with grease and work with adding oil periodically, such as suspension, steeping ball joints, brake pedal joints, redirector, connecting rod, slide part punch, etc.
APPLICATION FEATURES
The bearings surface are sintered with CuPbSn10, CuPb24Sn4, CuPb30, CuSn6Zn6Pb3 or AlSn20Cu. The chemical changes of inner alloy layer can make the bearings work well under various load presses, different working temperatures and sliding speeds.
Balance shaft bearing for truck bed
Leaf spring bearing for truck shock absorber
AlSn20Cu bearing for gearbox, gear bearing
Connecting rod bearing for car connecting rod
BPW bearing for camshaft,truck brake
PHYSICAL CHARACTERSTICS OF JF MATERIAL
Performance |
Data |
|
Load capacity P |
Static load |
150N/mm2 |
Max line speed V |
Dry friction |
0.4m/s |
Oil lubrication |
5m/s |
|
PV value limit |
Dry friction |
2.2 N/mm2.m/s |
Oil lubrication |
10 N/mm2.m/s |
|
Friction coef u |
Dry friction |
<2.2 |
Oil lubrication |
<0.08 |
|
Alloy Hardness |
HB30-100 |
|
Alloy material |
CuPb10Sn10, CuPb24Sn4, CuPb30, CuSn6Zn6Pb,etc |
|
Oil Grooves:
Sleeve Bush Dimensions:
Flanged Bush Dimensions:
DU DYB100 SF-1 Bush series
JDB DYB500 Bush series
FB DYB900 Reference:
FU Sintered Bushing:
Technology & Procedure:
Application Fields:
1,DYB101(DU-SF-1), Widely used in hydraulic vechicles,tobacoo machines,forests machines and so on.
2,DYB 201(DX-SF-2), Widely used in vehicle chassis,forming machine tools,rolling steel industry and so on.
3,DYB 104(Lead Free),Widely used in food machine,pharmaceutical machine,ect.
4,DYB 106,Widely used in auto mobile,motor damper and oilpumps,ect.
5,DYB 500,Widely used in consecutive casting and rolling machines,mine-exploiting equipments,ships,steam engine,ect.
Packing:
1,Print mark logo,
2,Anti-rust oil
3,Plastic films
4,Plastic bag or paper box
5,Carton+Pallet
Shipping:
1,Delivery Time : Usually 15-20 days.Depends on your quantity.
2,Generally, Free of standard size sample within 5 days.
1,We are produce high quality and low price good wear resistance sliding bush factory
2,Our sliding bush passed the ISO TS 16949 .
3,Under the guidance of Pursuit of the excellence & keep improving.
4,We will do our best to provide the quality products and professional sevices.
Jiashan Dingyi Interaction Bearing Co., Ltd. specializes in researching and manufacturing self-lubricating oilless bushes. We can also design and produce various non-standard bearings according to clients' requirements. Qualified products and good service are guidance of our company. We will do our best to develop bushes in different fields to serve clients from at home and abroad.
Comapany R&D Center:
Automatic chamfer machine:
Large various bushings manufacture.
Click the following and view more details
1,DYB100 DU SF-1 Teflon bushings PAP P10
2,DYB200 DX SF-2 POM bushings PAP P20
3,DYB300 SJ/JF Bimetal steel+bronze bushings
4,DYB500 JDB SOB WF Bronze metal graphite bushings
5,DYB900 FB Bronze wrapped oilite bushings
6,DYB FU sintered bronze bush,Oilite metal sintered bushings
7,DYB BTU ball transfer unit, ball caster bearing
8,DYB FZ ball retainer, ball bearing cage
