Specifications
Made in China 2014 new products best bearing China manufacture for hot saleHigh quality cheap price bushing supplier in China

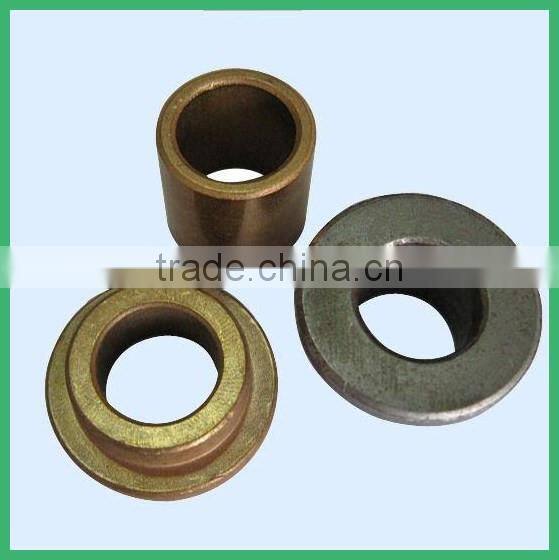

bushing for fan bushing
Company Introduce
- We produce high quality and low price good wear resistance FU bushes
- Our all bush passed the ISO TS 16949 .
- We will do our best to provide the best products and sevices.
Products List
| What kinds of FU bushing we can offer to you | |||||
| 1.FU sintered bronze or iron bushing/ball/plate bushing | |||||
| 2.FU sintered bronze ball bushing | |||||
| 3.FU sintered bronze plate bushing |
Technical Date
| Material | Bronze | Bronze(CuSn6Zn6Pb3/CuSn10) + 12~18%Oil |
| Iron | Fe + 12~18%Oil | |
| Cu-Fe | Cu20Fe80 + 12~18%Oil | |
| Customized is available | ||
| Load capacity | 35~45N/mm2 | |
| Speed limit | 2.5m/s | |
| PV value limit | 2.45N/mm2.m/s | |
| Yeild Strength | 147~294N/mm2 | |
| Hardness | 20~60HB | |
| Friction coef | 0.12~0.2 | |
| Working temperature max. | -80~160°C |
Sintered Bushes Briefing
Sinter Bushing is made by bronze or iron / stainless steel powder, mold pressed under high pressure and then sintered under high temperature, and oil is soaked into the homoeneously spreaded tiny pores of the metal under vacuum. Sintered bushing is widely used for domestic electric equipments, electirc tools, woven machines, chemical engineering machines, automobiles industry,etc.Quality standard based on JIS;DIN;GB;MPIF,etc.
Sintered Bushes Performance
=>Chemical Composition: CuSn6Zn6Pb3, Cu90Sn10,CuSn6Zn6Pb0,Fe,Cu-Fe
=>Working Temperature: Between -100 with +200
=>Density & Gravity: 6.4-7.5g/cm3
=>Oil Impregnation Rate: 18% - 23%
=>Graphite content Rate: 1% - 3%Max
=>Hardness: HB30-75 for Bronze ; HB 35-150 for Iron
Sintered Bushes Advantage
1.With lower wear rate and long lifetime.
2.Provides maintenance free operation & Dry working circustmance.
3.Suited for high static and dynamic load.
4.With low and smoothly coefficient of friction and without stick-slip effects.
5.Suitable for dirty, impact and edge load.
6.Better thermal conductivity property.

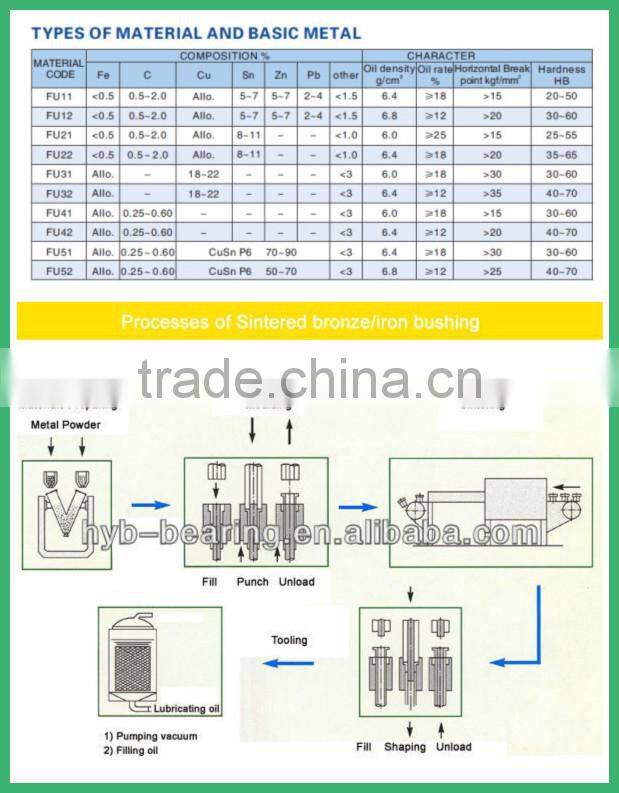

Material and Production flow
All Types

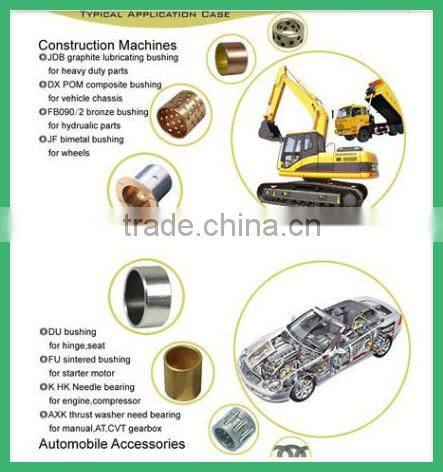

Application
Factory informtion
Inspection
Package
Print mark logo, Anti-rust oil+Plastic films+Plastic bag or paper box+Carton+Pallet
Delivery date: 15-35 days
Free of standard size sample within 5 days
Certificates of ISO/TS16949 and Lead free
Good comments from Clients
Exhibition
We can produce other bushings as follows:
| Other bush we can offer to you | |||||
| 1.DYB100 PTFE composite oilless bushing/washer | |||||
| 2.DYB300(SJ)bimetal self-lubricating bearing | |||||
| 3.DYB401(FR)metal +PTFE composite soft bushing/plate bushing | |||||
| 4.DYB500(JDB)solid lubricating bearing oilless bush | |||||
| 5.DYB200 POM composite sliding bush bearing/washer bushing | |||||
| 6.FZ POM/AL/Cu ball cage retainer bearing oilless bush | |||||
| 7.DYB900(FB) bronze wrapped bushing oilless bush | |||||
| 8.Ball transfer bearing |
