Self-aligning Roller Bearing

Self-aligning Roller Bearing thumbnail-1
Self-aligning Roller Bearing photo-1
US$ 0.04 - 9 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DYB
Model Number:
FB
Contact Supplier Request Quote Chat Now
Jiashan Dingyi Interaction Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo Shenshen Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name DYB
Model Number FB
Type Sleeve
Material bronze, bronze CuPb10Sn10,CuSn6.5P

Specifications

self-aligning roller bearing
2.All kinds of slide bearing
3.Good quality
4.Competitive price

self-aligning roller bearing



  • Introduction

    1.1 Wrapped Bronze bushings are made completely of bronze.

    1.2 They are particularly suitable for applications, which must be re-lubricated due to dirty environments.

    1.3 The sliding surface is provided with lubrication holes, which contribute to the enhanced lubrication performance.

    1.4 This bushing is produced in accordance with ISO 3547 and DIN 1494.



    2. Features and advantages

    2.1 Insensitive to dirty environments

    2.2 Resistant to shock loads and vibrations at slow speeds

    2.3 Good resistance to corrosive conditions



    3. Material

    3.1 Wrapped Bronze is made completely of bronze CuSn6.5 or CuSn8. The bushings are produced from strips, which are then calibrated and wrapped.

    3.2 The working surface is machined and provided with round shaped holes all over its wall.

    3.3 These indentations serve as lubricant reservoirs, where lubricant is initially filled and progressively released during operation.



    4. Main applications

    4.1 Wrapped Bronze bushings are suitable for both radial and axial movements.

    4.2 The bushings are well suited for machinery in dirty environments where shock loads and/or vibrations occur.

    4.3 Examples of applications are:

    4.3.1 Agricultural machinery

    4.3.2 Hoisting equipment

    4.3.3 Construction machinery

    4.3.4 Forest machinery



    5. Lubrication

    5.1 Lubrication improves the sliding properties, reduces wear and prevents corrosion since the metal surfaces of bushing and shaft are separated from each other.

    5.2 Wrapped Bronze bushings to be lubricated with grease or oil are suggested. All commonly used greases can be used.

    5.3 Seals are recommended when the bearing is to be used in an aggressive environment



 Technical Data



Material

FB090

Bronze(CuSn8Pb/ CuSn6.5Pb)

FB091

Bronze(CuZn31Si)

FB092

Bronze(CuSn8Pb/ CuSn6.5Pb)

FB094

Bronze(CuSn8Pb/ CuSn6.5Pb)+Seal Rings

FB090G

Bronze(CuSn8Pb/ CuSn6.5Pb)+Graphite

Load capacity



100N/mm2

Speed limit



2m/s

PV value limit



2.8N/mm2.m/s

Tensile Strength



460N/mm2

Yeild Strength



260N/mm2

Hardness



90~150HB

Mating axis required

Hardness

>=50HRC

Roughness

Ra=0.4~1.0

Friction coef



0.05~0.2

Working temperature max.



150°C
  • Oil holes

self-aligning roller bearing

  • Tolerance

self-aligning roller bearing

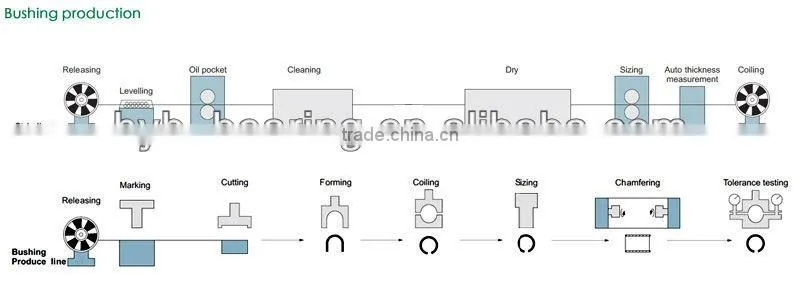

  • Production flow

 self-aligning roller bearing

  • Size list



 self-aligning roller bearingself-aligning roller bearing

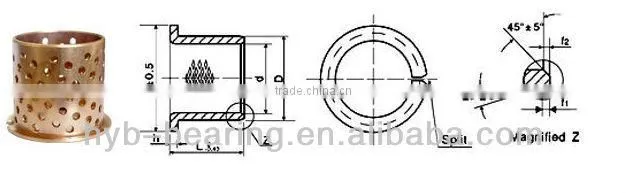

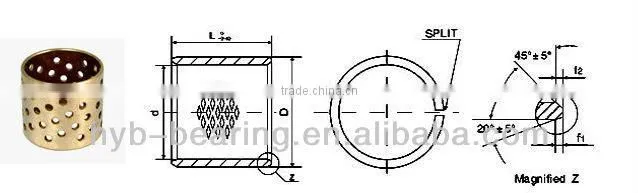

Types:

self-aligning roller bearing

self-aligning roller bearing

  • Typical Application

This type of bushing is widely applied in hoisting machines and other construction machines, automobiles, tractors,
trucks, machines tools and some mineral engines. It can be fabricated into bushes, half bearings, flanged bushes, trust
washers, spherical bearing and so on.

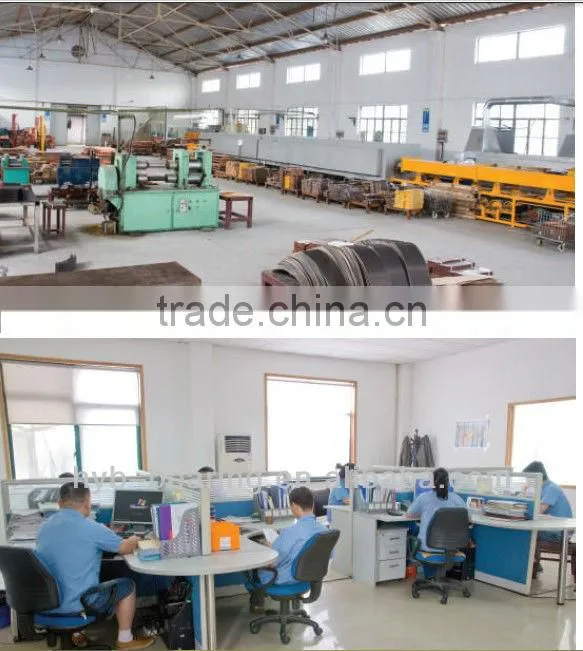

  • Factory informtion

Admin Office

self-aligning roller bearing

workshops



self-aligning roller bearingAutomatic chamfer machine

self-aligning roller bearing

Inspection

self-aligning roller bearingself-aligning roller bearing

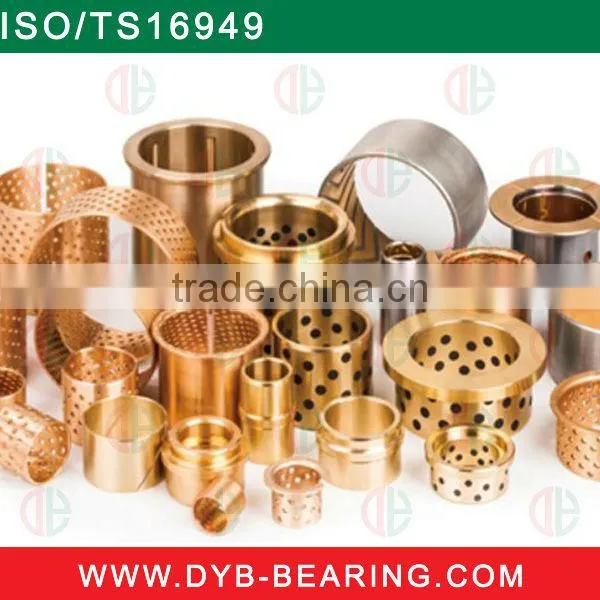

  • We are supplying full lines of slide bushings:



SF-1(du) oilless bearing bushing (PTFE Composite)

SF-2(dx) slide bearing bushing (POM Composite)

FB090(FB090G) bronze bushing

FB092 bronze bushing

JDB,JFB solid graphite lubricating bushing

JF bi-metal bushing

FU sintered bronze or iron bushing

FZ POM/Al/Cu ball cage retainer

 self-aligning roller bearing



  • ISO/TS16949 certification

self-aligning roller bearing
