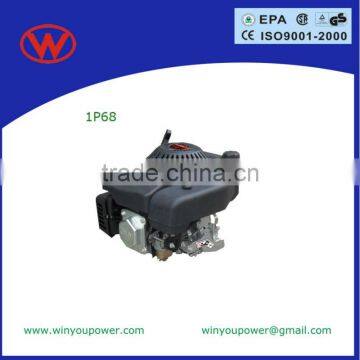

5.5 horse power petrol vertical shaft engine 1P68
- 200 Unit / Units per Month
- chongqing
- T/T
You May Like
-
2 inch diesel water pump 170F diesel engine
-
2v78FE twin cylinder engine 22hp/15hp for 8500w/10kw
-
WY1P61 vertical gasoline engine for sale
-
sand and dry land ploughing equipment for egypt customer
-
Deep hoe blade hand tractor for wasteland and dry land
-
ditching plow gear driven rotary tiller for vegetable soil work
Product Details
Usage | Other, power for general machines | Fuel | Gasoline | |
Stroke | 4 Stroke | Cylinder | Single Cylinder | |
Cold Style | Other, Air-cooled | Start | Kick Start | |
Place of Origin | Chongqing, China | Brand Name | winyou | |
Model Number | 1P68 |
Product Description
Specifications
5.5 hp outputvertical shaft engine type
ohv ,recoil
displacement 163cc
Specifications :
Model | 1P60FV-C | 1P64FV-C | 1P68FV-C | 1P70FV-C |
Engine type | 4-stroke ,25″ inclinded,single -clinder,air-cooled | |||
BorexStroke (mm) | 60x42 | 64x42 | 65x42 | 70x45 |
Displacement(ml) | 118 | 135 | 139 | 173 |
Compression Ratio | 8.0:1 | 8.0:1 | 8.0:1 | 8.5:1 |
Theoretical Maximum Output Power | 2.8kw/3600rpm | 3.7kw/3600rpm | 4.0kw/3600rpm | 4.3kw/3600rpm |
Rated output power | 1.8kw/3600rpm | 2.3kw/3600rpm | 2.5kw/3600rpm | 3.0kw/3600rpm |
Horse Power | 4Hp | 5Hp | 5.5Hp | 6Hp |
Max Torque | 5.2N.m/3000rpm | 6.6N.m/3000rpm | 6.8N.m/3000rpm | 9.0N.m/3000rpm |
Ignition system | Non-contact Transistorized Magneto(TCL) | Non-contact Transistorized Magneto(TCL) | Non-contact Transistorized Magneto(TCL) | Non-contact Transistorized Magneto(TCL) |
Start System | Recoil Start | Recoil Start | Recoil Start | Recoil Start |
Air Cleaner | Semi-dry type | Semi-dry type | Semi-dry type | Semi-dry type |
Fuel Tank Capacity | 1.8L | 1.8L | 1.8L | 1.7L |
Fuel Consumption | ≤395g/kw.h | ≤420g/kw.h | ≤420g/kw.h | ≤395g/kw.h |
Oil Capacity | 0.6L | 0.6L | 0.6L | 0.6L |
Dimension (LXWXH)mm | 485x405x460 | 485x405x460 | 485x405x460 | 485x405x460 |
Net Weight | 12KG | 12KG | 12KG | 13KG |
Company Introduction
We are a specialized factory to supply gasoline engines,diesel engines,gasoline tillers,diesel tillers,gasoline water pumps,diesel water pumps,gasoline Generators and grass cutters etc . Please contact us for more details at
www. http://cqweiyou.en.china.cn/
PRODUCTS ADVANTAGES:
1.10 years of manufacturing expenrience in the field of general machineries
2.Professional engineers and test equipments to ensure the quality of each machine
3. Factory direct selling at competitive prices
4. OEM service is available
5. Fast and efficient delivery service
6. Strictly quality control system
COMPANY INTRODUCTION :
Chongqing Winyou Power Co,.Ltd is one of the leading professional manufacturer of general machineris including engines(gas and diesel),power tillers (gas/diesel),water pumps(gas/diesel),generaters and grass cutters as well as other agricultural machines. Our products sell well in 30 countries of the world,including America,Europ,Africa,Midle East,Southeast Asia etc,enjoy a good reputation domestic and overseas .
Contact Us
- Chongqing Winyou Power Co., Ltd.
- Contact nameSolchy Song Chat Now
- Phone0086-23-63225878
- AddressNo. 13, Fengxi Road, Caijiagang Town
