Home > Products > 4hp - 9hp Tiller/Cultivators > WY500 rotary cultivator with tilling scope800-1000mm

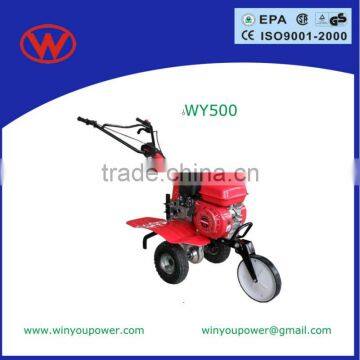

WY500 rotary cultivator with tilling scope800-1000mm
- 150 Unit / Units per Month
- chongqing
- T/T
You May Like
Product Details
| Condition | New | Type | Farm Cultivator | |
| Power Type | Gasoline | Certification | ce,epa,iso9001 | |
| Use | cultivating,tilling,furrowing,ploughing | Place of Origin | Chongqing, China | |
| Brand Name | winyou | Model Number | WY500 | |
| Warranty | one year with spare parts |
Product Description
Specifications
Tilling Scope:800-1000mmTilling depth:150-300mm
Engine type:gasoline engine ,7.0hp
Recoil/key start
Alluminum trans
Technical Data:
| Tiller | Model | WY360 | WY400 | WY500 |
| Tilling Scope(mm) | 360 | 550 | 800-1000 | |
| Tilling Depth (mm) | 200 | 150-250 | 150-300 | |
| Transmission Type | Belt | Gear | Belt | |
| Transmission Oil(L) | 0.2 | 0.6 | 0.95 | |
| Wheel Type | / | / | 3.5-6 | |
| Gear Shifting | 0,1 | 0,1 | 0,1,2,-1 | |
| Gear Speed (rpm) | 128 | 139 | 0/82/113/61 | |
| Gasoline Engine | Engine Model | WY1P65FV | WY1P70FV | WY170F |
| Engine Type | 4-stroke ,25″ inclinded single -clinder,air-cooled | |||
| Displacement (ml) | 139 | 173 | 212 | |
| BorexStroke (mm) | 65x42 | 70x45 | 70x56 | |
| Compression Ratio | 8.0:1 | 8.5:1 | 8.5:1 | |
| Theoritical Maximum Output Power | 4.0kw/3600rpm | 4.3kw/3600rpm | 5.2kw/3600rpm | |
| Rated Output Power | 2.5kw/3600rpm | 3.0kw/3600rpm | 4.2kw/3600rpm | |
| Horse Power (Hp) | 5hp | 6hp | 7hp | |
| Max Torque | 6.8N.m/3000rpm | 9.0N.m/3000rpm | 11.5N.m/3000rpm | |
| Ignition System | Non-contact transistorized Mangneto(TCL) | |||
| Start Mode | Recoil Start | Recoil Start /Electric Start | ||
| Air-cleaner | Semi-dry type | Semi-dry type | Semi-dry type /oil bath type | |
| Fuel Tank Capacity (L) | 1.8 | 0.6 | 3.6 | |
| Oil Capacity (L) | 0.6 | 1.8 | 0.6 | |
| Fuel Comsuption | ≤420g/kw.h | ≤395g/kw.h | ≤395g/kw.h | |
| Packing Detail | Dimension(mm) | 700x390x700 | 695x545x580 | 840x540x660 |
| N/G.W (KG) | 34/36 | 32/35 | 73/84 | |
Show Details:
Tools for your choice :
Company Introduction
We are a specialized factory to supply gasoline engines,diesel engines,gasoline tillers,diesel tillers,gasoline water pumps,diesel water pumps,gasoline Generators and grass cutters etc . Please visit our websites at
www. http://cqweiyou.en.china.cn/
Why you should choose us :
1.10 years of manufacturing expenrience in the field of general machineries
2.Professional engineers and test equipments to ensure the quality of each machine
3. Factory direct selling at competitive prices
4. OEM service is available
5. Fast and efficient delivery service
6. Strictly quality control system
COMPANY INTRODUCTION :
Chongqing Winyou Power Co,.Ltd is one of the leading professional manufacturer of general machineris including engines(gas and diesel),power tillers (gas/diesel),water pumps(gas/diesel),generaters and grass cutters as well as other agricultural machines. Our products sell well in 30 countries of the world,including America,Europ,Africa,Midle East,Southeast Asia etc,enjoy a good reputation domestic and overseas .
