Home > Products > 4hp - 9hp Tiller/Cultivators > 6.0HP Diesel Front Tine Tiller

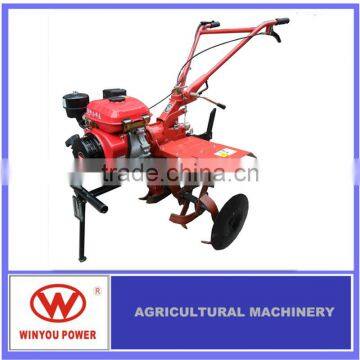

6.0HP Diesel Front Tine Tiller
- 150 Unit / Units per Month
- chongqing
- T/T
You May Like
Product Details
Condition | New | Type | Farm Cultivator | |
Power Type | Gasoline | Certification | CE/EMC | |
Use | tilling the land | Place of Origin | Chongqing, China | |
Brand Name | WINYOU | Model Number | 1000e |
Product Description
Specifications
Power cultivator1.6.0 HP diesel engine
2.3 Fwd+1 Rev,gear transmission
3.Adjustable arm,CE+ISO certificate
specifications :
diesel cultivator,gasoline/diesel power tiller parameters
Model No. | WY1000D | WY1000E | WY1100A | WY1100B/E | |
Tilling scope (mm) | 800-1000 | 800-1000 | 800-1100 | 800-1100 | |
Tilling depth (mm) | 150-300 | 150-300 | 150-300 | 150-300 | |
Transmission type | Gear | Gear | Gear | Gear | |
Transmission oil (L) | 1.0L | 1.0L | 1.1 | 1.1 | |
Transmission Material | Aluminum + Cast iron | Aluminum + Cast iron | Aluminum + Cast iron | Aluminum + Cast iron | |
Gear Shifting | 0,1,2,3,-1 | 0,1,2,3,-1 | 0,1,2,-1 | 0,1,2,-1 | |
Diesel Engine | |||||
Engine model | WY173F | WY176F | WY178F | WY186F | |
Engine Type | Single-cylinder, Air-cooled, Diesel Engine | ||||
Displacement (cc) | 284 | 308 | 296 | 406 | |
Bore×Stroke(mm) | 73 x68 | 76x68 | 78x62 | 86x70 | |
Horse Power (HP) | 6 | 7 | 5.5 | 9 | |
Max power output(HP/rpm) | 4.41(6)/3000 | 5.15(7)/3000 | 4.0(5.5)/3600 | 6.3(9.0)/3600 | |
Starter | Manual start/electric start | ||||
Max torque(N•m/rpm) | / | / | 4.4kw/3600 | 6.6kw/3600 | |
Fuel tank capacity (L) | 4 | 4 | 3.5 | 5.5 | |
Oil capacity (L) | 0.9 | 0.9 | 1.1 | 1.65 | |
Packing Details | |||||
Carton Dimension(mm) | 800x540x800 | 800x540x800 | 1060x560x900 | 1060x560x900 | |
N/G•W(kg) | 93/401 | 93/104 | 115/135 | 115/135 |
The cast iron gear box :
6.0hp diesel engine 173F for 1000e
Our tillers are easy to operate :
Tilling Blades and Plows for your choice :
Rubber wheels/Iron Wheels:
Standard Packing:
mini gasoline rotary tiller machine/ diesel rotary tiller machine/diesel farm rotocultivator package
Our other products : gasoline engine,diesel engine,gasoline water pumps,diesel water pumps ,gasoline tillers,diesel tillers,gasoline generators ,grass cutters :
