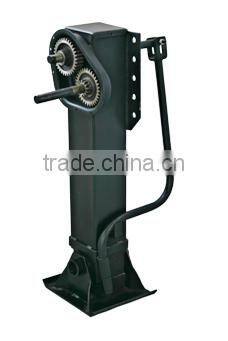

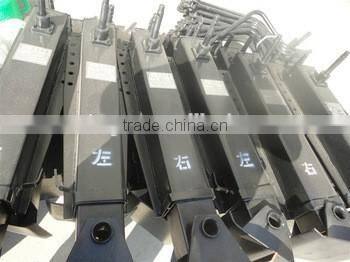

Truck Accessories Landing Gear 30 T China Supplier

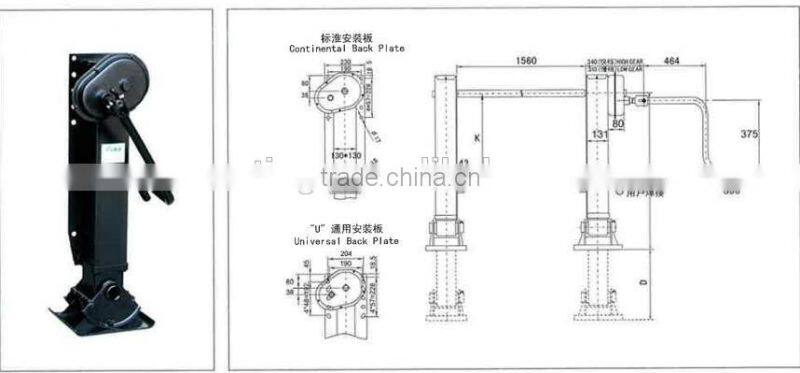

Specificaion of landing gear-1
| Model | ZR 25T | ZR 28T | ZR 30T |
|
Static load capacity (T) |
80 | 80 | 80 |
|
Lifting Capactiy (T) |
25 | 28 | 30 |
|
Travel max (”) |
14 17 19 | 14 17 19 | 14 17 19 |
|
High Gear (mm) |
6 | 7.5 | 7.5 |
|
Low Gear (mm) |
0.67 | 0.83 | 0.71 |
|
Assembly Height (mm) |
980 | 980 | 990 |
| Standard weight | 100 | 102 | 108 |

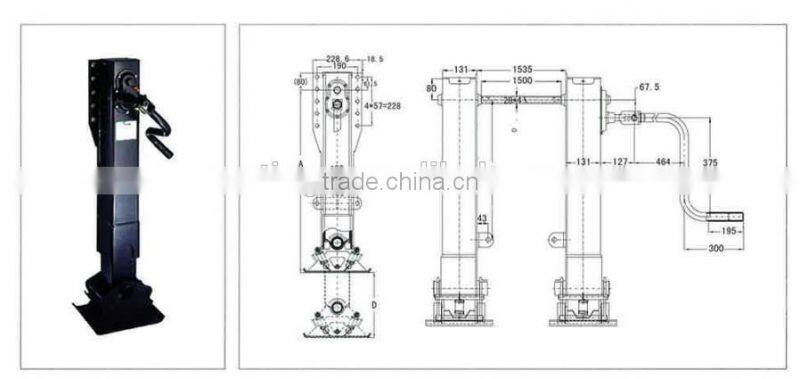

Specification of Landing Gear -2
| Model | ZR25T | ZR28T | ZR35T |
|
Static load capacity (T) |
80 | 80 | 80 |
|
Lifting Capacity (T) |
25 | 28 | 35 |
| Travel Max | 14 17 19 | 14 17 19 | 14 17 19 |
|
High Gear (mm) |
4.33 | 5.42 | 5.42 |
|
Low Gear (mm) |
0.57 | 0.72 | 0.72 |
|
Assembly Height (mm) |
940 | 940 | 940 |
|
Standaro weight (Kg) |
108 | 110 | 116 |
Features:
Dimensions of connection meet TTMS.AAR specification.
Lead screw roll forming extra-duty feature, gears are high grade forgign steel
Lead screw unt applies floating construction,easire for lift and longre persistence, for use, static load test.
lift capactiy test and drop test accord with ABS specification.
Lead screw and unt are entirely boturated in the grease room.Screw will be covered with new grease while it works.

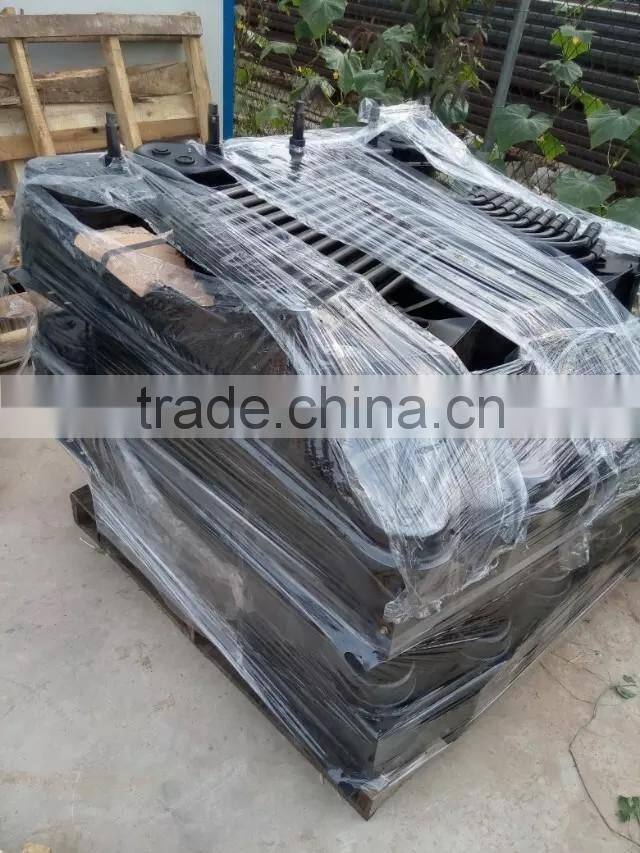

Packing:
10 pairs/ wooden case or pallet. 200 pairs/20" container or according to your request.
trailer Landing leg application & points:
1.The device is use for semi-trailer,trailers,truck.
2.It lift and support trailer when it is separated from tractor.
3.It's also in use for all sorts of trucks that they are secured to work as jack.
4.The quality is up to the standard of American ABS specification.
5.Landing Gear has slow and fast two speed. Please use slow speed when loading. It is easy to operate. Do not use fast speed. It is possible to injure
Comany information: Shijiazhuang Zhong Run Machinery Manufacturing Co.,Ltd
Shijiazhuang Zhong Run Machinery Manufacturing Co.,Ltd local in economic and technical development Zone in Hebei Province.
We are the biggest professional and experienced manufacture of semi trailer parts in China.
Superior quality and good afer-sale service is our forever pursuit.
We export products to all over the world.
Expecting to have long cooperation with you.

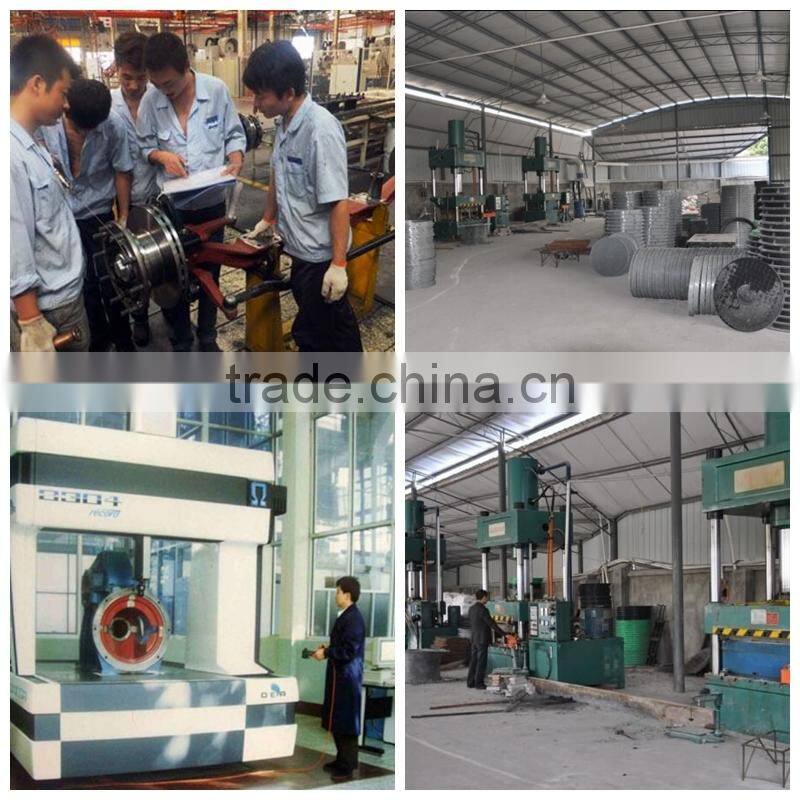

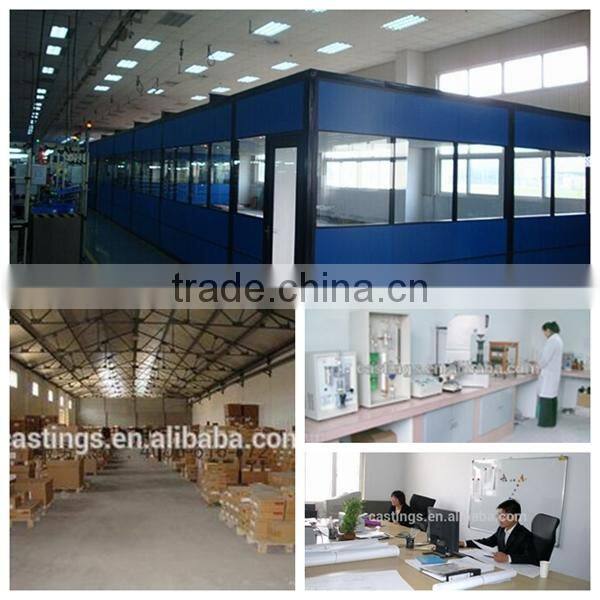

Our workshop
Our trailer axle part you may interested.
— FAQ —
• Why should you choose us?
Powerful factory, giving the competitive price
1.5 years warranty and 7*24 online after-sale service
CE certification
Strong OEM capability available.
• Do you accept small order?
We would like to grow up with all clients whatever big or small.
Any question, please kindly contact me directly anytime.thanks.
