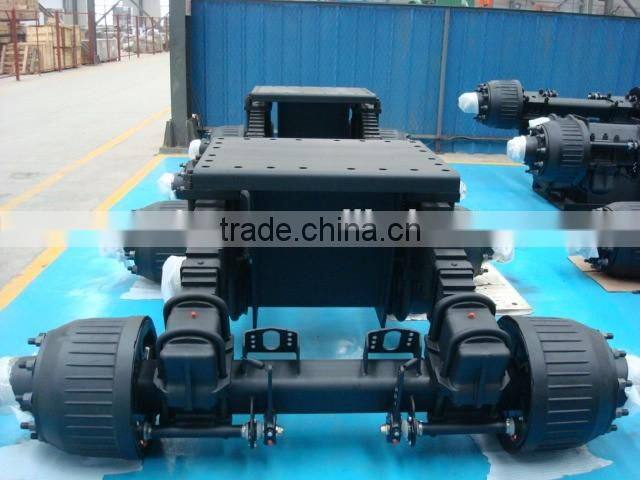

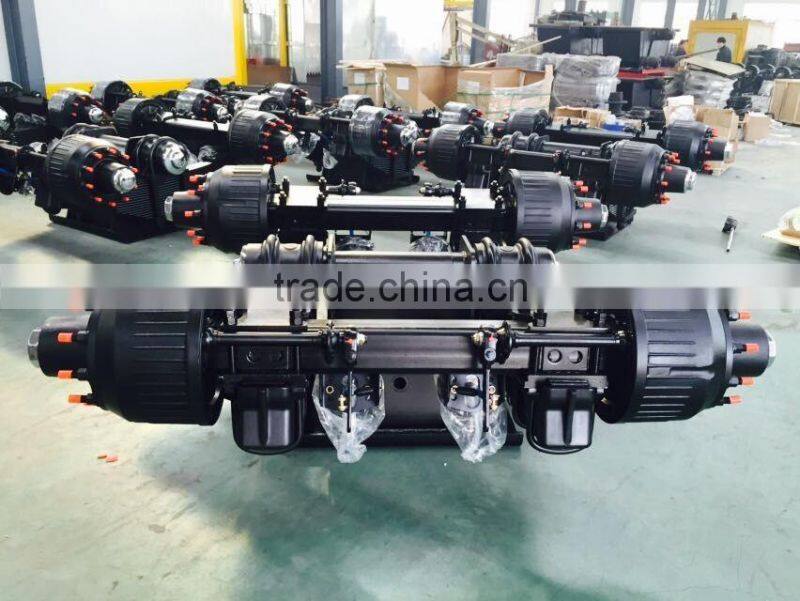

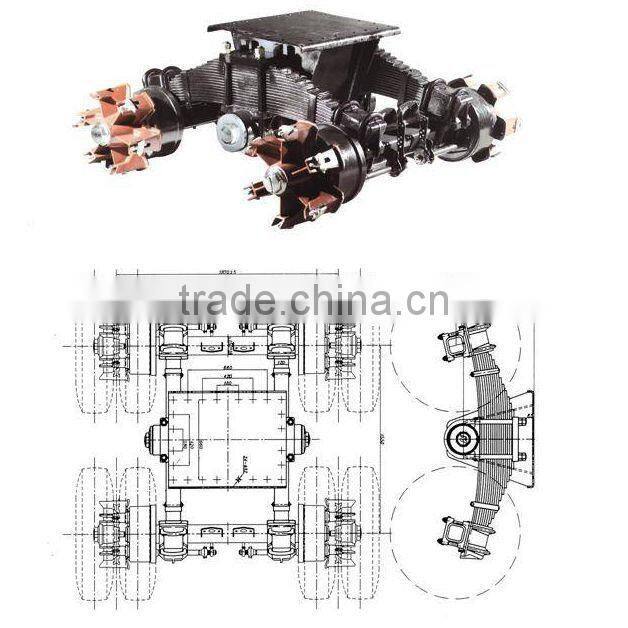

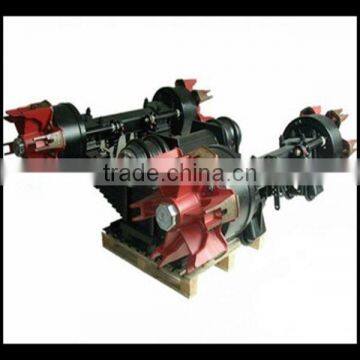

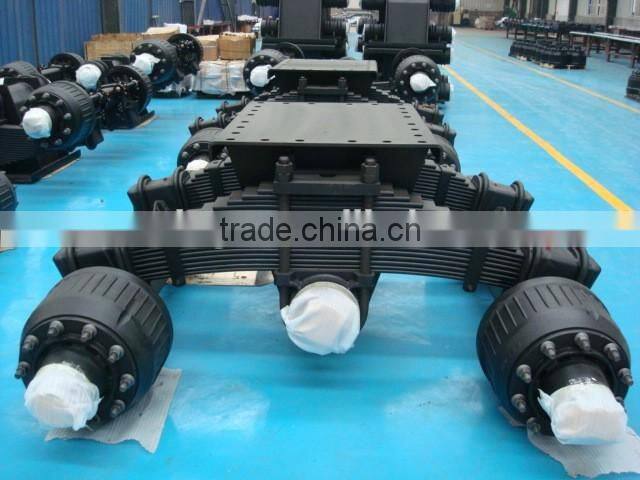

Caravan Trailer Bogie For Trailer Body Spare Parts, Semi Trailer Bogie Suspension
| Type |
BeamRating (kg) |
Weight (kg) |
Bearing Type |
Axle Beam (mm) |
Track (mm) |
Rim Diameter (") |
Axle Distance (mm) |
| ZR-024 | 24000 | 2040 |
33213 33118 |
150*150*14 | 1840 | 335 | 1385 |
| ZR-028 | 28000 | 2492 |
33215 32219 |
150*150*16 | 1840 | 335 | 1550 |
| ZR-032 | 32000 | 2492 |
32314 32222 |
150*150*16 | 1840 | 335 | 1550 |
| ZR-036 | 36000 | 2560 |
32314 32222 |
150*150*20 | 1840 | 335 | 1550 |
| ZR-040 | 40000 | 3000 |
32316 32224 |
150*150 | 1840 | 335 | 1550 |

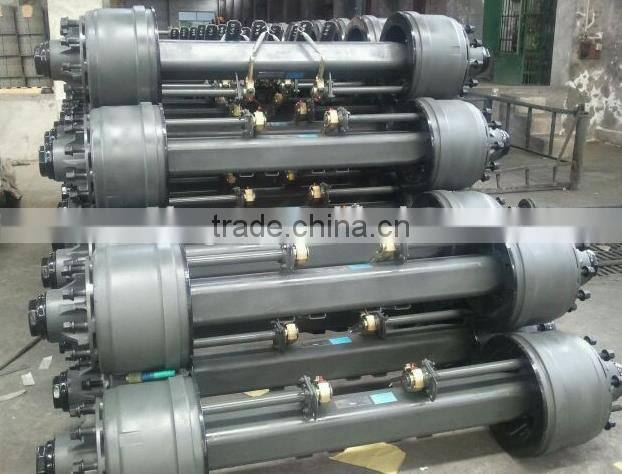

BPW Drum Axles For Truck Trailer
|
Max capacity (kg) |
Cam Brake | TR | Spring Seat Installation | Alxe Beam | Center distance of chamber | studs(mm) | PCD(mm) | Total Length(mm) | weight(kg) |
| 12,000 | S420*180 | 1840 | 980 | S 150 | 422 | 10*M22*1.5 ISO | 335 | 2155 | 370 |
| 12,000 | S420*180 | 1840 | 900 | S 150 | 354 | 10*M22*1.5 ISO | 335 | 2155 | 395 |
| 14,000 | S420*220 | 1840 | 980 | 150 | 354 | 10*M22*1.5 ISO | 335 | 2240 | 430 |
| 16,000 | S420*220 | 1850 | 980 | 150 | 376 | 10*M22*1.5 ISO | 335 | 2240 | 475 |
| 16,000 | S420*200 | 1850 | 900 | 150 | 356 | 10*M22*1.5 ISO | 335 | 2240 | 470 |
| 18,000 | S420*200 | 1850 | 900 | 150 | 356 | 10*M22*1.5 ISO | 335 | 2240 | 480 |
| 18,000 | S420*220 | 1850 | 980 | 150 | 376 | 10*M22*1.5 ISO | 335 | 2240 | 485 |
| 20,000 | S420*200 | 2242 | 1000-1060 | 150 | 260 | 10*M24*2.5 ISO | 335 | 2720 | 745 |
Specification:
| Type |
Beam Rating (kg) |
Weight (kg) |
Bearing type |
Axle Beam (mm) |
Track (mm) |
Rim Diameter (") |
Axle distance (mm) |
| SR24000 | 24000 | 2150 |
33213 33118 |
150*150*14 | 1840 | 24 | 1385 |
| SR28000 | 28000 | 2655 |
33215 32219 |
150*150*16 | 1840 | 24 | 1550 |
| SR32000 | 32000 | 2655 |
32314 32222 |
150*150*16 | 1840 | 24 | 1550 |
Packing: 11 sets per container or according to your request.
We are OEM factory for various of trailer parts, trailer axles, trailer fifth wheel, trailer suspension, trailer landing gear, trailer king pin, and its related parts.

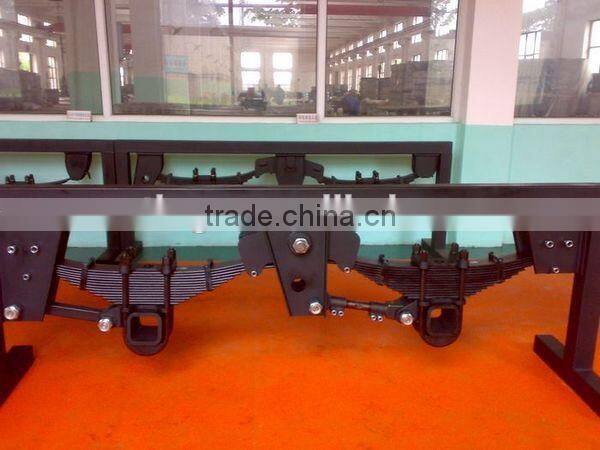

Our Mechanical Suspension for truck trailer
American type trailer suspension
| Model |
Capacity (Ton per axle) |
Width (mm) |
Thickness (mm) |
Leaves | Axle |
| ZR-FW-013 | 13 | 90 | 13 | 10 | square axle |
BPW Type Trailer Suspension
| Model |
Capacity (ton per axle) |
Thickness leaf spring (mm) |
width leaf spring (mm) |
leaves | Axle |
| ZR-BP-135 | 13 | 12 | 100 | 13 | square axle |

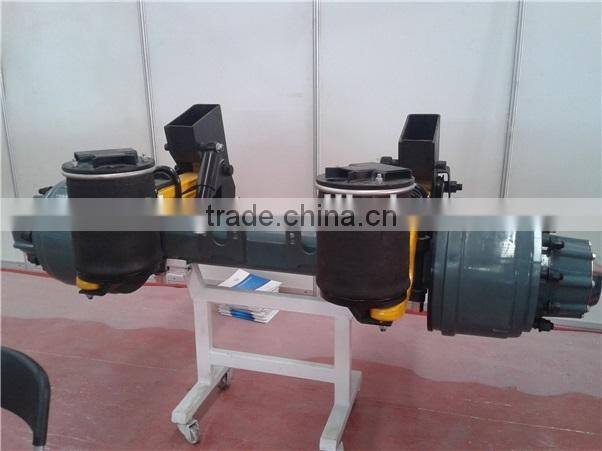

Air Suspension for truck trailer
Packing & shipping
The product will be shipped within 2-3 days after the receipt of your payment.
Comany information: Shijiazhuang Zhong Run Machinery Manufacturing Co.,Ltd
Shijiazhuang Zhong Run Machinery Manufacturing Co.,Ltd local in economic and technical development Zone in Hebei Province.
We are the biggest professional and experienced manufacture of semi trailer parts in China.
Superior quality and good afer-sale service is our forever pursuit.
We export products to all over the world.
Expecting to have long cooperation with you.
Our trailer axle part you may interested.
— FAQ —
• Why should you choose us?
Powerful factory, giving the competitive price
1.5 years warranty and 7*24 online after-sale service
CE certification
Strong OEM capability available.
• Do you accept small order?
We would like to grow up with all clients whatever big or small.
Any question, please kindly contact me directly anytime.thanks.
