Fuwa Type Howo Truck Trailer Axles, Accepet Via Paypal T/T Western Union

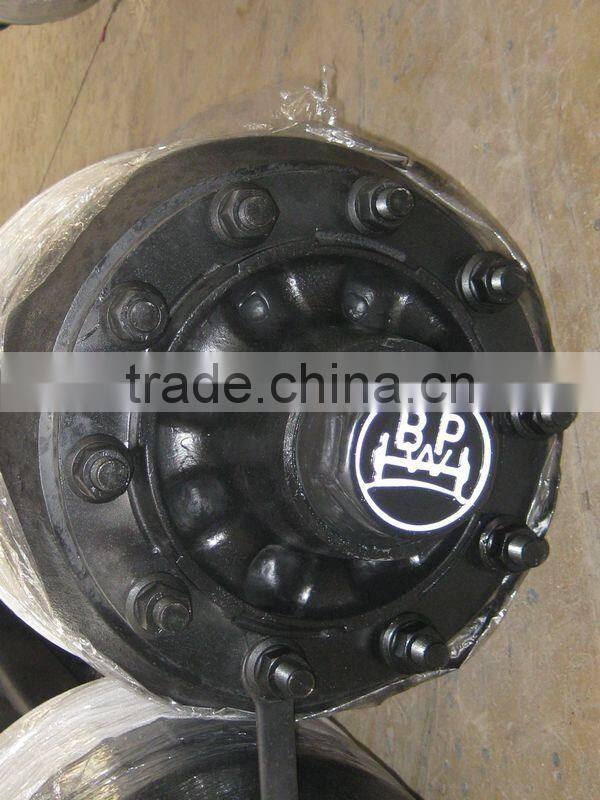

Specification of BPW type trailer axles
| Model |
Capacity (kg) |
Cam Brake (mm) |
Track TR (mm) |
Spring Seat installation (MM) |
Axle Beam (mm) |
Center distance of Chamber (mm) |
Total length (mm) |
Recommended |
Weight (kg) |
Wheel PCD (mm) |
Wheel H (mm) |
| BPW-021 | 12.000 | S420*180 | 1840 | 980 | S150 | 422 | 2155 | 7.50V-20 | 370 | 335 | 281 |
| BPW-022 | 14.000 | S420*180 | 1840 | 980 | S150 | 354 | 2190 | 8.00V-20 | 430 | 335 | 281 |
| BPW-023 | 16.000 | S420*220 | 1850 | 980 | S150 | 376 | 2240 | 8.00V-20 | 475 | 335 | 281 |
| BPW-024 | 18.000 | S420*220 | 1850 | 980 | S150 | 376 | 2240 | 8.00V-20 | 485 | 335 | 281 |
| BPW-029 | 20.000 | S420*200 | 2242 | 1000-1060 | S150 | 260 | 2720 | 8.50V-20 | 745 | 335 | 281 |

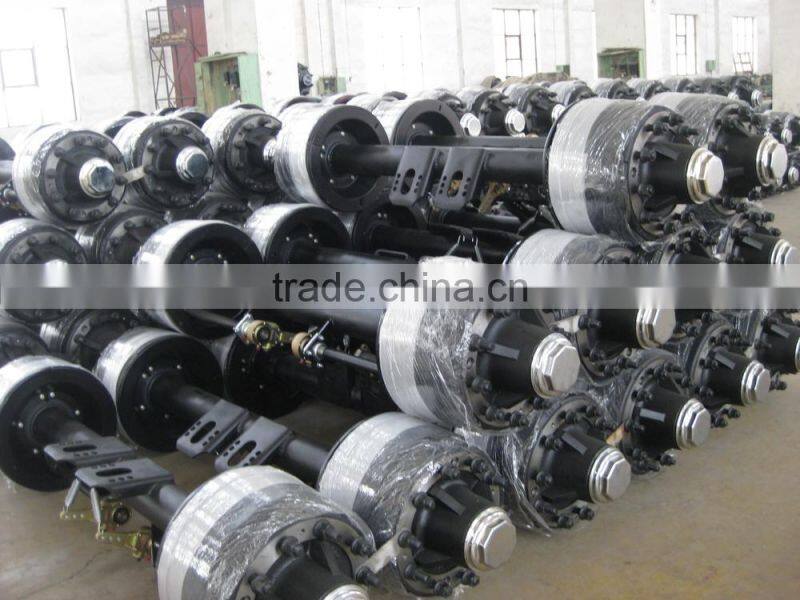

We are OEM factory for various of trailer parts, trailer axles, trailer fifth wheel, trailer suspension, trailer landing gear, trailer king pin, and its related parts.Below is part of our trailer axles:
Specification of York trailer axle
| Brake Size | Wheel fixing | Capacity |
NO.*Size of wheel studs * PCD |
| 420*180 | JAF | 12T | 8*M20*285 |
| 420*220 | ISO | 16T | 10*M22*335 |

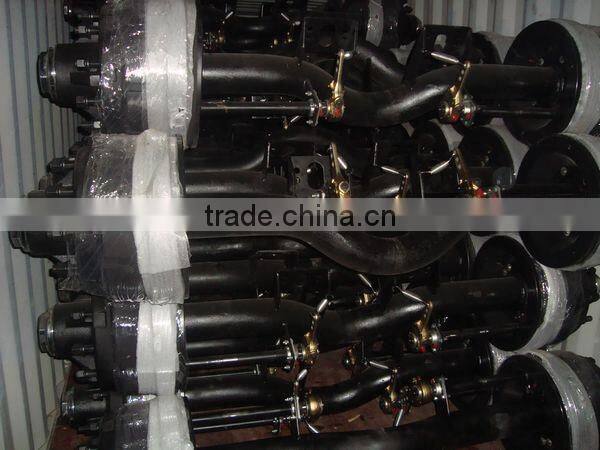

Specification of bent trailer axle.
| Model |
Capacity (kg) |
S cam brake |
Track TR (mm) |
Spring Center (mm) |
Axle Beam (mm) |
center distance of chamber (mm) |
Studs (mm) |
PCD (mm) |
Lotallength (mm) |
weight (kg) |
| B001 | 10.5000/11.5000 | S 420*180 | 1816 | ≥960 | º 127 | 343 | 10*M22*1.5 | 285.75 | 2108 | 325 |
| B003 | 9.000/10.000 | S420*180 | 1816 | ≥960 | º 127 | 343 | 10*M22*1.5 | 335 | 2108 | 325 |
specification of fuwa type trailer axles:
Model |
Capacity (kg) |
Track TR (mm) |
Spring seat installation (mm) |
Axle Beam (mm) |
Center distance of Chamber (MM) |
Total Length (mm) |
Recommended wheel |
Weight (kg) |
S Cam Brake (mm) |
Wheel fixing Studes (mm) |
PCD (mm) |
H (mm) |
| Fuwa-011 | 10.500 | 1820 | ≤435 | 0 127 | 368 | 2165 | 7.50T-20 | 360 | S420*180 | 10*7/8″-11 BSF | 335 | 281 |
| Fuwa-012 | 13.000 | 1840 | ≤455 | S 150 | 388 | 2185 | 7.50V-20 | 365 | S420*180 | 8*M20*1.5 JAP | 335 | 221 |
| Fuwa-013 | 16.000 | 1850 | ≤455 | S 150 | 354 | 2205 | 8.00V-20 | 425 | S420*220 | 10*M22*1.5 ISO | 335 | 281 |

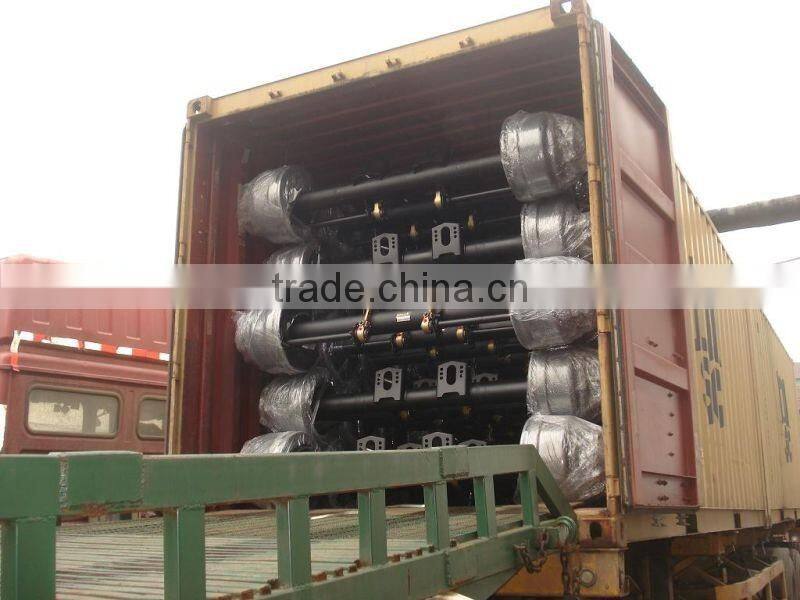

Packing & shipping
The product will be shipped within 2-3 days after the receipt of your payment.
Maintenance method:
1, keep the axle clean when installation, avoid mixed with foreign body
2, Replace lubricating oil regularly.

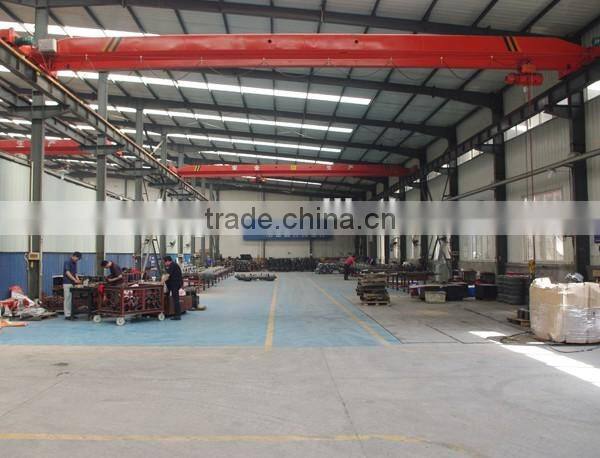

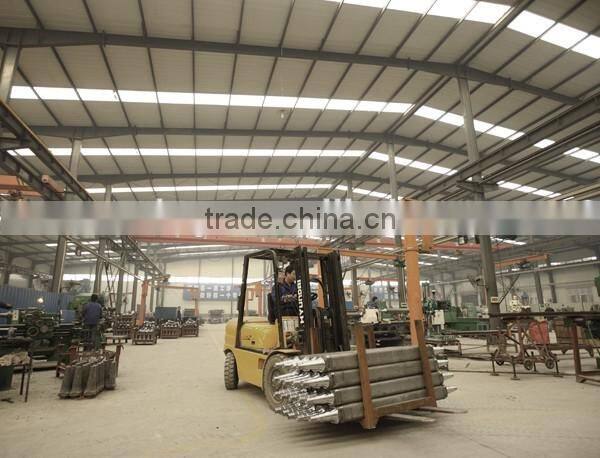

Comany information: Shijiazhuang Zhong Run Machinery Manufacturing Co.,Ltd
Shijiazhuang Zhong Run Machinery Manufacturing Co.,Ltd local in economic and technical development Zone in Hebei Province.
We are the biggest professional and experienced manufacture of semi trailer parts in China.
Superior quality and good afer-sale service is our forever pursuit.
We export products to all over the world.
Expecting to have long cooperation with you.

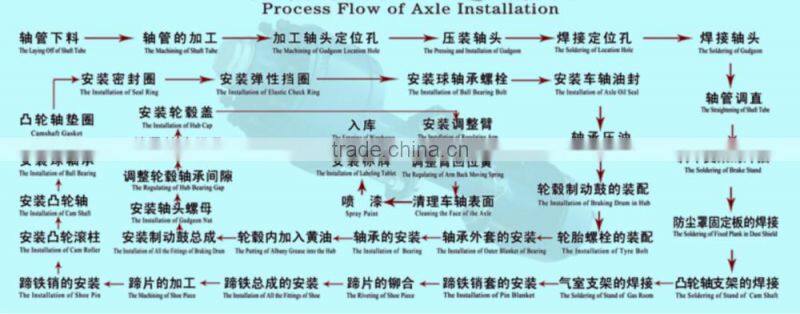

The process flow of axle installation

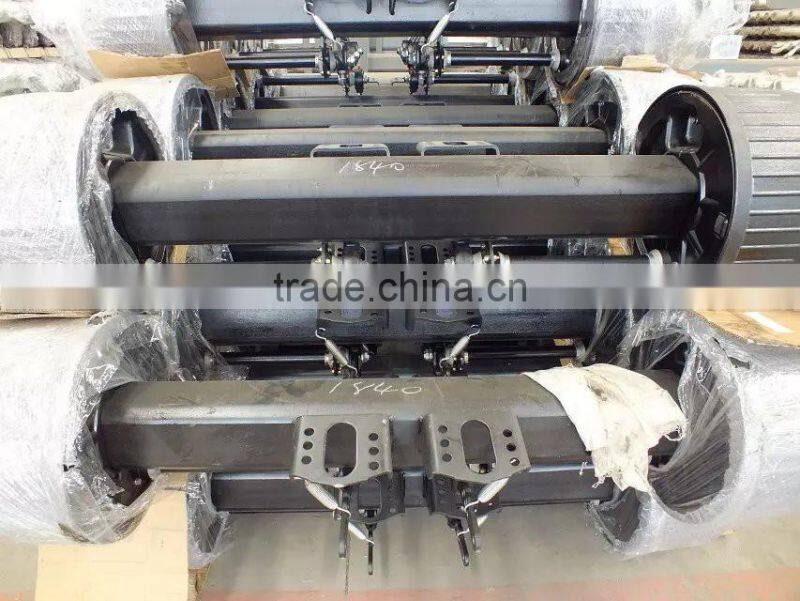

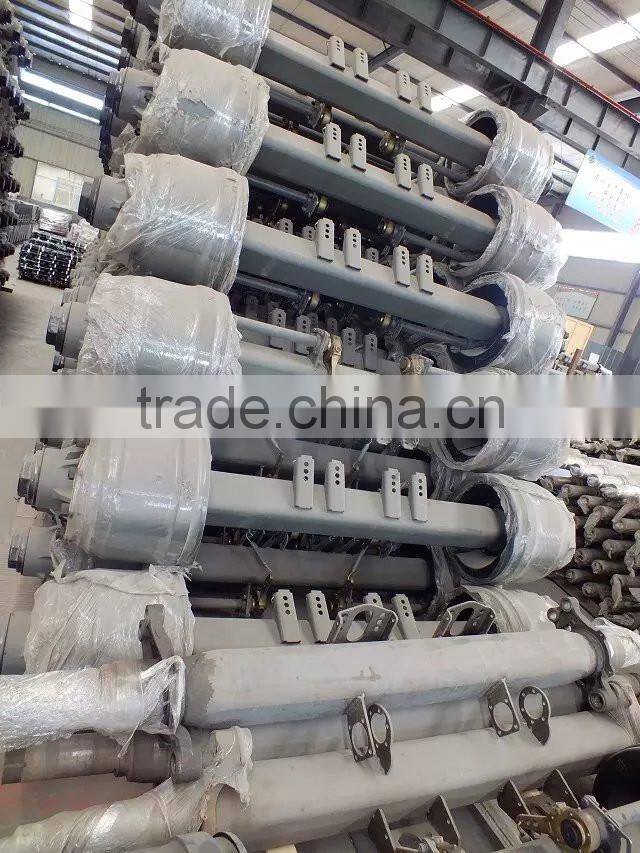

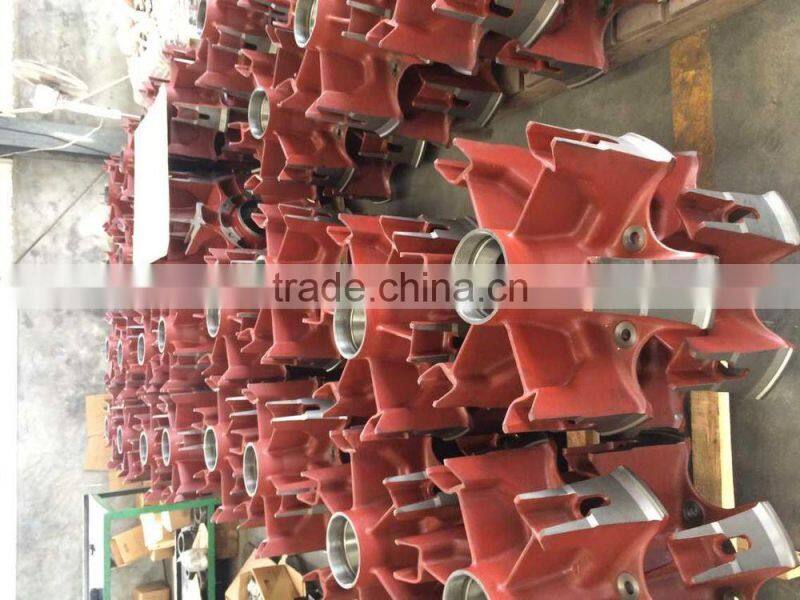

Our trailer axle part you may interested.
— FAQ —
• Why should you choose us?
Powerful factory, giving the competitive price
1.5 years warranty and 7*24 online after-sale service
CE certification
Strong OEM capability available.
• Do you accept small order?
We would like to grow up with all clients whatever big or small.
Any question, please kindly contact me directly anytime.thanks.
