Car Spare Parts Guide Pillar & Bush
- 100000 Piece / Pieces per Month
- Any Chinese Port
- T/T D/P D/A Credit Card PayPal
You May Like
Product Details
Place of Origin | Jiangxi, China | Brand Name | GJ | |
Model Number | As Standard | Type | Other, Sleeve, Sleeve, flange, ring, plate, etc | |
Material | Alloy Copper |
Rust-proof paper / Carton box / PP bag
Product Description

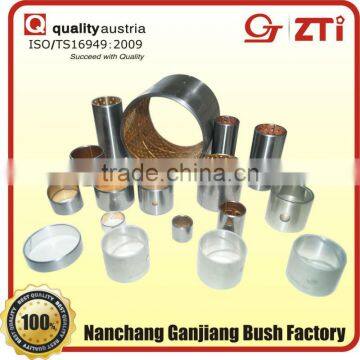

Car Spare Parts Guide Pillar & Bush
Bimetal Bushing is composed of high quality low carbon steel and bronze with the characters of wear high speed, high load capacity, very compact dimensions, low wear. It is most suitable for petrol engines, diesel engines, civil engineering equipment, Lift,air-conditioning and gear boxes, speed boxes, industrial vehicles, steel plate springs, joints etc.
Details For JF Series For Your Reference
JF800 | JF810 | JF820 | JF830 | JF840 | JF850 | JF800G | |
Material | CuPb10Sn10 | CuPb24Sn4 | CuPb24Sn1 | AlSn20Cu | CuPb30 | CuSn6.5P0.1 | CuPb10Sn10 +Graphite |
Alloy hardness (HB) | 60~90 | 45~70 | 40~60 | 30~40 | 30-45 | 60~90 | 60~90 |
Operating Temperature ( °C ) | -40~260 | -50~200 | -50~200 | -40~150 | -40~280 | -40~260 | -40~260 |
Coefficient of friction | ≤0.12 | ≤0.12 | ≤0.12 | ≤0.17 | ≤0.16 | ≤0.14 | ≤0.12 |
Corresponding International Code | SAE-797 JIS-LBC3 GGB-SY GLYCO-66 FEDERAL MOGUL-HF2 DAIDO-L10 ACL-F100 DIN-CuPb10Sn | SAE-799 JIS-LBC6 GLYCO-68 DAIDO-L23 ACL-F250 | SAE-49 ACL-F780 | SAE-783 JIS-AJL GLYCO-74 ACL-F820 | SAE-48 JIS-KJ3 | SAE-797 JIS-LBC3 GGB-SY GLYCO-66 FEDERAL MOGUL-HF2 DAIDO-L10 ACL-F100 DIN-CuPb10Sn | |
Please contact us to get more details(PV,Load,capacity,Speed) | |||||||
Certification | ISO/TS16949:2009 ISO9001:2000
| ||||||
Tolerance | Ø&L Min 0.02mm | ||||||
Packing |
Rust-proof paper / Carton box / PP bag | ||||||
MOQ | 500 pieces | ||||||
Delivery Time | Sample: 7days | ||||||
Remarking
|
Do you want to learn more ahout us? Please click here.
http://ncgjct.en.china.cn/custom_page_1/Factory_Show.html
...
Company Profile

A Company You Can Trust: Nanchang Ganjiang Bush Factory is one of the leading manufacturers of automotive spare parts in the middle of China. We have our own factories and have been providing premium quality OEM bushings and auto rubber parts for over 14 years. We supply qualified auto spare parts, suspension parts (leaf spring bushings, arm bushings, rubber buffers, strut shock mounts, bimetal bushings, etc.), engine parts (conrod bushings, spindle bushings / bearings, camshaft bushings, engine mounts, etc.), rubber parts and sintered bushings ( SF-1, SF-2, JF800, JF-20, JDB, JFB, FB, etc.). Cutting-Edge Service - Customization: We can find the best solutions to your needs, and provide you with professional custom services. All of them are free of charge. Quality and Safety: We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products have attained ISO/TS16949 Certification. Your Success, Our Glory: Our aim is to help customers attain their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us.
