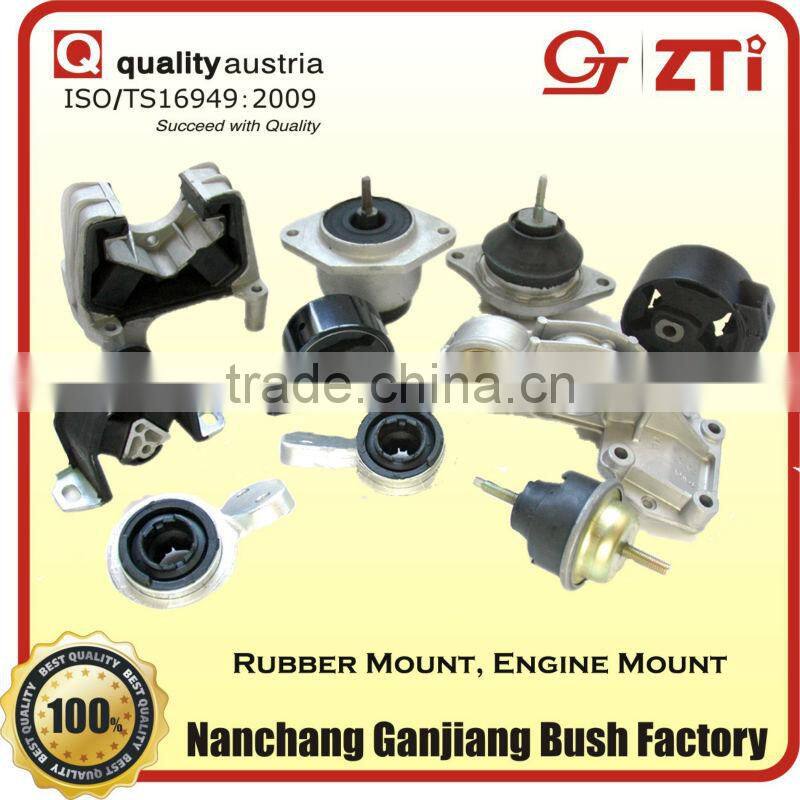

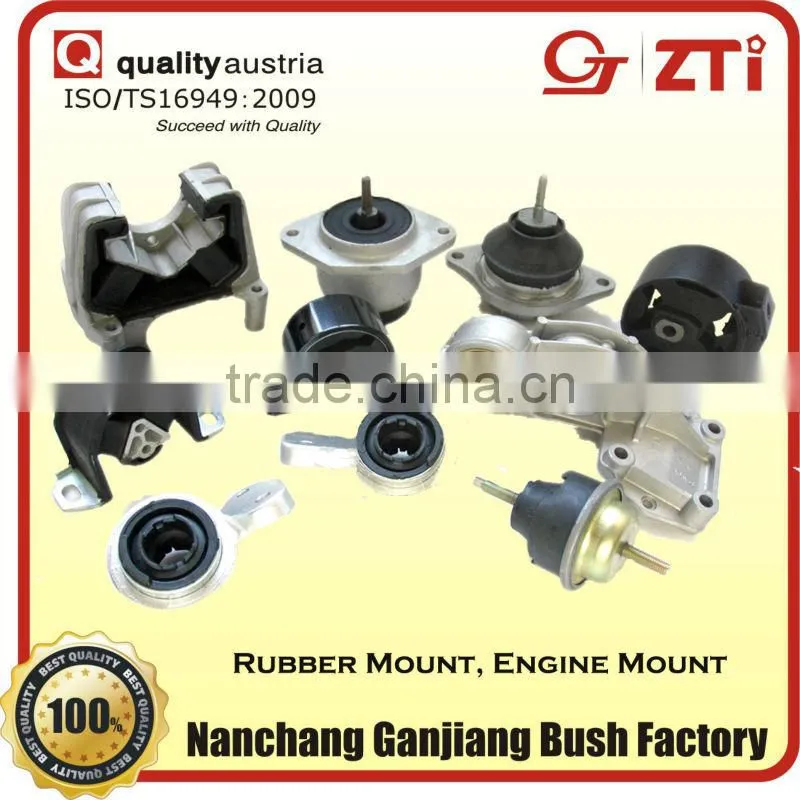

Anti Vibration Engine Mount Rubber Bushing and Rubber Mount, Engine Mounting For TOYOTA Corolla With OEM Grade

Carton Box / PP bag

Specifications

Auto Engine Mount and Rubber Mounting For TOYOTA Corolla
1.One year warranty.
2.Custom-made by sample.
3.Competitive price.

Factory Supply Competitive Price and High Quality

Anti Vibration Engine Mount Rubber Bushing and Rubber Mount, Engine Mounting For TOYOTA Corolla With OEM Grade



Main Products:

Suspension Parts Engine Mount && Rubber Bushing && Bimetal Bushing

Professional Service For You, Custom-made All You Need









Learn More Details For Rubber Parts As Below:





Work Flow In Our Factory







Testing Lab In Our Factory



Details Of Rubber Parts For Your Reference As Below:

Notice: If you need more informations, please feel free to contact us!



Rubber Material	EPDM, SBR, NBR, CR, NR	according to your requirement
Metal Material	DIN, ASTM, JIS, BS, NF, GB	according to your requirement
Characteristic	Ozone resistant,High / Low temperature resistant / Aging resistant / Oil resistant / Insulation / Electric conduction / Elasticity / High tensile strength	according to your requirement
Rubber Hardness	50A-90A	according to your requirement
Surface treatment	parkerising,Polishing,galvanized, electroplating, spraying, and painting and zinc plated and so on	according to your requirement
Certification	ISO/TS16949:2009	OEM Grade
Tolerance	Ø&L Min 0.02mm	according to your requirement
Packing	Carton box / PP bag	according to your requirement
MOQ	500 pieces
Delivery Time	Sample: 7days Mass:15-45days	According to your quantity
Remarking Our factory is specialized in doing OEM/ODM products according to customer's drawings or samples.  Warrenty: 3 years or 50000KM (OEM Grade)     1 years (Marketing)    Any RFQ, Please feel free to send your drawings( CAD, PDF ) For quotation.

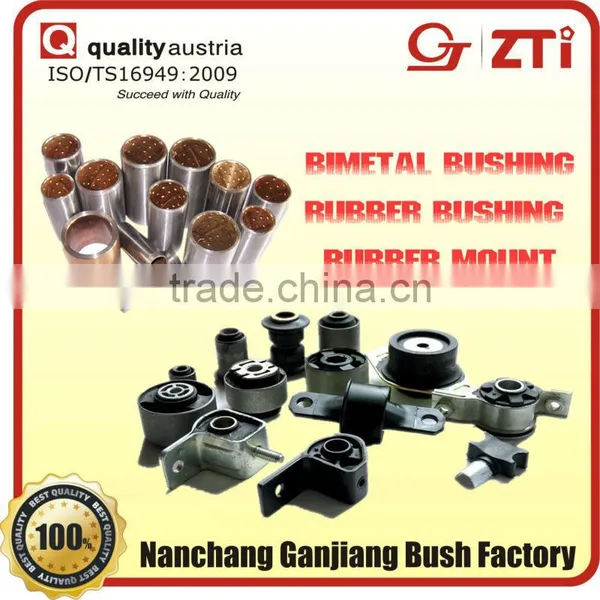

Learn More Details For Bimetal Bushing As Below:



Bimetal Bushing is composed of high quality low carbon steel and bronze with the characters of wear high speed, high load capacity, very compact dimensions, low wear. It is most suitable for petrol engines, diesel engines, civil engineering equipment, Lift,air-conditioning and gear boxes, speed boxes, industrial vehicles, steel plate springs, joints etc.







We also supply Brass Bushing, Self-Lubricating Bushing, Oilless Bushing etc...





Work Flow In Our Factory










Details For JF Series For Your Reference As Below:

Notice: If you need more about other Series, please feel free to contact us!



	JF800	JF810	JF820	JF830	JF840	JF850	JF800G
Material	CuPb10Sn10	CuPb24Sn4	CuPb24Sn1	AlSn20Cu	CuPb30	CuSn6.5P0.1	CuPb10Sn10 +Graphite
Alloy hardness (HB)	60~90	45~70	40~60	30~40	30-45	60~90	60~90
Operating Temperature ( °C )	-40~260	-50~200	-50~200	-40~150	-40~280	-40~260	-40~260
Coefficient of friction	≤0.12	≤0.12	≤0.12	≤0.17	≤0.16	≤0.14	≤0.12
Corresponding International Code	SAE-797 JIS-LBC3 GGB-SY GLYCO-66 FEDERAL MOGUL-HF2 DAIDO-L10 ACL-F100 DIN-CuPb10Sn	SAE-799 JIS-LBC6 GLYCO-68 DAIDO-L23 ACL-F250	SAE-49 ACL-F780	SAE-783 JIS-AJL GLYCO-74 ACL-F820	SAE-48 JIS-KJ3		SAE-797 JIS-LBC3 GGB-SY GLYCO-66 FEDERAL MOGUL-HF2 DAIDO-L10 ACL-F100 DIN-CuPb10Sn
	Please contact us to get more details(PV,Load,capacity,Speed)
Certification	ISO/TS16949:2009   ISO9001:2000
Tolerance	Ø&L Min 0.02mm
Packing	Rust-proof paper / Carton box / PP bag
MOQ	500 pieces
Delivery Time	Sample: 7days Mass:15-45days
Remarking Our factory is specialized in doing OEM/ODM products according to customer's drawings or samples.  Warrenty: 3 years or 50000KM (OEM Grade)     1 years (Marketing)    Any RFQ, Please feel free to send your drawings( CAD, PDF ) For quotation.







ABOUT OUR FACTORY



A Company You Can Trust:
Nanchang Ganjiang Bush Factory is one of the leading manufacturers of automotive spare parts in the middle of China. We have our own factories and have been providing premium quality OEM bushings and auto rubber parts for over 14 years. We supply qualified auto spare parts, suspension parts (leaf spring bushings, arm bushings, rubber buffers, strut shock mounts, bimetal bushings, etc.), engine parts (conrod bushings, spindle bushings / bearings, camshaft bushings, engine mounts, etc.), rubber parts and sintered bushings ( SF-1, SF-2, JF800, JF-20, JDB, JFB, FB, etc.).

Cutting-Edge Service - Customization:
We can find the best solutions to your needs, and provide you with professional custom services. All of them are free of charge.

Quality and Safety:
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products have attained ISO/TS16949:2009 Certification.

Your Success, Our Glory:
Our aim is to help customers attain their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us.
