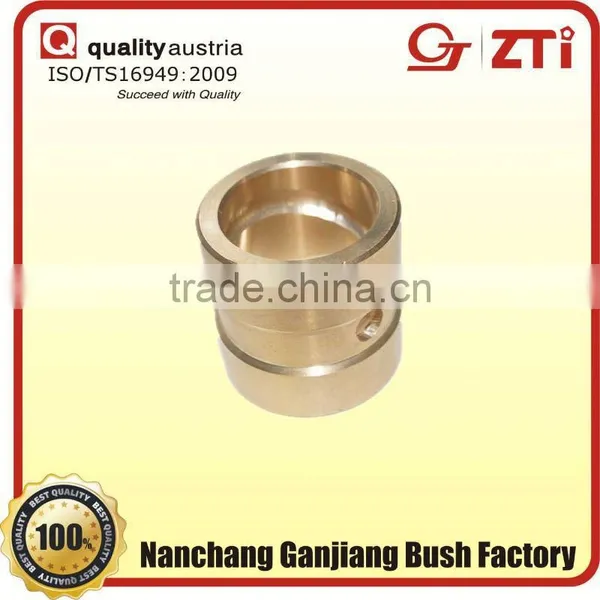

Oilless Bush,brake Bush

Oilless Bush,brake Bush photo-1
US$ 0.01 - 3 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
GJ
Model Number:
As Standard
Payment & Shipping
Payment Methods:
Port of Shipment:
Any Chinese Port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangxi, China
Brand Name GJ
Model Number As Standard
Type Sleeve
Material Alloy Copper

Oilless Bush,brake bush





Bimetal Bushing is composed of high quality low carbon steel and bronze with the characters of wear high speed, high load capacity, very compact dimensions, low wear. It is most suitable for petrol engines, diesel engines, civil engineering equipment, Lift,air-conditioning and gear boxes, speed boxes, industrial vehicles, steel plate springs, joints etc



.

Oilless bushings are applied to metallurgy extensively, automobile, mine, petroleum. Fields like chemical industry, electrical machinery, light industry and machinery, etc.

It is made of cupper, steel or other low carbon materials, which is highly polished. Under oilless bushing, there are several categories, include steel bronze power with PTFE ( SF-1) , steel bronze power with POM (SF-2), bronze wrapped bushings with graphite.



Oilless Bush,brake bush





Our advantage



      our company specilizes in manufacturing rubber bushings, we have many experienced and skilled engineers and workers who have been doing this job for decades of years. The equipments in our factory are also advanced, they are top level machines imported from other developed countries.We have many excellent material suppliers to provide us with top quality material. Our products enjoyed a great reputation among customers around the world, attracted many famous company like AUDI, BENZ to establish long term relationship with us. Till now we have established business relationships with a lot of countries around the world.





After-sales service



    One year warranty of all the products is provided in our company. during one year, if there is any problem with the products, we will be responsible for it. But this seldom happened. If you are not familar with the products, we have experienced engineers to teach you have to use and matain the products, the specification and material of products and so on.Also we have experts to explain to you the manufacture process of the produces.



 customizition



 We can also manufacture products according to your requirements. If you can provide us with pictures or samples, tell us your request.then we can make the same products for you. If you do not have sample or pictures, it does not matter, tell your requirements and the specifications to us, then our engineers will help you with it.

Oilless Bush,brake bush  Oilless Bush,brake bush



Oilless Bush,brake bush







Details For JF Series For Your Reference



 JF800JF810JF820JF830JF840JF850JF800G
MaterialCuPb10Sn10CuPb24Sn4CuPb24Sn1AlSn20CuCuPb30CuSn6.5P0.1

CuPb10Sn10

+Graphite

Alloy hardness

(HB)

60~9045~7040~60 30~40 30-45 60~9060~90

Operating Temperature

( °C )

-40~260-50~200-50~200 -40~150 -40~280 -40~260-40~260
Coefficient of friction≤0.12≤0.12≤0.12 ≤0.17 ≤0.16 ≤0.14≤0.12
Corresponding International Code

SAE-797

JIS-LBC3

GGB-SY

GLYCO-66

FEDERAL MOGUL-HF2

DAIDO-L10

ACL-F100

DIN-CuPb10Sn

SAE-799

JIS-LBC6

GLYCO-68

DAIDO-L23

ACL-F250

SAE-49

ACL-F780

SAE-783

JIS-AJL

GLYCO-74

ACL-F820

SAE-48

JIS-KJ3



SAE-797

JIS-LBC3

GGB-SY

GLYCO-66

FEDERAL MOGUL-HF2

DAIDO-L10

ACL-F100

DIN-CuPb10Sn


Please contact us to get more details(PV,Load,capacity,Speed)

Certification

ISO/TS16949:2009   ISO9001:2000



Tolerance

Ø&L Min 0.02mm

Packing



Rust-proof paper / Carton box / PP bag
MOQ

500 pieces

Delivery Time

Sample: 7days
Mass:15-45days

Remarking

  • Our factory is specialized in doing OEM/ODM products according to customer's drawings or samples.
  • Warrenty: 3 years or 50000KM (OEM Grade)     1 years (Marketing)
  • Any RFQ, Please feel free to send your drawings( CAD, PDF ) For quotation.
