Widely Used Coal Powder Briquette Machine

Widely Used Coal Powder Briquette Machine photo-1
US$ 1,500 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Motor Type:
AC Motor
Power(W):
7.5kw
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Motor Type AC Motor
Power(W) 7.5kw
Place of Origin Henan, China
Brand Name Telon
Model Number TL-360
Dimension(L*W*H) 1200*800*1600mm
Certification CE
Warranty 2 or 3 years
After-sales Service Provided Engineers available to service machinery overseas

Quick Details:



Type:
Briquette Machines
Condition:
New
Production Capacity:
3-5t/h
Power(W):
7.5kw
Place of Origin:
Henan China (Mainland)
Brand Name:
Telon
Model Number:
TL-360
Dimension(L*W*H):
According to different types
Certification:
CE
Warranty:
2-3 years
After-sales Service Provided:
Engineers available to service machinery overseas
Raw Material:
Coal powder, charcoal powder, etc.
Color:
As your demands
Application:
Fuel
Briquettes' diameter:
According to your demands
Briquettes' shape:
Square, round, plum flower, cylinder, etc.
Briquette Size:
25-120mm
Speed of main shaft(r/min):
15-17
The dimension of pressing roll:
360*250mm
Speed Ratio:
1:31.5
Product Name:
Coal ball press machine



Introduction of  coal powder briquette machine



 Briquette machine can press ore powder, metal powder, coal powder, coke powder and other materialsinto ball shape. Because of Mandatory squeeze of the roll, products features of highdensity, high strength, high hardness, high features, and rollers adopt 650mn hard wear resistance materials, which improve rollers' service life greatly.




Application of coal powder briquette machine:



1.Coal powder/coal fine/coal dust

2.Charcoal powder/charcoal fine/charcoal dust

3.Gypsum/Desulfurization Gypsum/quicklime/slaked lime/

4.Activated carbon/carbon black

5.All kinds of metal powder/Manganese/magnesium/copper/iron

6.Iron oxide/aluminum oxide/clay

7.Some other type powder.



Working principle of coal powder briquette machine



 Motive power will transmit to two rollers through the reducer synchronously and make them rotate oppositely. Materials enter into ball mode naturally, with rollers rotation, pressure of materials bearing becomes larger. When arriving at two rollers contact point, materials bearing pressure reaches peak. Under the tremendous pressure, materials become ball shape from powder shape.





Technical Parameters:



Model

Roll  Dia.

*Width(mm)

speed of

main shaft (r/min)

Power

(KW)

Capacity

  (t/h)

TL-360

360*250

18

7.5

4

TL-400

400*280

15

11-15

8

TL-500

500*300

13

18-22

11

TL-650

650*336

13

20-30

18

TL-750

750*400

13

45

25

TL-850

850*500

10

75

35

TL-1250

1250*650

10

130

70

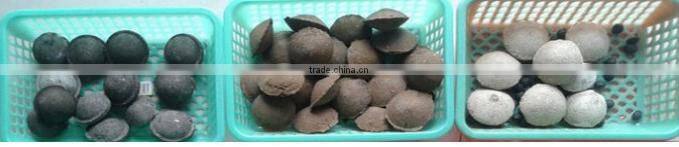

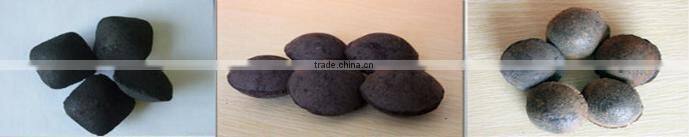

Final Products:
