Ring Die Biomass Pellet Milling Machine

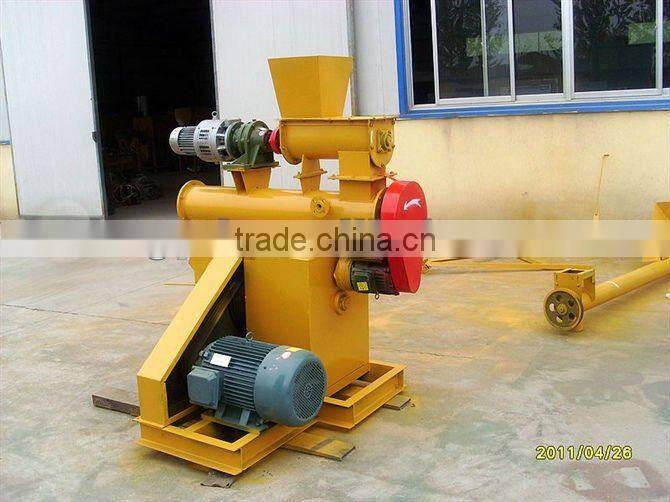

Ring Die Biomass Pellet Milling Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Telon
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name Telon
Model Number TL-P-350
Weight 1500kg

Ring die pellet milling machine

Ring-die biomass pellet milling machine is suitable for large farms and organic herbal medicine and chemical industry etc, and the raw materials contain straw, wood-dust, bamboo powder, cotton wood, peanuts shell, straw, clover, cotton seed shell etc and can mix with all kinds of powder materials. Raw materials water requirement is 15%-18% before granulating. The machine has compact structure, good appearance, high yield, less

consumption, use convenient, reliable performance etc.

Ring Die Biomass Pellet Milling Machine

Features of biomass pellet milling machine

1.Can be used in Stoves and Boilers
2.Flow like a liquid, ideal for automatic systems
3.Improved combustion characteristics over raw material
4.Can be used in small and large scale applications
5.Easy to handle, store and transport



Technical data of straw pellet mill. pellet milling machine

Model

Output(kg/h)

Power(kw)

Particle specification(mm)

Dynamic configuration

Size(mm)

Weight(packaged)(kg)

TL-P-250

500/1000

22+1.5+0.55/22

3-8

Triangle-generation

1650*1500*1550

1000

TL-P-260

600/1500

22+1.5+0.55/22

3-8

Triangle-generation

1650*1500*1550

1200

TL-P-300

800/2000

30+1.5+0.55/30

3-8

Triangle-generation

1750*1500*1600

1500

TL-P-350

1000/3000

30+30+2.2+0.75/60

3-10

Gear box

2300*1500*2200

2000

TL-P-420

2000/5000

90+2.2+1.1/90

3-12

Gear box

2500*1200*2300

3000

TL-P-508

2000/8000

110+2.2+1.1/32

3-15

Gear box

2500*1300*2400

3800

Ring Die Biomass Pellet Milling MachineRing Die Biomass Pellet Milling Machine
