Home > Manufacturing & Processing Machinery > Machine Tools > Grinding Machine > Grinding Machine

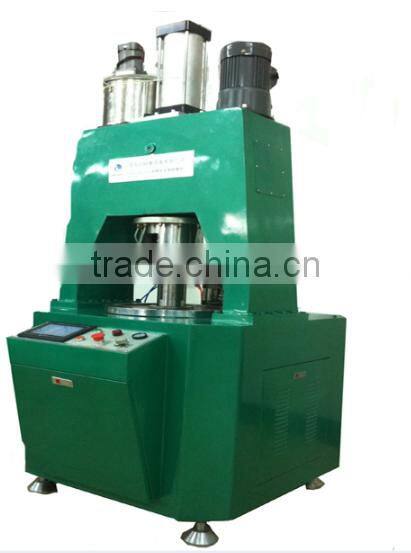

Grinding Machine

Name: Grinding Machine
Brand: Telon
SKU: 140187848
Availability: InStock

US$ 20,000 - 50,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Max. Grinding Diameter:

130mm

Brand Name:

Telon

Contact Supplier Request Quote Chat Now

Gongyi City Telon Industry & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Max. Grinding Diameter 130mm

Brand Name Telon

Model Number TL-380W

Voltage 380V

Power(W) 750W

Dimension(L*W*H) 800*1200*2300mm

Weight 1130kg

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Quick details:

Condition:	New	Type:	Surface Grinding Machine	CNC or Not:	CNC
Max. Grinding Diameter:	120mm	Max. Grinding Length:	40mm	Place of Origin:	China (Mainland)
Brand Name:	Telon	Model Number:	TL-380W	Voltage:	380V
Power(W):	750w	Dimension(LWH):	80012002300mm	Weight:	1130kg
After-sales Service Provided:	Engineers available to service machinery overseas	automatic:	automatic grinding machine	feeding way:	rolling screw
workpiece:	piston ring, bearing ring, valve, seal,ceramic	process material:	metal, nonmetal

Packing & Delivery

Packing details: standard export packing

Delivery dails: single maching by wooden case,production line by containers

Brief introduction of the product

It's designd for grinding parts with two parallel grinding wheels simultaneously. Various high precision and thin parts with parallel side surfaces, no matter they are made in metal or nonmetal material, can be processed. Such as bearing, valve,seal, oil pump vane, piston ring,ceramics,etc.

Technical Parameter:

Model Number	TL-380W	TL-610W	YM-910W
Grinding disc (outer diameter * inner diameter)	Outer dia. 380mm Inner dia.140mm*12t	outer dia. 610mm Inner dia. 200mm*12t	Outer dia. 635mm Inner dia. 240mm*12t
Max processing size	dia.130mm	dia.200mm	dia.280mm
Processing flatness(25mm)	Within ±0.1u	Within ±0.1u	Within ±0.2u
Processing depth of parallelism(25mm)	Within ±0.2u	Within ±0.2u	Within ±0.4u
Workness roughness(quartz material)	Within0.4nm	Within0.4nm	Within0.4nm
Abrasive disk parallelism after shaving	Within ±0.1u	Within ±0.2u	Within ±0.2u
Specification of loose pulley	Dia. 155mm	Dia. 230mm	Dia. 310mm
Number of loose pulley	5	5	5
Revolving speed of sun wheel	0-60rpm	0-60rpm	0-60rpm
Revolving speed of sun wheel	0.4Kw 3-phase 380V	0.75Kw 3-phase 380V	0.75Kw 3-phase 380V
Revolving speed of external gear	0-30 rpm	0-30 rpm	0-30 rpm
External motor power and voltage	0.4Kw 3-phase 380V	0.75Kw 3-phase 380V	0.75Kw 3-phase 380V
The speed of refacing machine	200mm /min	200mm /min	200mm /min
Motor power of refacing machine	750w	750w	750w
Dimension	80012002300mm	100014002400mm	120016502400mm
Weight	1130kg	2100kg	2330kg
