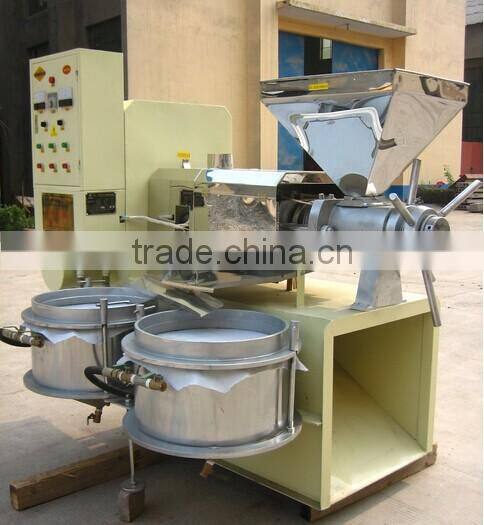

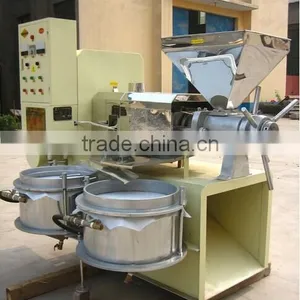

Oil press machine
This machine is very suitable for family using and small scale oil factories. Which can press sesame, olive, cocoa beans, walnuts, almonds, and other high oil crops.
The main spares of oil press machine
1 Electric Box
2 Pump Station
3 Hydraulic Cylinder
4 Piston Lever
The process of oil press machine
1. Before pressing oil seeds, please adjust the temperature and speed(100°C is good)
2. Putting the oil seeds into the feeder
3. Oil is out of the squeezing bolt
4. Using the filter to filter simply crude oil
parameter
| Type | 80 | 100 | 120 | 160 |
| screw diameter | φ 81mm | φ 101mm | φ 120mm | φ 160mm |
| screw speed | 47r/min | 38r/min | 37r/min | 32r/min |
| power | 5.5KW(Y132M-4) | 7.5KW(132M-4) | 11KW(Y132M-4) | 15KW(Y132M-4) |
| vacuum pump | 0.55KW(Y801-4) | 0.75KW(Y802-4) | 0.75KW(Y802-4) | 0.80KW(Y802-4) |
| heater | 2.2KW | 2.2KW | 2.2KW | 2.2KW |
| Capacity | 65-130Kg/h | 140-280Kg/h | 250-400Kg/h | 300-550Kg/h |
| Weight | 880Kg | 1250Kg | 1500Kg | 1800Kg |
| Machine size mm | 1500×1200×1750 | 1700×1300×1850 | 2000×1300×1500 | 2100×1300×1600 |
Gongyi city telon industry and trade co., LTD., founded in 1998, is located in gongyi city, henan province is an export enterprise in China.We won the excellent prize of scientific and technological achievements in zhengzhou and consecutive years awarded the honorary title. As an entity enterprise.
If you have any interest,feel free to contact us
