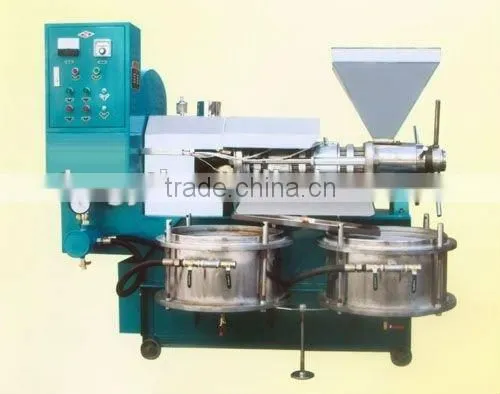

High Reputation Automatic Cold Oil Press Machine
- Qingdao Shanghai
- T/T Money Gram Credit Card PayPal
You May Like
-
Selling Well All Over the World Screw Olive Oil Press Machine
-
Good Use Automatic Seeds Oil Press Machine
-
Best Selling Semi Automatic Oil Press Machinery
-
Small Investment Coconut Screw Oil Press Machine
-
Energy Saving Sunflower Seeds Oil Press Machine
-
Small Investment Screw Sunflower Oil Press Machine
Product Details
| Condition | New | Usage | Peanut Oil | |
| Type | Other, Cold & Hot Pressing Machine | Automatic Grade | Automatic | |
| Production Capacity | 80-800kg/h | Place of Origin | Henan, China | |
| Brand Name | Telon | Model Number | 6YZ | |
| Voltage | 380v | Power(W) | 5.5-30kw | |
| Dimension(L*W*H) | 2100*1680*1750mm | Weight | 700kg, 780 kg | |
| Certification | ce | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
automatic cold oil press machine1. easy to operate
2. Adequate quality
3. The oil yield could

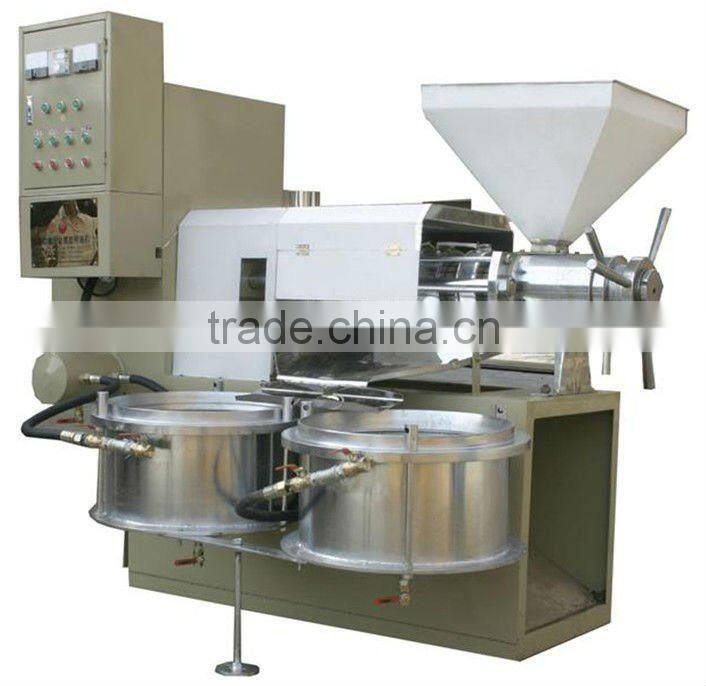

Oil press oil expeller :
This kind of Oil Machine utilizes the screw shaft which is setup with different styles of screws and rotates when machine is running to push the material into chamber. Then the oil is separated out through the extrusion of pressing worm and pressing ring.
Rawmaterials:

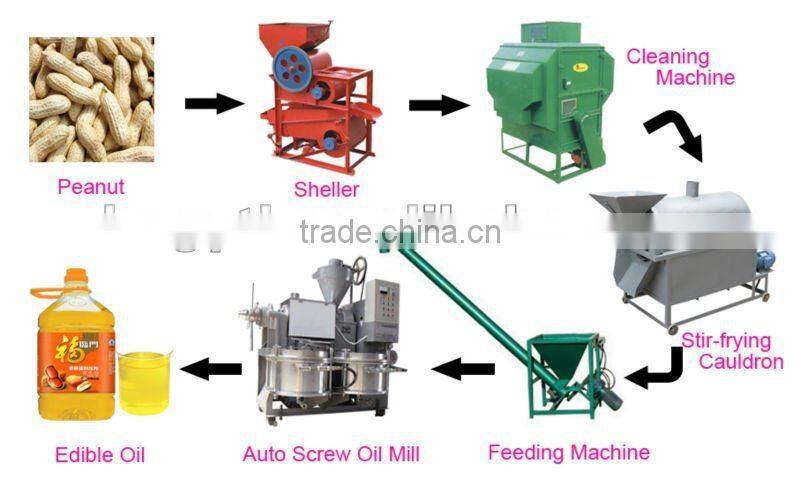

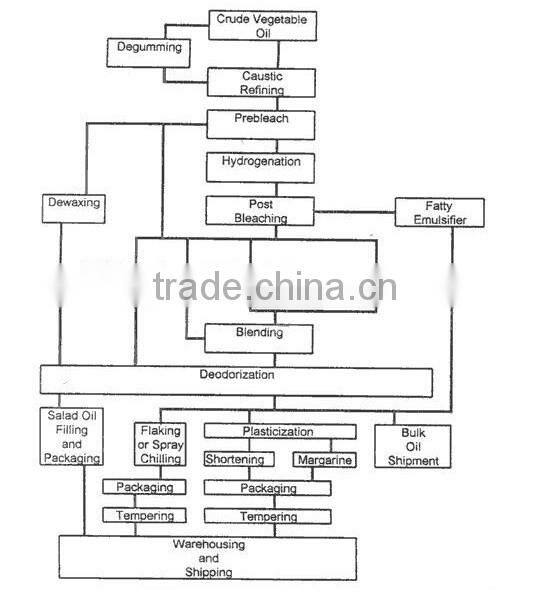

Process:
Data:
Technical parameter/ Model | TL-80 | TL-100 | TL-120 | TL-150 | |
Diameter of worm section | 80mm | 100mm | 120mm | 150mm | |
Rotary speed of worm section | 50-60 r/min | 40 r/min | 36 r/min | 45 r/min | |
Diameter of inscribed circle of press boring | 82mm | 102mm | 122mm | 152mm | |
Equipped force | Main frame | 5.5 KW | 7.5 KW | 11 KW | 15 KW |
Vacuum pump | 0.55 KW | 0.75 KW | 1.1 KW | 1.1KW | |
heater | 3 KW | 3.5 KW | 4 KW | 6KW | |
Capacity | 80-150kg/h | 150-250kg/h | 260-400kg/h | 230-500kg/h | |
Weight | 780kg | 1100kg | 1500kg | 1800kg | |
Overall dimension (L*W*H) | 1800*1300*1750 | 1980*1450*1800 | 2100*1680*1750 | 2300*1700*1800 | |
Materials/ Parameter | Oil productivity(%) | Material bread thick | Residual oil rate(%) |
Sesame | 45-55 | 1.0-1.5 | ≤6 |
Peanut | 40-50 | 0.5-2.0 | ≤6 |
Rapeseed | 30-45 | 0.8-1.8 | ≤6 |
Sunflower seed | 32-42 | 1.0-1.5 | ≤6 |
Soybean | 12-18 | 0.8-1.5 | ≤6 |
Cotton seed | 11-25 | 1.0-2.0 | ≤6 |
Walnut | 42-52 | 0.8-1.5 | ≤6 |
Flax | 32-38 | 1.0-1.8 | ≤6 |
Tea seed | 26-38 | 1.0-2.0 | ≤6 |
Pictures:
Welcome to vosit our factory!
