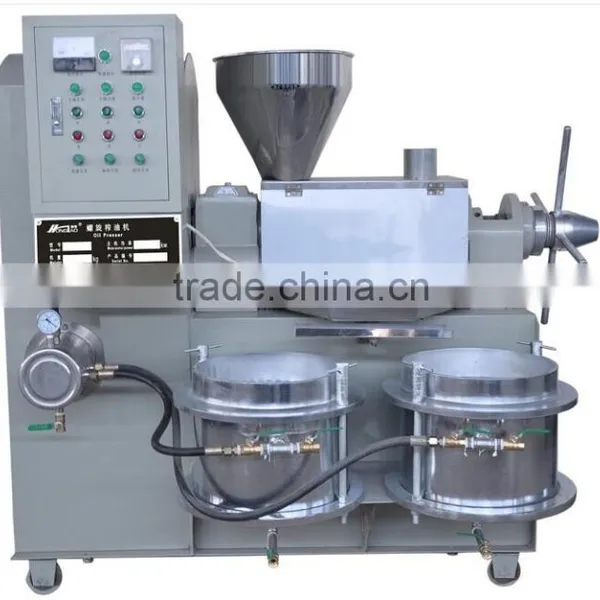

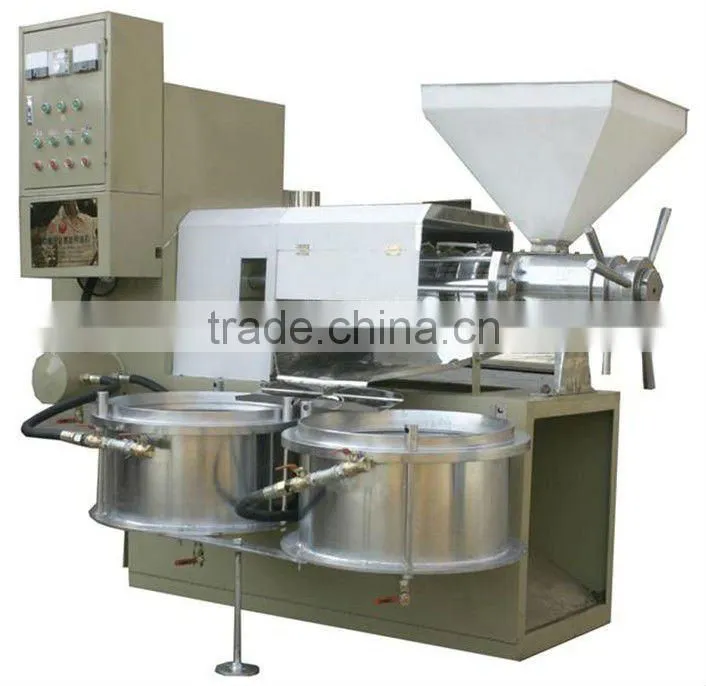

widely trusted at home and abroad high quality automatic oil press machinery

Technical parameter/ Model

TL-80

TL-100

TL-120

TL-150

Diameter of worm section

80mm

100mm

120mm

150mm

Rotary speed of worm section

50-60 r/min

40 r/min

36 r/min

45 r/min

Diameter of inscribed circle of press boring

82mm

102mm

122mm

152mm

Equipped force

Main frame

5.5 KW

7.5 KW

11 KW

15 KW

Vacuum pump

0.55 KW

0.75 KW

1.1 KW

1.1KW

heater

3 KW

3.5 KW

4 KW

6KW

Capacity

80-150kg/h

150-250kg/h

260-400kg/h

230-500kg/h

Weight

780kg

1100kg

1500kg

1800kg

Overall dimension  (L*W*H)

1800*1300*1750

1980*1450*1800

2100*1680*1750

2300*1700*1800

Materials/ Parameter

Oil productivity(%)

Material bread thick

Residual oil rate(%)

Sesame

45-55

1.0-1.5

≤6

Peanut

40-50

0.5-2.0

≤6

Rapeseed

30-45

0.8-1.8

≤6

Sunflower seed

32-42

1.0-1.5

≤6

Soybean

12-18

0.8-1.5

≤6

Cotton seed

11-25

1.0-2.0

≤6

Walnut

42-52

0.8-1.5

≤6

Flax

32-38

1.0-1.8

≤6

Tea seed

26-38

1.0-2.0

≤6
