Briquette machine
- 10 Set / Sets per Month
- Qinghai
- Pressing Ball Machine(86-15978436639)
- Charcoal Powder Press Ball Machine(0086-15978436639)
- Ball Pressing Maker Machine(86-15978436639)
- How Do You Make Charcoal Balls(0086-15978436639)
- Briquetting Plant Cost(86-15978436639)
- Production of Briquttes Briquetting Machine with a Capacity of 2t/h(86-15978436639)
Product Details
Condition: | New | Motor Type: | AC Motor | Power(W): | 15000 |
Place of Origin: | Henan, China | Brand Name: | Telon | Model Number: | TL-1 |
Dimension(L*W*H): | 1650*600*1600mm | Certification: | CE | Warranty: | One year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Quick Details
Condition: | Place of Origin: | Brand Name: | |||
Model Number: | Voltage: | Power(W): | |||
Dimension(L*W*H): | Weight: | Certification: | |||
Warranty: | After-sales Service Provided: | capacity: | |||
power: | name: | model: | |||
telephone: | overall dimension: | moisture: | |||
diameter of pellet: |
Packing & Delivery
Packing details: Standard export packing.
Delivery details: 10 working days after receiving deposit.
Brief Introduction of the Product
1) Brief Introduction Of The product

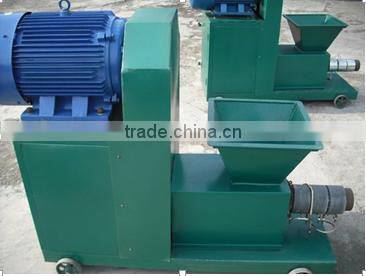

It's a device to make the coal powder into different shapes bar or rod shape briquettes. The working process is like the following: the motor transfers the power to the transmission through triangle belt, then the output shaft on the transmission transfers the power to the propeller shaft, finally the propeller on the propeller shaft pushes the coal powder into the mold and out, then the ideal high pressure coal rod is generated. This process is very simple, and it's easy to operate.
2) Raw material requirements
1. Inlet Size: less than 5mm( if the material cannot achieve the requirement, it should be crushed first.)
2. Inlet Moisture: 8%-12%, (if raw material has high moisture it should be reduced by Sun drying or using flash dried in case of the outlet briquettes are easy broken and have crevice.)

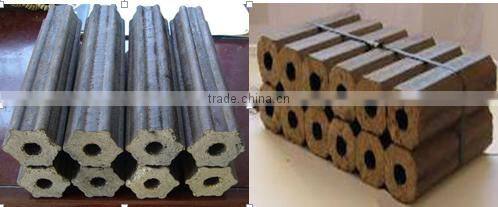

Final product
Technical parameters:
Model | TL-1 | TL-2 | TL-3 |
Capacity | 120-180kg/h | 180-240kg/h | 350--380kg/h |
Power | 15kw | 22kw | 18.5--22kw |
Net weight | 0.7T | 0.8T | 0.7T |
Package size | 1.65*0.6*1.6 | 1.9*0.6*1.8 | 1.9*0.6*1.8 |
Diameters of product | 50 mm | 50 mm | 80mm |
Moisture content of t he raw materials | Moisture content is 8-12%. | ||
Requirements on the size of the materials: the diameters of the raw materials are between 3mm and 5mm |

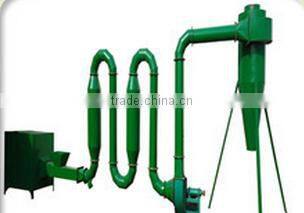

Production flow and processing line

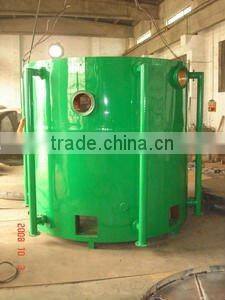

Wood Charcoal production line
