Simple discription of machine to make wood briquettes:
1.Good quality machine to make wood briquettes;
2.2 patents
2.High capacity and density
3.High wearable degree
4.Low consumption.
Usage of machine to make wood briquettes:
This machine to make wood briquettes can take sawdust, wood, rice husk, coconut shell, peanut shell and other woody materials into briquette, which can be used for bioler, heating and warming and making charcoals.
Working Priciple of machine to make wood briquettes:
Briquetting is a process that biomass is compressed under high pressure and high temperature.
The lignin content that occurs naturally in biomass is liberated under high pressure and temperature. Lignin serves as the glue in the briquetting process, thus binding, compressing the biomass to form into high density briquettes.
During this process, no binder needs to be used. So the output briquette is a type of clean and green fuel that is ideal for use in furnaces, boilers and open fires. The density of the briquettes is 900-1400kg/m2.

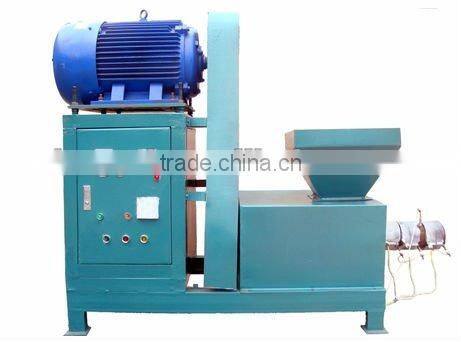

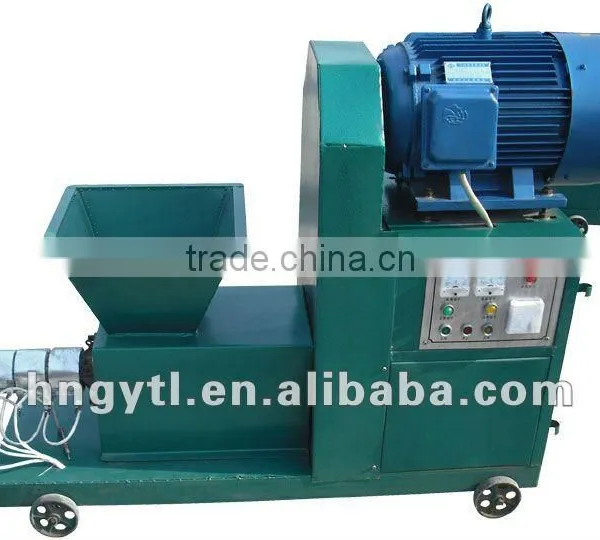

Machine to make wood briquettes:
1.Our machine to make wood briquettes awarded 2 patents ( patent number: 200530100650.5, 200520031212.2).
2.This kind of machine to make wood briquettes shows the features of big capacity, low energy consumption, compact and durable.
3.Many performance data of machine to make wood briquettes such as capacity, coal bar density, electric consumption and wearable degree have reached advanced level.
4.Our newly developed machine to make wood briquettes can be used as charcoal powder shaping machine by replacement of some spare parts.
Data of machine to make wood briquettes:
Type |
Power |
Output |
Inlet particle size |
Dimension |
Material humidity |
TL-III |
11kw |
90-110kg/h |
≤5mm |
1.67*0.68*1.55m |
≤12% |
TL-IV |
15kw |
120-140kg/h |
≤5mm |
1.65*0.6*1.6m |
|
TL-V |
18.5kw |
190-220kg/h |
≤5mm |
1.65*0.6*1.6m |
|
TL-VI |
22kw |
280-300kg/h |
≤5mm |
1.65*0.6*1.6m |
