Help CenterEnergy -saving Biomass Briquette Press Sawdust Briquettes Production Line
Related Products
-
Hot Sell Biomass Briquette Pressing MachineUS$ 2,340 - 3,500MOQ: 1 Set -
Bio. Fuel Briquette Machine With Low PriceUS$ 1 - 4,000MOQ: 1 Set
-
Pini Kay Briquette MachineUS$ 2,000 - 3,500MOQ: 1 Set
-
Biomass/charcoal Briquette Making MachineUS$ 2,340 - 3,500MOQ: 1 Set
-
Automatic Biomass Charcoal Briquettes Production LineUS$ 1 - 4,000MOQ: 1 Set
Specifications
Wood charcoal machine:1. 300kg/h
2. Hollow and hexagonal briquette
3. Diameter: 50mm-80mm
4. Inner Diameter: 15
Wood charcoal machine :
Charcoal briquette machine can take sawdust, wood, rice husk, coconut shell, peanut shell & otherwoody material into briquette, which can be used in boiler, heating & warming.

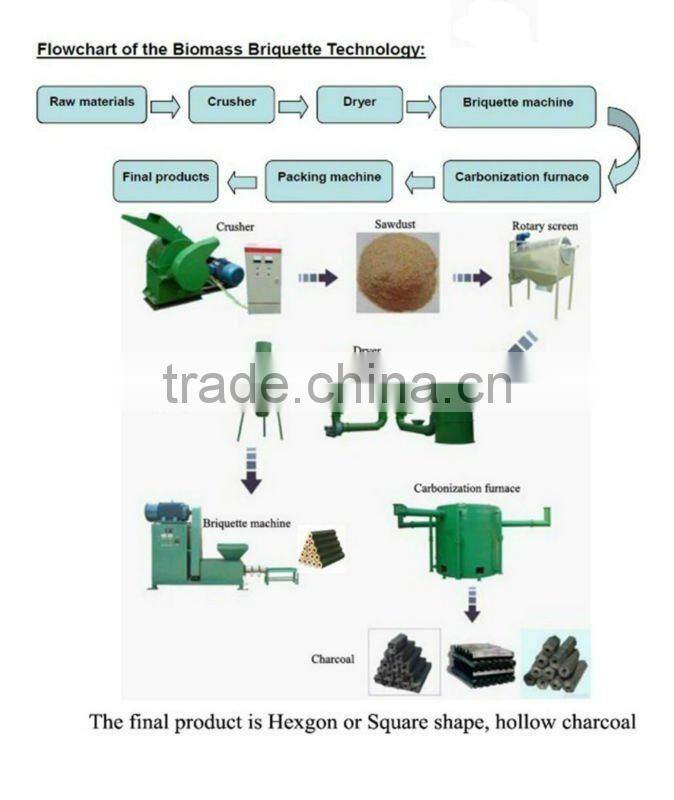

Processing flow - chart
Biomass material → Crush → Dry → Briquette → Carbonize → Charcoal
Working principle
Briquetting is a process that biomass is compressed under high pressure and high temperature.
The lignin content that occurs naturally in biomass is liberated under high pressure and temperature. Lignin serves as the glue in the briquetting process, thus binding, compressing the biomass to form into high density briquettes.
During this process, no binder needs to be used. So the output briquette is a type of clean and green fuel that is ideal for use in furnaces, boilers and open fires. The density of the briquettes is 900-1400kg/m.
Parameter
Model | Power | Output | Briquette diameter |
ZBJ-11 | 11kw | 140-200kg/h | 50 mm |
ZBJ-15 | 15 kw | 140-200 kg/h | 50 mm |
ZBJ-18.5 | 18.5 | 200-250 kg/h | 50 mm |
ZBJ-22 | 22 kw | 260-300 kg/h | 50 mm |
Different Production lines
Welcome to visit our factory in person, and we will provide you our sincere service and excellent products.
