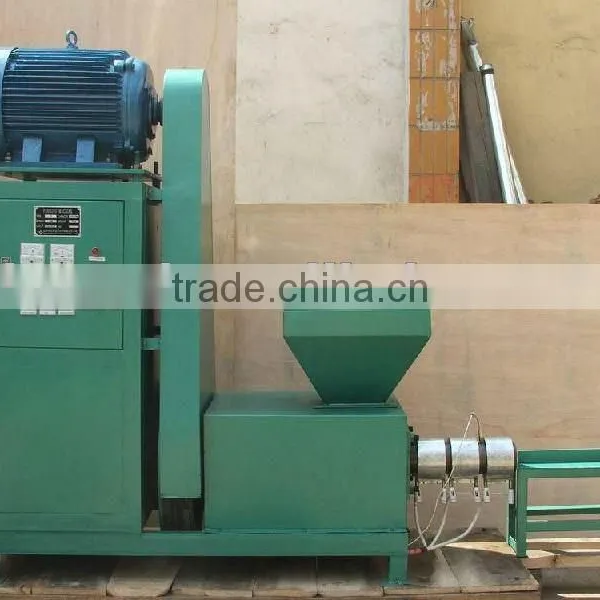

BBQ Charcoal Briquetting Machine

BBQ Charcoal Briquetting Machine photo-1
US$ 2,000 - 3,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Telon
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai...
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name Telon
Model Number TL-III
After-sales Service Provided Engineers available to service machinery overseas

Simple discription of bbq charcoal briquetting machine:

1.Good quality bbq charcoal briquetting machine;
2.2 patents
2.High capacity and density
3.High wearable degree
4.Low consumption.



Usage of bbq charcoal briquetting machine:

This machine can take sawdust, wood, rice husk, coconut shell, peanut shell and other woody materials into briquette, which can be used for bioler, heating and warming and making charcoals.



Working Priciple of bbq charcoal briquetting machine:

Briquetting is a process that biomass is compressed under high pressure and high temperature.

The lignin content that occurs naturally in biomass is liberated under high pressure and temperature. Lignin serves as the glue in the briquetting process, thus binding, compressing the biomass to form into high density briquettes.

During this process, no binder needs to be used. So the output briquette is a type of clean and green fuel that is ideal for use in furnaces, boilers and open fires. The density of the briquettes is 900-1400kg/m2.



 BBQ Charcoal Briquetting Machine

BBQ charcoal briquetting machine:

1.Our bbq charcoal briquetting machine awarded 2 patents ( patent number: 200530100650.5, 200520031212.2).

2.The bbq charcoal briquetting machine shows the features of big capacity, low energy consumption, compact and durable.

3.Many performance data of bbq charcoal briquetting machine such as capacity, coal bar density, electric consumption and wearable degree have reached advanced level.

4.Our newly developed bbq charcoal briquetting machine can be used as charcoal powder shaping machine by replacement of some spare parts.



It is the necessary machine for making charcoal, and the working process of making charcoal is:

 BBQ Charcoal Briquetting Machine

Data of bbq charcoal briquetting machine:

Type

Power

Output

Inlet particle size

Dimension

Material humidity

TL-III

11kw

90-110kg/h

≤5mm

1.67*0.68*1.55m

≤12%

TL-IV

15kw

120-140kg/h

≤5mm

1.65*0.6*1.6m

TL-V

18.5kw

190-220kg/h

≤5mm

1.65*0.6*1.6m

TL-VI

22kw

280-300kg/h

≤5mm

1.65*0.6*1.6m



BBQ Charcoal Briquetting Machine



BBQ Charcoal Briquetting Machine
