Home > Products > Brake System Parts > High quality non-asbestos woven roll brake lining
High quality non-asbestos woven roll brake lining
- 100000 Roll / Rolls per Month
- Shanghai Ningbo etc
- T/T D/P D/A
Product Details
| Type: | Other, brake lining roll | Material: | viscose fibre, aramid fibre, brass wire, CNSO resin | Certification: | ISO9001/TS16949 |
| Size: | width: 30-550mm, thickness: 5-30mm | Car Make: | tractor,agricultural machiery | OE NO.: | woven roll brake lining |
| Place of Origin: | Jiangsu, China | Brand Name: | GRTECH | Model Number: | woven roll brake lining |
Packaging Details
OPP bag and standard export carton for woven roll brake lining
Product Description
High quality non-asbestos woven roll brake lining
| Part Name | woven roll brake lining |
| Brand packing | we can make brake lining rolls as per customer's brand or drawings. |
| Payment | T/T30% deposite, 70% balance one week before delivery |
| Delivery Date | 30 days after receiving deposite |

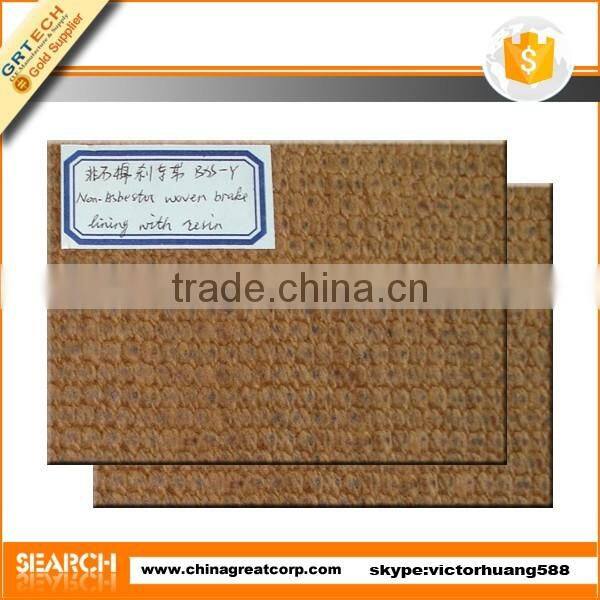

Woven roll brake lining with resin
1. Standard: GB/T11834-2000
2. Specification: (4-20)mm x (30-350)mm
3. Performance: high intensity and wears ability
4. Application: deceleration for the braking of the ship and other heavy machinery
5. Remarks: Material, color and length can be made according your request.
Test Report For Woven Resin Brake Lining Roll | ||
| Temperature | Coefficient of Friction | Wear Rate(Cm3/N.m) |
| 100°C | 0.40-0.65 | ≤0.3×10-7 |
| 150°C | 0.35-0.65 | ≤0.5×10-7 |
| 200°C | 0.30-0.60 | ≤0.7×10-7 |
Regular order sizes of woven roll brake lining
| Item | Width(mm) | Thickness(mm) | Length(m) | Rolls |
| 1) | 35 | 4 | 5 | 500 |
| 2) | 45 | 5 | 5 | 500 |
| 3) | 50 | 5 | 5 | 200 |
| 4) | 50 | 6 | 5 | 200 |
| 5) | 57 | 5 | 5 | 200 |
| 6) | 57 | 6 | 5 | 200 |
| 7) | 57 | 6 | 5 | 100 |
| 8) | 76 | 9.5 | 7.5 | 100 |
| 9) | 100 | 9.5 | 7.5 | 100 |
| 10) | 125 | 9.5 | 7.5 | 100 |
| 11) | 152 | 9.5 | 7.5 | 100 |
| 12) | 100 | 12 | 7.5 | 100 |
| 13) | 152 | 12 | 7.5 | 100 |
| 14) | 76 | 12 | 7.5 | 100 |
| 15) | 200 | 12 | 7.5 | 100 |
| 16) | 228 | 12 | 7.5 | 100 |
Length of each roll: 7.5 meter, 10 meter, 15 meter; as per your request | ||||
Jiangsu Great Industrials Group Corp.Ltd.

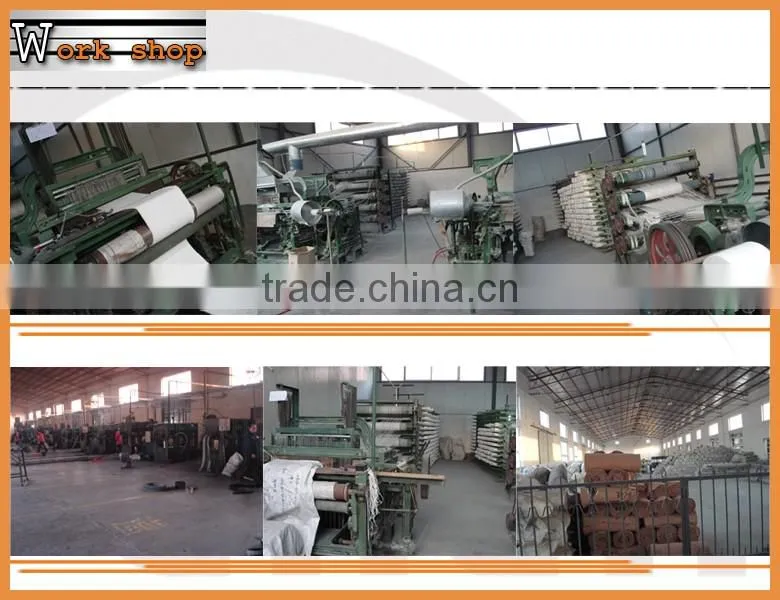

—— Factory Workshop & Sample Showroom
We're manufacturing all brake system, clutch system parts and friction material of brake and clutch, include brake linjings, brake Lining in rolls , with perfect quality since last 22 years;our brake lining roll products covers the world market Europe,South-east Asia,Mid-East and African Countries;
We have high quality non-asbestos material brake lining rolls in diffrerent colors. Types include rubber moulded brake lining roll, resin woven brake lining roll, semi-metallic brake lining roll etc. rubber brake lining roll with black, grey, white, yellow color; and woven brake lining roll with light yellow, reddish brown, dark brown, white color. We have the ability to develop any new quality and materials to new market.
If you hold interest and need further information of our brake system parts, don't hesitate to contact us!
A:

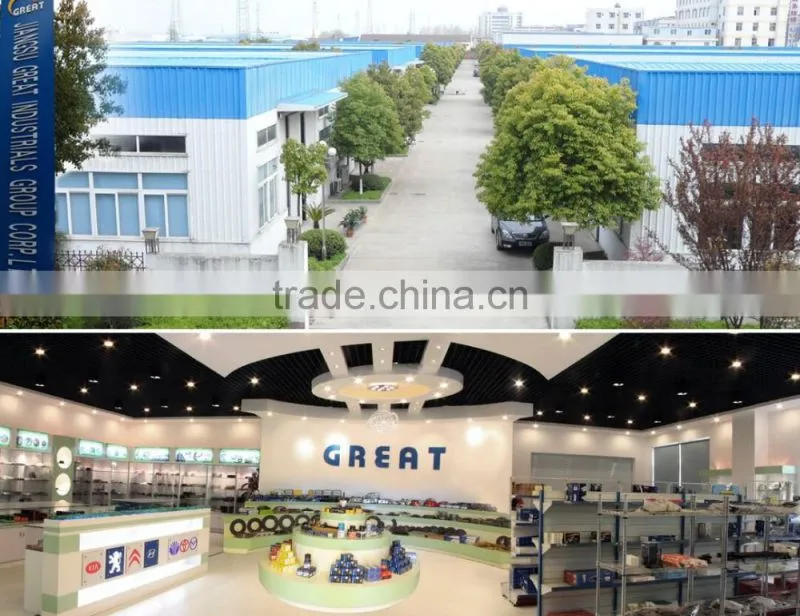

Company Profile
Jiangsu Great Industrials Group Corp.Ltd, and its associated factories, have created a highly experienced manufacturing team that exports thousands of auto part products worldwide. Our aim is to deliver value and competitive advantages to our customers, by effectively sourcing products in China. We combine the infrastructure of our own offices, engineering team, inspection team and affiliates throughout China, with almost 22 years experience and expertise focused on auto parts and accessories.
We produce and supply clutches, (clutches, discs, covers, bearings, facing, and linings), brakes, (disc brake pads, brake shoes, brake rotors, and flexible brake lining rolls), ignition parts (spark plugs, glow plugs, and contact point sets), and automotive belts,bearing. We also have a wide range of spare parts for Kia pride and Peugeot 405 and 206 vehicles,rio,samand,persian,xiantia,paykan etc
The principle of our company and partners worldwide is to provide high quality products, competitive prices, fast delivery, flexible terms, and prompt responses. We have built up a solid reputation with our customers based in Canada, America, Spain, Turkey, Malaysia, Iran, Saudi Arabia, the United Arab Emirates, Ethiopia, Morocco, Singapore, Pakistan, and Syria.
Please do not hesitate to contact us for further details. We look forward to working with you in the near future!
