HIGH QUALITY AND COMMERCIAL MOTORS FOR CULTIVATOR:
1.Easy to operate and convenient to maintain.
2.Suitable for using in the plain, hilly ground, paddy field, arid land and farmland.
3.Not only reduce the intensity of labor but also increase the efficiency of the producing.
4.Multi-functional, light-weight, well-designed with superior quality.

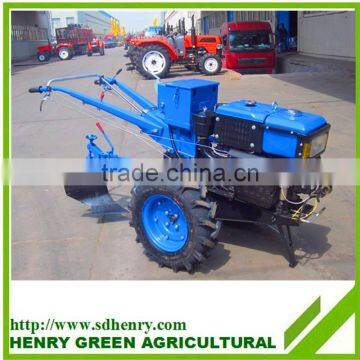

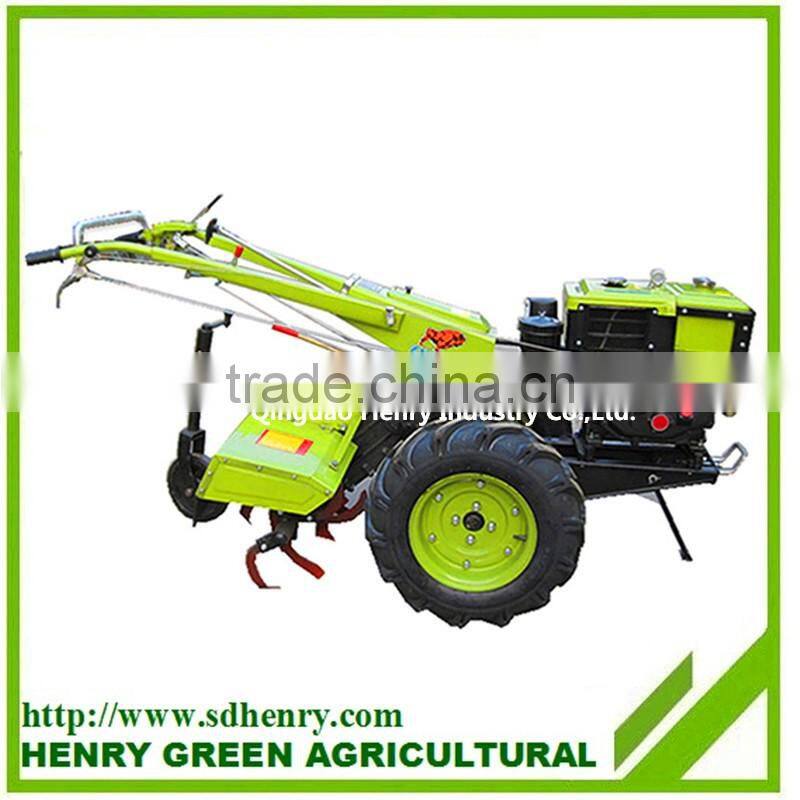

HR151 ,DF18 type of the walking tractor traction drive dual-purpose walking tractor. The machine not only widely used operating in the plains, mountains and hills and rice fields, and equipped with a specially designed lower rack, more suitable for orchards, vegetable fields, forests, etc. agronomic job. Can also do a fixed power use, and is equipped with lighting equipment, operating at night. The machine is the domestic advanced level.
HR121/151 SPECIFICATION
| Model | HR121-1 | HR151-1 | ||
| Overall dimensions (lxwxh)mm | 2260x930x1125 | 2330x1260x1250 | ||
| Wheel track (mm) | 680-850 | 680-1000MM | ||
| Ground clearance (mm) | 215 | 250 | ||
| Tyres | 6.00-12/600-14/600-16 | 6.00-16 | ||
| Construction weight (kgs) | 300 | 390 | ||
Speed (km/h) (3+1)*2 | Forward | 2.21/4.28/6.64/8.22/14.63/24.5/ | 2.55/4.94/7.68/9.5/16.9/28.3
| |
| Reverse | 1.75/4.11 | 2.03/4.5 | ||
| Rotary Tiller speed (rpm) | High | 275 | 275 | |
| Low | 219 | 219 | ||
| Diesel engine | Model | 195/196/1100/1105 | 1100/1105/1115 | |
| Type | Singlecylinder,horizontal,4 stroke Water cooling Diesel | Singlecylinder,horizontal,4 stroke Water cooling Diesel | ||
| Rated power kw(hp) | 12hp/15hp/18hp | 15hp/18hp/20hp | ||
| Rated speed (rpm) | 2000 | 2300 | ||
HR101-1/101-2 SPECIFICATION
Item | Data |
| Item | Data |
model | HR101-1/101-2 | STANDARD TRACTION(N) | 1600N | |
ENGINE | R180/190/192/195/196 | Overall dimensions(mm) | 2130×940×1090 | |
12hours rating | 7hp/8hp/10hp/11hp/12hp | weight(Kg) | 258(with rotary 333kgs) | |
Rated speed | 2300r/min | Tire sizes | 6.00-12 |

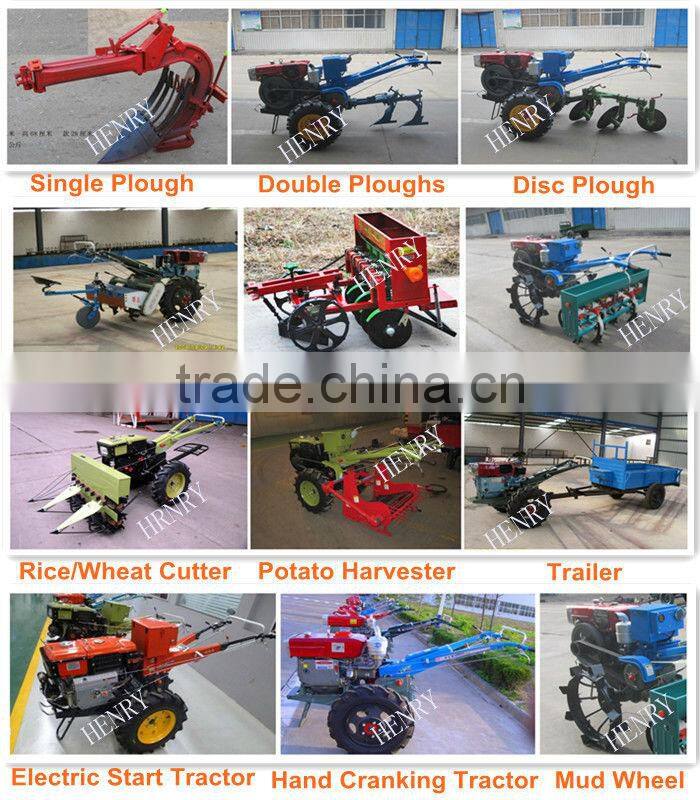

MAIN IMPLEMENTS
kinds of implments for diffirent work.
Other main implements as folows can choice:
Main Feature
1.Two wheel walking tractor power from 4.41kw(6hp) - 14.70kw(20hp)
2.Diesel eingine ,compact ,agile ,ligh ,reliable,convenients,Excellent quality
3.Suitable for upland plaines ,moutainous and hilly areas and paddy fields for plough,rotary tillage, plant ,harvester ,irrigation and so on.
4.Equipped with lighting equipment,traveling at night ,with trailer can do short transportation.
5.with quickly coupling ,easy to change farming implements:plogh ,culivator,mower ,trailer ,water pump,snow blower,rotary plough ect.
6.The colors can optional as request after the quantity more than 200set
7.Every year export more than 40000sets ,the products are welcome by the market.
FACTORY
