Home > Transportation > Tricycle & Parts > Electric Tricycle > Three Wheel Motor Tricycle With Half Closed Cabin for Cargo
Three Wheel Motor Tricycle With Half Closed Cabin for Cargo
US$ 1,000 - 5,000
MOQ: 6 Sets
Key Specifications
Get Latest Price
Use For:
Cargo
Driving Type:
Motorized
Displacement:
201 - 250cc
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Use For
Cargo
Driving Type
Motorized
Displacement
201 - 250cc
Body Type
Open
Certification
CE
Brand Name
BOTA
Place of Origin
Shandong, China
Model Number
200ZH-6
Size
3450*1370*1800

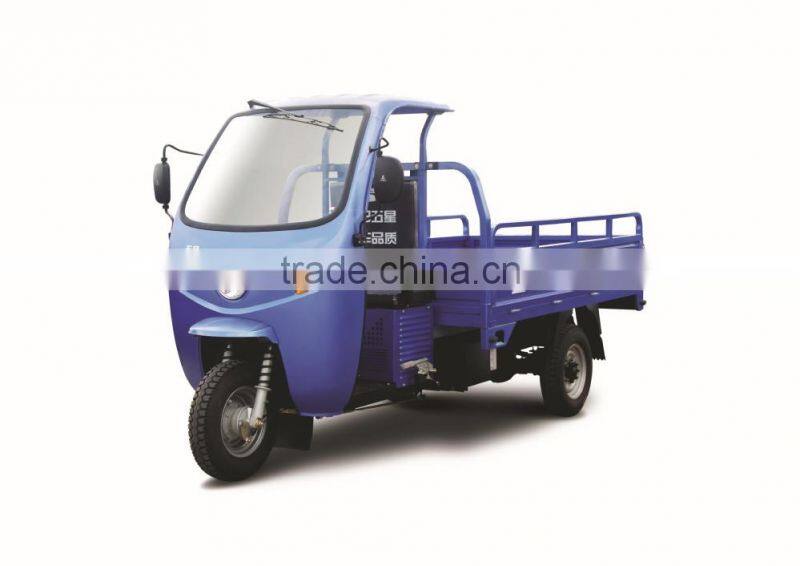

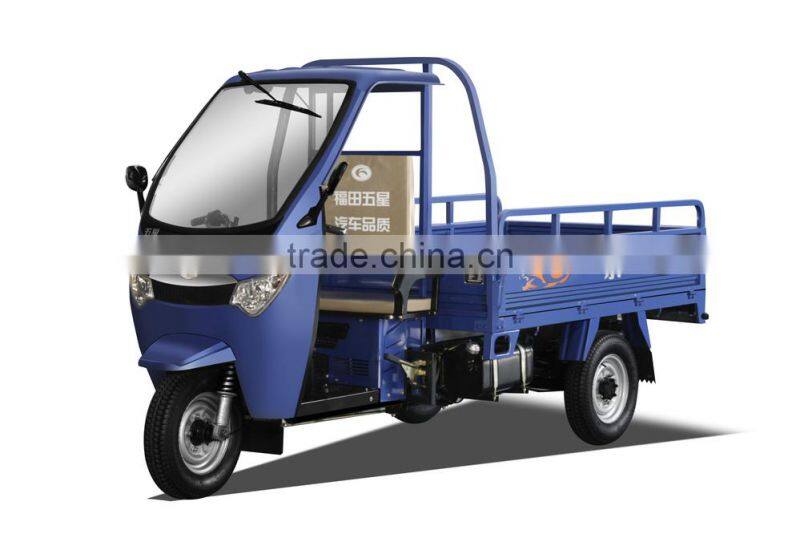

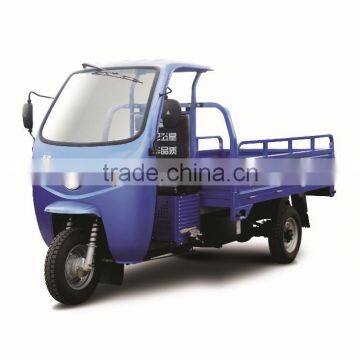

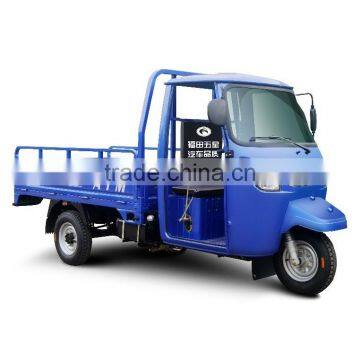

three wheel motor tricycle with half closed cabin for cargo
Main Features
1. High bearing capacity: Satisfy the vehicle’s two driving requirements on high carrying capacity and high-speed driving, and increase the carrying capacity by more than 30% under the same road condition;
2. Low oil consumption: Under the same cargo capacity, it will save more than 10% of average oil consumption for every 100km compared with the common rear axle, and is characterized by stronger economical efficiency;
3. Strong grade ability: The five-star auxiliary box product, which effectively improves the grade ability, is characterized by easy climbing and small losses of engine;
4. Long service life: The five-star auxiliary box product, which adopts the motorized technical configuration between the engine and rear axle, will effectively reduce the losses of engine power during the transmission process and decrease the power loading of engine, thus prolonging the service life of engine for more than 1 year;
5. Good stability: The strong power output of five-star auxiliary box product is connected by reinforced driving shaft and rear axle, which makes the operation of rear axle more stable and decreases its loading and abrasive wear, thereby cutting the failure rate of rear axle.
Technical parameters
Technical parameters
| Displacement(cc) | 200 |
|---|---|
| Main Parameter | 200 |
| overall dimensions of vehicle(mm) | 3460/3680*1490*1820 |
| overall dimensions of cargo box(mm) | 2000/2200*1350*320 |
| Fuel consumption(L/km) | 5.5L/100 |
| Loading capacity(kg) | 1200 |
| Max speed(km/h) | ≤65 |
| Engine | |
| Engine | Single cyclinder,Water-cooled,4-stroke |
| Rated power(ph) | 17.7 |
| Fuel tank capacity(L) | 18 |
| Transmission | |
| Start mode | Kick |
| Gears of gearbox/reverse | 5/1 |
| Real axle | Full floating |
| Other | |
| Driving type | Shaft transmission |
| Tire(F/R) | 5.00-12/5.00-12 |
| Brake type | Drum |
| Qty in 40HQ(units) | 25(CKD) |
| color | Red/Blue |
| - | Two speed gearbox(H/L speed) |
