agricultural tractor rotavator
- 100 Set / Sets per Month
- QINGDAO PORT
- T/T Credit Card
Product Details
Condition: | New | Type: | Other, Wheel Tractor, agricultural tractor rotavator | By wheel: | 4WD |
Usage: | Farm Tractor | Drive Type: | Gear Drive | Power(W): | 55.1KW |
Certificate: | Other, ISO9001 | Brand Name: | HR | Model Number: | 704 AND 904 |
Place of Origin: | Shandong, China | After-sales Service Provided: | No overseas service provided |
Packaging Details
CONTAINER
Product Description

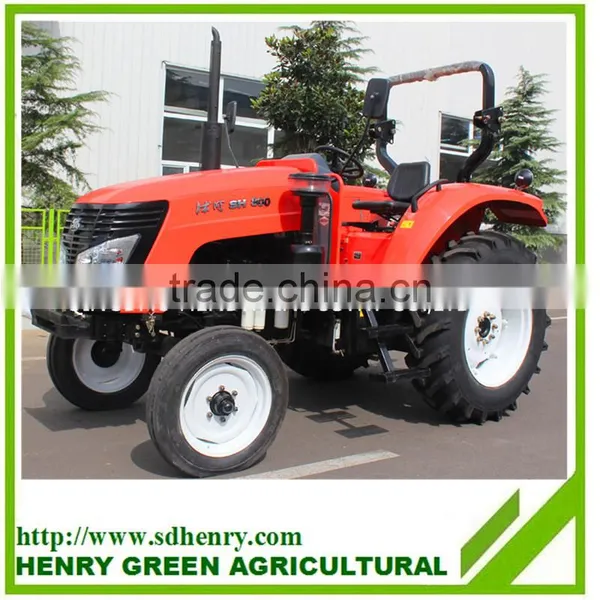

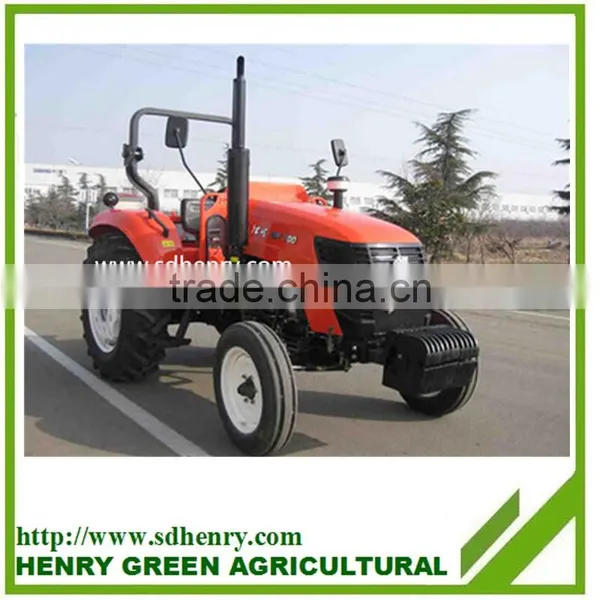

four wheel tractor
Beautiful appearance, comfortable operation, optional three cylinder, four cylinder engine, to meet your different needs;
The combination instrument and the automobile electric appliance constitute the switch, the control staff can understand the machine working state at any time, and provide the guarantee for the scientific use of the machine;
Meshing gear shift, gear brake mechanism to ensure that the product is durable.
Also have 20-140hp four wheel tractot ,welcome contact with us.
SPECIFICATION:
Main parameters | LD80 Product series | ||||
Type | 704 | 754 | 804 | 904-1 | |
Drive type | 4WD | ||||
Engine | |||||
Engine Brand | YTO | YTO | YTO | YuChai | |
Engine Type | YT4B4-22 | YT4B4-22 | YT4B5-22 | YC4B105Z-T20 | |
Max. Torque (Nm @ engine rpm) | 309~315/1650 | 320~325/1650 | 341~347/1650 | 380~400/1540±100 | |
Fuel tank capacity | 90 | ||||
Rating power of engine | 51.5/2200 | 55.1/2200 | 59/2200 | 66.2/2300 | |
Fuel consumption @ nominal power | ≤242 | ≤242 | ≤242 | ≤235 | |
Air Intake Type | Naturally Aspirated | Naturally Aspirated | Naturally Aspirated | Tubocharging | |
Displacement | 4/4.76 | 4/4.76 | 4/4.95 | 4/4.578 | |
Air filter type/size | Oil bath 9.5inch 430m3/h | ||||
Torque reserve | 25.0% | 24.8% | 25% | 21.4% | |
Transmission system | |||||
Clutch type/size | One-piece,dry,double-action/12 inches | ||||
No. of gears | 10F+10R | ||||
Shift method | mechanical sliding sleeve | ||||
Max. speed | 31.48 km/h | ||||
Gear position | side position | ||||
Hydraulic system | |||||
Hydraulic output flow rate | 44 | ||||
Hydraulic output valve | Two groups | ||||
Hydraulic filter types and capacity | wire mesh/63μm | ||||
Working device | |||||
Three-point-linkage | Cat.2 | ||||
PTO Speed | 540/760 r/min | ||||
Lifting Capacity | ≥15 | ||||
Tillage depth adjustment | Position and float | ||||
Parameter | |||||
The whole machine size (dimensions) mm | 4200*1900*2650 | 4089*1900*2650 | |||
Min. operation mass | Without cab | 3010 | 3020 | ||
Wheel base | 2260 | 2297 | |||
Mini turning Radius (m) | 4.9±0.2 | ||||
Rated traction force(N) | 15900 | 16870 | |||
Minimum ground clearance | 340 | ||||
Front/rear wheel tread | 1450/1425,1525,1625,1725,1825(Common1525 ) | ||||
tyre size | Front Tyre 8.3-24/ Rear Tyre 14.9-30 | ||||
Braking and steering | |||||
Braking system | Dry type,disc brake | ||||
Steering type | hydraulic steering | ||||
Steering Angle (4*4) | Front axle Max.Steering angle 50° | ||||
(options: all these types can Optional for ROPS ,Sunshade,swing drawbar, front/rear ballast) |
PACKAGE BY CONTAINER
FACTORY SHOW
Optional tools:
WHY CHOOSE US
1. Professional supply with certification: CCC, ISO,CE,DOT and so on
2. Perfect quality program. 100% test before delivery
3. One year guarantee.
4. OEM cervice.
5. Creative design team and first class quality equipments.
6. Design and Producing be customized.
7. Flexible payment. T/T L/C D/P,WESTERN UNION be accept.
BOTA BRAND walking tractor looking for sole agnt from every country and city.
Company Profile
Qingdao Henry Industry Co.,Ltd., is one of the leading manufacturer in Shandong china for agricultural work products and industry protect products. its total assets of RMB 1 billion , employee over 1500.
The farm machinery main including : Single cylinder diesel engine, two wheel tractor ,mini tillers(diesel engine and gasoline engine), four wheel tractor,rice planter and harvester machinery, and kinds of farm Acessories and so on.
Tire products are including agriculture tire ,industrial tire ,implement tire ,skid steer tire rubber wheel and motorcycle tire .
Kinds of Gloves,especially for RESISTANT GLOVES .
In the period of development, the company is keeping on improving the internal management on the basis of market criteria, and implementing technical creation. It has completely passed the international quality system certificates, including ISO9001, QS9000, DOT & CE in compliance with American &European automobile industry standard, The products are permitted to enter international markets. exported to 70 countries & area, incl. U.S.A market and European market ,South-east Asia, Middle east, Central & South America, African, etc.
We can supply large and regular products ,and also can supply many kinds and small amount products for at home and abroad friends.
The quality and credit are our develop basis .
HENRY GREEN MACHINERY ,HENRY GREE POWER FOR HAPPY LIFE.
HIGH-QUALITY PURSUE EXCELLENT SERVICE FIRST-CLASS BRAND .
