Home > Products > Four wheel tractor > agricultural machinery mini tractor

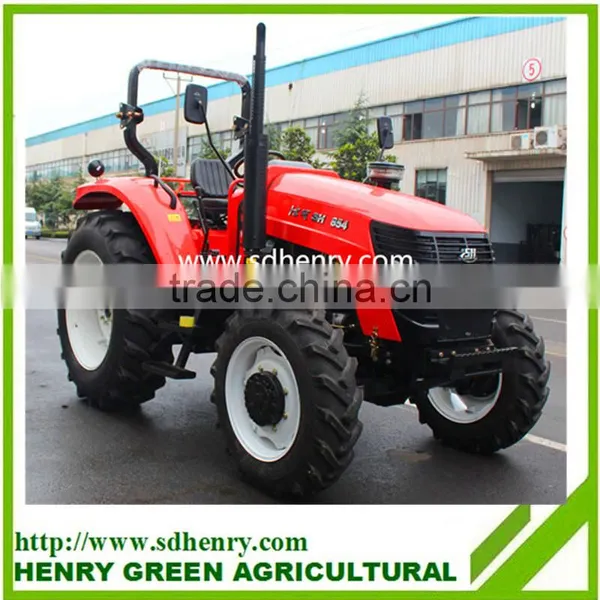

agricultural machinery mini tractor
- 100 Set / Sets per Month
- QINGDAO PORT
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Other, Wheel Tractor, agricultural machinery mini tractor | |
| By wheel | 4WD | Usage | Farm Tractor | |
| Drive Type | Gear Drive | Power(W) | 44kw | |
| Certificate | Other, ISO9001 | Brand Name | HR | |
| Model Number | 554-704 | Place of Origin | Shandong, China | |
| After-sales Service Provided | No overseas service provided |
CONTAINER
Product Description
four wheel tractor
Beautiful appearance, comfortable operation, optional three cylinder, four cylinder engine, to meet your different needs;
The combination instrument and the automobile electric appliance constitute the switch, the control staff can understand the machine working state at any time, and provide the guarantee for the scientific use of the machine;
Meshing gear shift, gear brake mechanism to ensure that the product is durable.
Also have 20-140hp four wheel tractot ,welcome contact with us.
SPECIFICATION:
| Main parameters | CD55 Product series | |||
| Type | SH554 | SH604 | SH704-1 | |
| Drive type | four-wheel drive | four-wheel drive | four-wheel drive | |
| Engine | ||||
| Engine Brand | quanchai | |||
| Engine Type | QC4105T55 | QC4105T60 | QC4108T70 | |
| Max. Torque (Nm @ engine rpm) | 227~233/1700 | 240~245/1700 | 265~275/1700 | |
| Fuel tank capacity | main48L+vice22L=70L | main48L+vice22L=70L | main48L+vice22L=70L | |
| Rating power of engine | 40.4/2400 | 44/2400 | 51.5/2400 | |
| Fuel consumption @ nominal power | ≤248 | ≤248 | ≤248 | |
| Air Intake Type | Natually-Aspirated | Natually-Aspirated | Natually-Aspirated | |
| Displacement | 4/4.087 | 4/4.087 | 4/4.324 | |
| Air filter type/size | Oil bath 7.8inch 255m3/h | |||
| Torque reserve | 27% | 25% | 20% | |
| Transmission system | ||||
| Clutch type/size | One-piece,dry,double-action/10 inches | One-piece,dry,double-action/10 inches | One-piece,dry,double-action/11 inches | |
| No. of gears | 12F+12R | 12F+12R | 12F+12R | |
| Shift method | mechanical sliding sleeve | mechanical sliding sleeve | mechanical sliding sleeve | |
| Max. speed | 29.91 | 29.91 | 29.91 | |
| Gear position | side position | side position | side position | |
| Hydraulic system | ||||
| Hydraulic output flow rate | 38.4 | 38.4 | 38.4 | |
| Hydraulic output valve | One group/Two groups/Three groups/Simple hydraulic output | One group/Two groups/Three groups/Simple hydraulic output | One group/Two groups/Three groups/Simple hydraulic output | |
| Hydraulic filter types and capacity | wire mesh/63μm | wire mesh/63μm | wire mesh/63μm | |
| Working device | ||||
| Three-point-linkage | 2 Type | 2 Type | 2 Type | |
| PTO Speed | 540/760rpm 540/1000rpm(Optional) | 540/760rpm 540/1000rpm(Optional) | 540/760rpm 540/1000rpm(Optional) | |
| Lifting Capacity | 11KN/15KN(Enforced lift) | 11KN/15KN(Enforced lift) | 15KN(Enforced lift Optional) | |
| Tillage depth adjustment | Draft, position,position and draft mix control/position,float(Enforced lift) | Draft, position,position and draft mix control/position,float(Enforced lift) | Draft, position,position and draft mix control/position,float(Enforced lift) | |
| Parameter | ||||
| The whole machine size (dimensions) mm | 3970*1620*2130 | 3970*1620*2130 | 4060*1828*2200 | |
| Min. operation mass | With cab | 2640 | 2640 | 2660 |
| Without cab | 2360 | 2360 | 2380 | |
| Wheel base | 2041 | 2041 | 2071 | |
| Mini turning Radius (m) | 4.3 | 4.3 | 4.5 | |
| Rated traction force(N) | 14.5 | 15 | 16.5 | |
| Deck | Flat Deck | Flat Deck | Flat Deck | |
| Minimum ground clearance | 325 | 325 | 370 | |
| Heat ventilation cab | Optional | Optional | Optional | |
| Front/rear wheel tread | 1250/1300 | 1250/1300 | 1350/1450 | |
| tyre size | 8.3-20/12.4-28 | 8.3-20/12.4-28 | 8.3-24/14.9-30 | |
| Braking and steering | ||||
| Braking system | Wet type,disc brake | Wet type,disc brake | Wet type,disc brake | |
| Steering type | hydraulic steering | hydraulic steering | hydraulic steering | |
| Steering Angle (4*4) | Front axle Max.Steering angle 50° | Front axle Max.Steering angle 50° | Front axle Max.Steering angle 50° | |
| (options: all these types can Optional for ROPS ,Sunshade,swing drawbar, front/rear ballast,cabin) | ||||
PACKAGE BY CONTAINER
FACTORY SHOW
Optional tools:
WHY CHOOSE US
1. Professional supply with certification: CCC, ISO,CE,DOT and so on
2. Perfect quality program. 100% test before delivery
3. One year guarantee.
4. OEM cervice.
5. Creative design team and first class quality equipments.
6. Design and Producing be customized.
7. Flexible payment. T/T L/C D/P,WESTERN UNION be accept.
BOTA BRAND walking tractor looking for sole agnt from every country and city.
Company Profile
Qingdao Henry Industry Co.,Ltd., is one of the leading manufacturer in Shandong china for agricultural work products and industry protect products. its total assets of RMB 1 billion , employee over 1500. The farm machinery main including : Single cylinder diesel engine, two wheel tractor ,mini tillers(diesel engine and gasoline engine), four wheel tractor,rice planter and harvester machinery, and kinds of farm Acessories and so on. Tire products are including agriculture tire ,industrial tire ,implement tire ,skid steer tire rubber wheel and motorcycle tire . Kinds of Gloves,especially for RESISTANT GLOVES . In the period of development, the company is keeping on improving the internal management on the basis of market criteria, and implementing technical creation. It has completely passed the international quality system certificates, including ISO9001, QS9000, DOT & CE in compliance with American &European automobile industry standard, The products are permitted to enter international markets. exported to 70 countries & area, incl. U.S.A market and European market ,South-east Asia, Middle east, Central & South America, African, etc. We can supply large and regular products ,and also can supply many kinds and small amount products for at home and abroad friends. The quality and credit are our develop basis . HENRY GREEN MACHINERY ,HENRY GREE POWER FOR HAPPY LIFE. HIGH-QUALITY PURSUE EXCELLENT SERVICE FIRST-CLASS BRAND .
