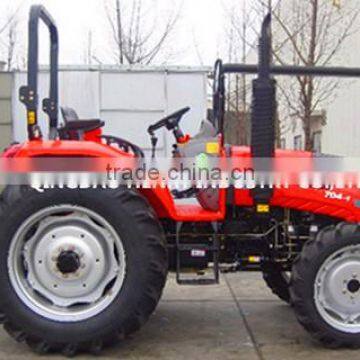

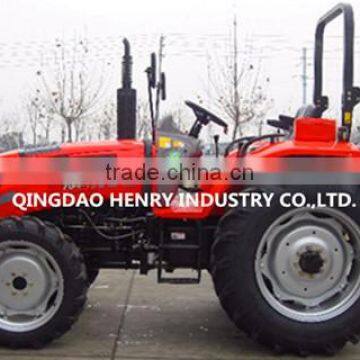

4wd Wheel Tractor

FOB Price

US$ 10,000 - 20,000 / Set

1 Set(Min. Order)

Port QINGDAO PORT
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Wheel Tractor, 4wd wheel tractor
By wheel	4WD	Usage	Farm Tractor
Drive Type	Gear Drive	Power(W)	55.1KW-66.2kw
Certificate	Other, ISO9001	Brand Name	HR
Model Number	704 AND 904	Place of Origin	Shandong, China
After-sales Service Provided	No overseas service provided

Packaging Details

CONTAINER

Product Description

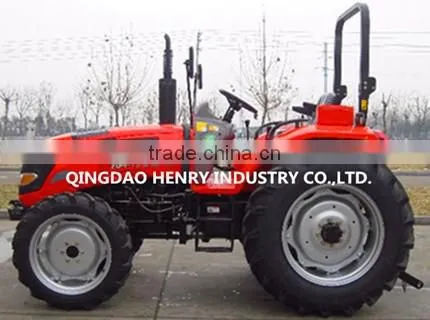

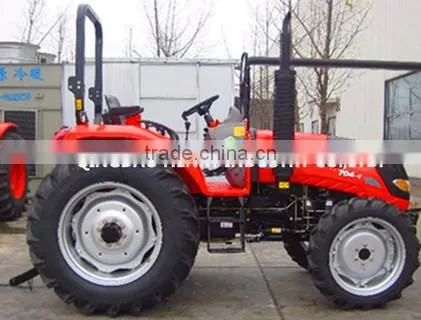

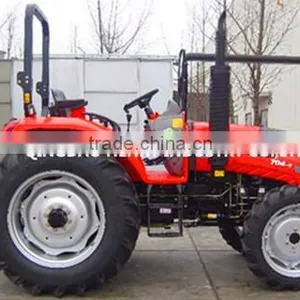

4wd wheel tractor

Also can produce Model 354, 404,454, 504, 554, 604, 654, 704, 754, 804,904, 954, 1004 , 1104, 1204, 1354, 1404

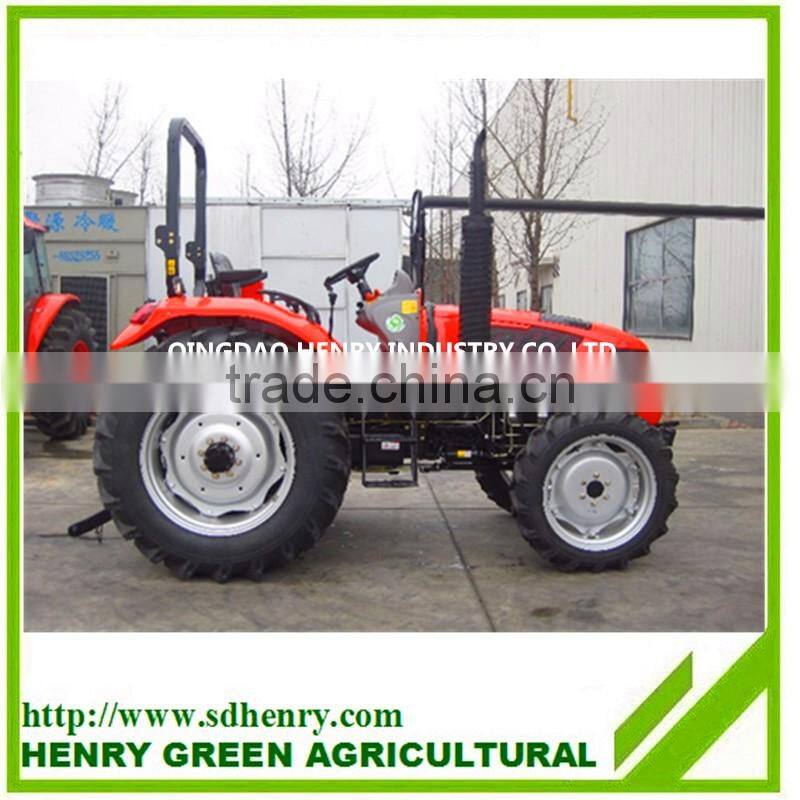

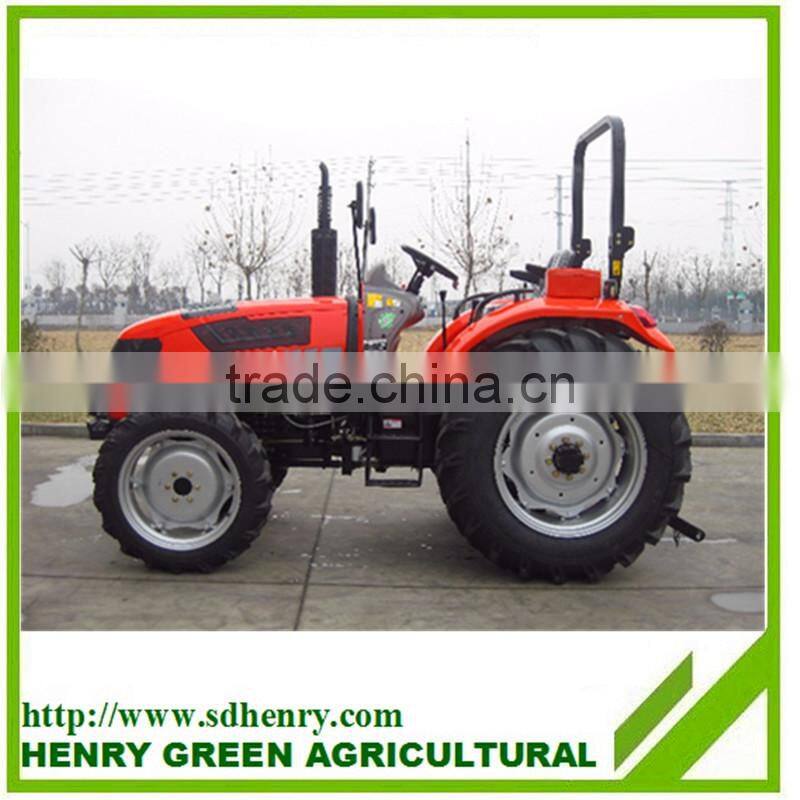

four wheel tractor
Beautiful appearance, comfortable operation, optional three cylinder, four cylinder engine, to meet your different needs;

The combination instrument and the automobile electric appliance constitute the switch, the control staff can understand the machine working state at any time, and provide the guarantee for the scientific use of the machine;

Meshing gear shift, gear brake mechanism to ensure that the product is durable.
Also have 20-140hp four wheel tractot ,welcome contact with us.

SPECIFICATION:

Main parameters		LD80 Product series
Type		704	754	804	904-1
Drive type		4WD
Engine
Engine Brand		YTO	YTO	YTO	YuChai
Engine Type		YT4B4-22	YT4B4-22	YT4B5-22	YC4B105Z-T20
Max. Torque (Nm @ engine rpm)		309~315/1650	320~325/1650	341~347/1650	380~400/1540±100
Fuel tank capacity		90
Rating power of engine		51.5/2200	55.1/2200	59/2200	66.2/2300
Fuel consumption @ nominal power		≤242	≤242	≤242	≤235
Air Intake Type		Naturally Aspirated	Naturally Aspirated	Naturally Aspirated	Tubocharging
Displacement		4/4.76	4/4.76	4/4.95	4/4.578
Air filter type/size		Oil bath 9.5inch 430m3/h
Torque reserve		25.0%	24.8%	25%	21.4%
Transmission system
Clutch type/size		One-piece,dry,double-action/12 inches
No. of gears		10F+10R
Shift method		mechanical sliding sleeve
Max. speed		31.48 km/h
Gear position		side position
Hydraulic system
Hydraulic output flow rate		44
Hydraulic output valve		Two groups
Hydraulic filter types and capacity		wire mesh/63μm
Working device
Three-point-linkage		Cat.2
PTO Speed		540/760 r/min
Lifting Capacity		≥15
Tillage depth adjustment		Position and float
Parameter
The whole machine size (dimensions) mm		420019002650			408919002650
Min. operation mass	Without cab	3010			3020
Wheel base		2260			2297
Mini turning Radius (m)		4.9±0.2
Rated traction force(N)		15900			16870
Minimum ground clearance		340
Front/rear wheel tread		1450/1425,1525,1625,1725,1825(Common1525 )
tyre size		Front Tyre 8.3-24/ Rear Tyre 14.9-30
Braking and steering
Braking system		Dry type,disc brake
Steering type		hydraulic steering
Steering Angle (4*4)		Front axle Max.Steering angle 50°
(options: all these types can Optional for ROPS ,Sunshade,swing drawbar, front/rear ballast)

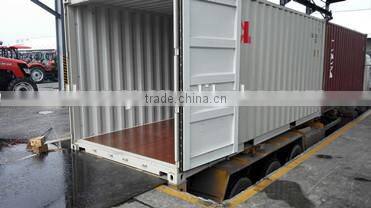

PACKAGE BY CONTAINER

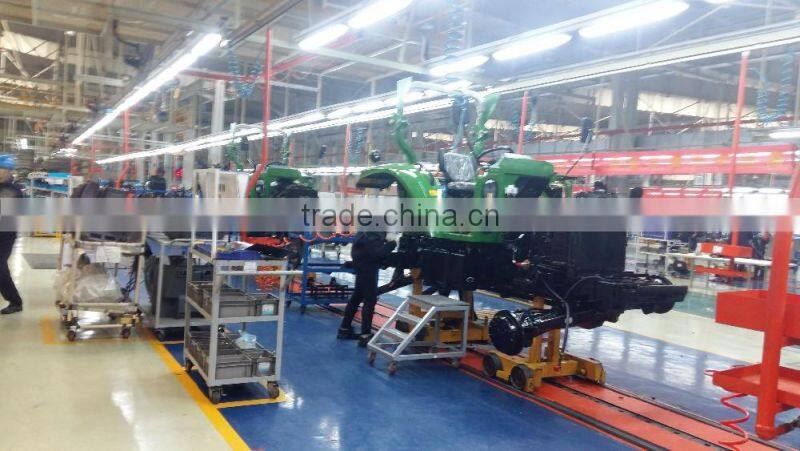

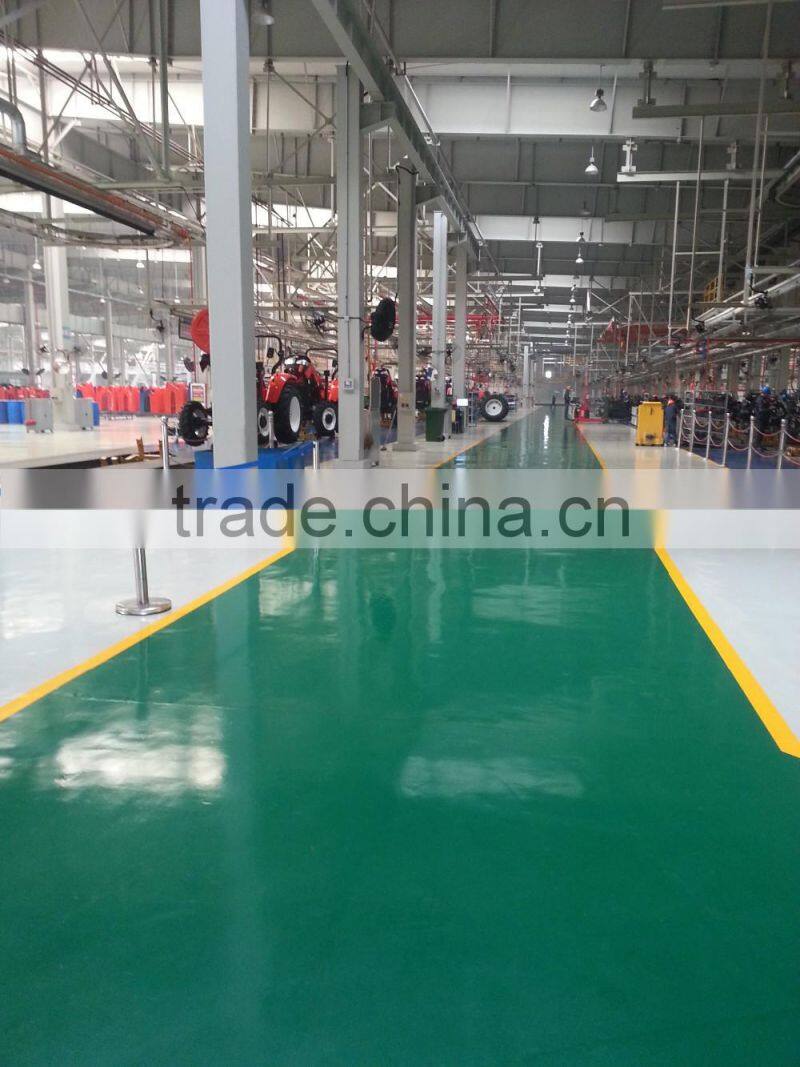

FACTORY SHOW

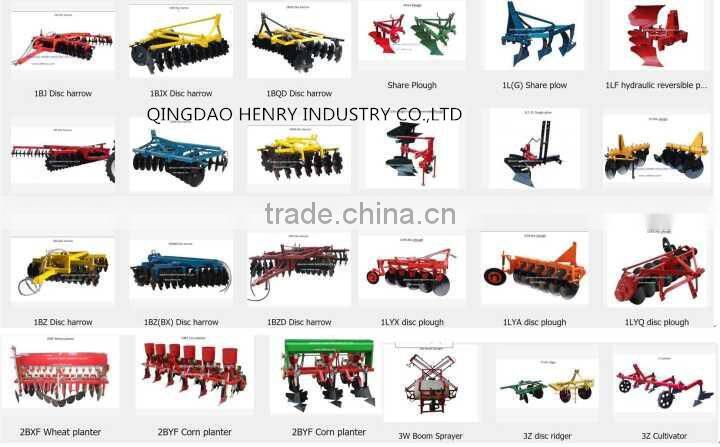

Optional tools:

WHY CHOOSE US

1. Professional supply with certification: CCC, ISO,CE,DOT and so on

2. Perfect quality program. 100% test before delivery

3. One year guarantee.

4. OEM cervice.

5. Creative design team and first class quality equipments.

6. Design and Producing be customized.

7. Flexible payment. T/T L/C D/P,WESTERN UNION be accept.

BOTA BRAND walking tractor looking for sole agnt from every country and city.

Company Profile

Qingdao Henry Industry Co., Ltd.

Qingdao Henry Industry Co.,Ltd., is one of the leading manufacturer in Shandong china for agricultural work products and industry protect products. its total assets of RMB 1 billion , employee over 1500. The farm machinery main including : Single cylinder diesel engine, two wheel tractor ,mini tillers(diesel engine and gasoline engine), four wheel tractor,rice planter and harvester machinery, and kinds of farm Acessories and so on. Tire products are including agriculture tire ,industrial tire ,implement tire ,skid steer tire rubber wheel and motorcycle tire . Kinds of Gloves,especially for RESISTANT GLOVES . In the period of development, the company is keeping on improving the internal management on the basis of market criteria, and implementing technical creation. It has completely passed the international quality system certificates, including ISO9001, QS9000, DOT & CE in compliance with American &European automobile industry standard, The products are permitted to enter international markets. exported to 70 countries & area, incl. U.S.A market and European market ,South-east Asia, Middle east, Central & South America, African, etc. We can supply large and regular products ,and also can supply many kinds and small amount products for at home and abroad friends. The quality and credit are our develop basis . HENRY GREEN MACHINERY ,HENRY GREE POWER FOR HAPPY LIFE. HIGH-QUALITY PURSUE EXCELLENT SERVICE FIRST-CLASS BRAND .
