Home > Products > Diesel Engine > one cylinder diesel engine

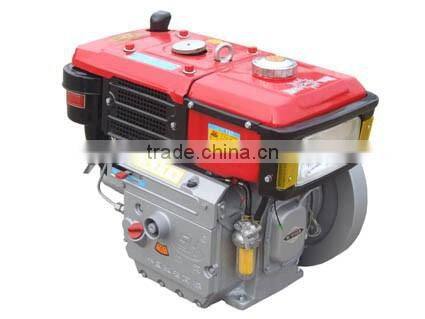

one cylinder diesel engine
- QINGDAO
- T/T D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | BOTA | |
| Model Number | ZH195 ZS1100 ZH1105N | Engine Type | Diesel | |
| Type | Engine Controller |
plywood box
Product Description
diesel engine mini tractor(ZS1100N)
Use range
It is a popular matched Engines at present ,windly use in different farm fiels.
Main application Small general sets ,air-compressor, inland ships , engineering machinery and processing machines for agricultural products and sideline products (eg. Thresher, rice mill , flour milling machine , fodder grinder)

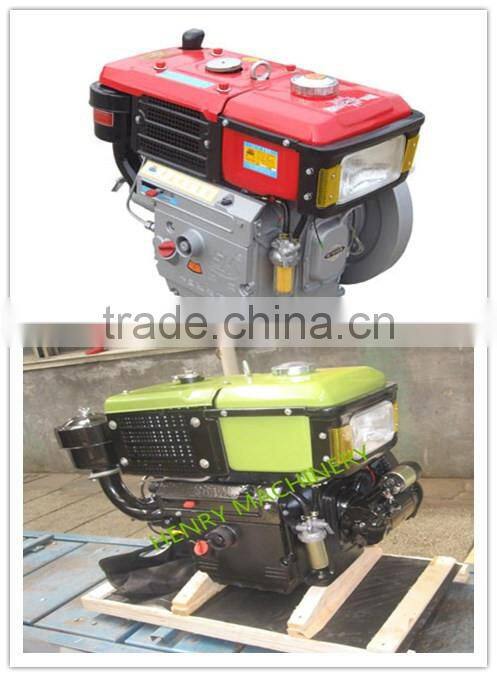

THE PHOTOS
MODEL 195- 1115(12-20HP)
Model | 195 | 1100 | 1105 | 1110 | 1115 | |
TYPE | Single cylinder, horizontal , 4 stroke ,water cooling. | |||||
Combustion system | Direct Injection | |||||
Bore x stroke(mm) | 95 x 115 | 100 x 115 | 105 x 115 | 110 x 115 | 115 x 115 | |
Total Displacement(L) | 0.815 | 0.903 | 0.996 | 1.093 | 1.194 | |
Rated Output(kw/rpm) | 8.82 | 11.03 | 12.1 | 13.24 | 14.7 | |
Max.Output(kw/rpm) | 9.7 | 12.13 | 13.31 | 14.56 | 16.17 | |
Rated speed(r/min) | 2000 | 2200 | 2200 | 2200 | 2200 | |
Specific Fuel(g/kw.h) | Less than or equal to 244.8 | Less than or equal to 246.2 | Less than or equal 246.2 | Less than or equal to 244.8 | Less than or equal to 244.8 | |
Coolingsystem comsumtion | Evaporative | Evaporative | Evaporative | Evaporative | Evaporative | |
Lubrication method | Pressure/splash | Pressure/splash | Pressure/splash | Pressure /splash | Pressure/splash | |
Starting method | Hand cranking electric cranking | Hand cranking Electric cranking | Hand cranking Electric cranking | Hand cranking Electric cranking | Hand cranking Electric cranking | |
Net weight (kg) | 148 | 153 | 155 | 180 | 183 | |
SOME POPULAR diesel engine
Single cylinder diesel engine power from 4.41kw(6hp) – 23.10kw(32hp) The main model :165/170/175/180/185/190/192/195/196 /197/1100/1105/1110/1115 /25/28/32
model R180-R185(6-8HP)
Model | R175A | R180 | R185 | R190 |
TYPE | Single cylinder, horizontal , 4 stroke ,water cooling. | |||
Combustion system | Precombustion chamber | Swirl combustion chamber | ||
Bore x stroke(mm) | 75 x 80 | 80 x 80 | 85 x 85 | 90 x 90 |
Total Displacement(L) | 0.353 | 0.402 | 0.510 | 0.573 |
Rated Output(kw/rpm) | 4.41 | 5.15 | 5.88 | 7.0 |
Max. Output(kw/rpm) | 4.85 | 5.67 | 6.46 | 7.92 |
Rated speed(r/min) | 2200 | 2200 | 2300 | 2300 |
Specific Fuel(g/kw.h) | Less than or equal to 280.2 | Less than or equal to 278.80 | Less than or equal to 275 | Less than or equal to 275 |
Cooling system consumption | Evaporative | Evaporative | Evaporative | Evaporative |
Lubrication method | Pressure/splash | Pressure/splash | Pressure/splash | Pressure /splash |
Starting method | Hand cranking electric cranking | Hand cranking Electric cranking | Hand cranking Electric cranking | Hand cranking Electric cranking |
Net weight (kg) | 68 | 72 | 95 | 95 |
Overall dimension | 435*245*332mm | 625*341*460mm | 740*400*560mm | 670*400*560mm |
MODEL 192-196(11-13.5HP)
Model | R192 | R195 | R196 |
TYPE | Single cylinder , horizontal ,4 stroke ,water cooling. | ||
Combustion system | Swirl combustion chamber | Swirl combustion chamber | |
Bore x stroke(mm) | 92 x 95 | 95 x 95 | 96x96 |
Total Displacement(L) | 0.598 | 0.67 | 0.723 |
Rated Output(kw/rpm) | 7.7 | 8.8 | 9.02 |
Max.Output(kw/rpm) | 8.47 | 9.68 | 9.92 |
Rated speed(r/min) | 2200 | 2200 | 2300 |
Specific Fuel(g/kw.h) | Less than or equal to 266.60 | Less than or equal to 258.40 | Less than or equal to 258.4 |
Coolingsystem comsumtion | Evaporative | Evaporative | Evaporative |
Lubrication method | Pressure/splash | Pressure/splash | Pressure/splash |
Starting method | Hand cranking electric cranking | Hand cranking Electric cranking | Hand cranking Electric cranking |
Net weight (kg) | 95 | 107/109 | 110 |
Overall dimension | 670*400*560mm | 710*400*570mm | 710*400*570mm |
OUR ADVANTAGE:
1. Professional supply with certification: CCC, ISO and so on
2. Perfect quality program. 100% test before delivery for every engine.
3. One year guarantee.
4. OEM service.
5. Creative design team and first class quality equipments.
6. Design and Producing be customized.
OUR COMPANY Information :
FAQ
1.Where is the factory ?
We are in Shandong Province,China.
Welcome to visit factory !
2. How many years your company ?
We spcilized in Machinery parts 12 years experience ,now we have more than 1000 workers and more than 40 toppest techinical engineers.
3. How about your price in the similar suppliers ?
Price is our big advantage ! Let 's enlarge big market together !
4.If you have warranty about the quality ?
Of course,we have it .
Our credit guarantee service system can vouch for you
5. What about the payment ?
T/T ,L/C,D/P, Western Union
Company Profile
Qingdao Henry Industry Co.,Ltd., is one of the leading manufacturer in Shandong china for agricultural work products and industry protect products. its total assets of RMB 1 billion , employee over 1500. The farm machinery main including : Single cylinder diesel engine, two wheel tractor ,mini tillers(diesel engine and gasoline engine), four wheel tractor,rice planter and harvester machinery, and kinds of farm Acessories and so on. Tire products are including agriculture tire ,industrial tire ,implement tire ,skid steer tire rubber wheel and motorcycle tire . Kinds of Gloves,especially for RESISTANT GLOVES . In the period of development, the company is keeping on improving the internal management on the basis of market criteria, and implementing technical creation. It has completely passed the international quality system certificates, including ISO9001, QS9000, DOT & CE in compliance with American &European automobile industry standard, The products are permitted to enter international markets. exported to 70 countries & area, incl. U.S.A market and European market ,South-east Asia, Middle east, Central & South America, African, etc. We can supply large and regular products ,and also can supply many kinds and small amount products for at home and abroad friends. The quality and credit are our develop basis . HENRY GREEN MACHINERY ,HENRY GREE POWER FOR HAPPY LIFE. HIGH-QUALITY PURSUE EXCELLENT SERVICE FIRST-CLASS BRAND .
