Small Diesel Engine Water Cooled

FOB Price

US$ 100 - 500 / Piece

10 Pieces(Min. Order)

Port QINGDAO
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	BOTA
Model Number	R190-S195N	Engine Type	Diesel
Type	Engine Controller

Packaging Details

plywood box

Product Description

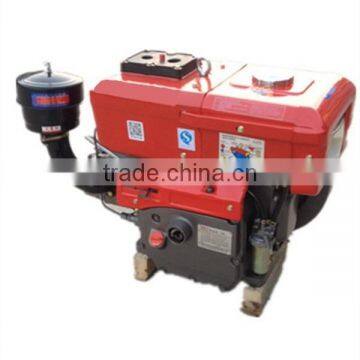

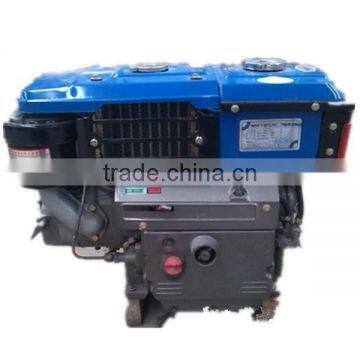

small diesel engine water cooled

Use range

It is a popular matched Engines at present ,windly use in different farm fiels.

Main application Small general sets ,air-compressor, inland ships , engineering machinery and processing machines for agricultural products and sideline products (eg. Thresher, rice mill , flour milling machine , fodder grinder)

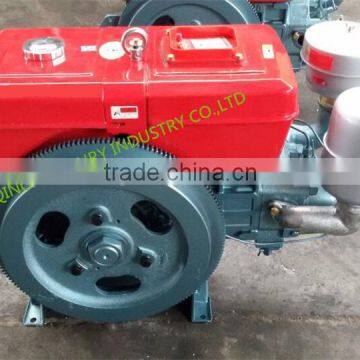

THE PHOTOS

MODEL 195- 1115(12-20HP)

Model	195		1100	1105	1110	1115
TYPE	Single cylinder, horizontal , 4 stroke ,water cooling.
Combustion system	Direct Injection
Bore x stroke(mm)	95 x 115	100 x 115		105 x 115	110 x 115	115 x 115
Total Displacement(L)	0.815	0.903		0.996	1.093	1.194
Rated Output(kw/rpm)	8.82	11.03		12.1	13.24	14.7
Max.Output(kw/rpm)	9.7	12.13		13.31	14.56	16.17
Rated speed(r/min)	2000	2200		2200	2200	2200
Specific Fuel(g/kw.h)	Less than or equal to 244.8	Less than or equal to 246.2		Less than or equal 246.2	Less than or equal to 244.8	Less than or equal to 244.8
Coolingsystem comsumtion	Evaporative	Evaporative		Evaporative	Evaporative	Evaporative
Lubrication method	Pressure/splash	Pressure/splash		Pressure/splash	Pressure /splash	Pressure/splash
Starting method	Hand cranking electric cranking	Hand cranking Electric cranking		Hand cranking Electric cranking	Hand cranking Electric cranking	Hand cranking Electric cranking
Net weight (kg)	148	153		155	180	183

SOME POPULAR diesel engine

Single cylinder diesel engine power from 4.41kw(6hp) – 23.10kw(32hp) The main model :165/170/175/180/185/190/192/195/196 /197/1100/1105/1110/1115 /25/28/32

MODEL 192-196(11-13.5HP)

Model	R192	R195	R196
TYPE	Single cylinder , horizontal ,4 stroke ,water cooling.
Combustion system	Swirl combustion chamber		Swirl combustion chamber
Bore x stroke(mm)	92 x 95	95 x 95	96x96
Total Displacement(L)	0.598	0.67	0.723
Rated Output(kw/rpm)	7.7	8.8	9.02
Max.Output(kw/rpm)	8.47	9.68	9.92
Rated speed(r/min)	2200	2200	2300
Specific Fuel(g/kw.h)	Less than or equal to 266.60	Less than or equal to 258.40	Less than or equal to 258.4
Coolingsystem comsumtion	Evaporative	Evaporative	Evaporative
Lubrication method	Pressure/splash	Pressure/splash	Pressure/splash
Starting method	Hand cranking electric cranking	Hand cranking Electric cranking	Hand cranking Electric cranking
Net weight (kg)	95	107/109	110
Overall dimension	670400560mm	710400570mm	710400570mm

model R180-R185(6-8HP)

Model	R175A	R180	R185	R190
TYPE	Single cylinder, horizontal , 4 stroke ,water cooling.
Combustion system	Precombustion chamber		Swirl combustion chamber
Bore x stroke(mm)	75 x 80	80 x 80	85 x 85	90 x 90
Total Displacement(L)	0.353	0.402	0.510	0.573
Rated Output(kw/rpm)	4.41	5.15	5.88	7.0
Max. Output(kw/rpm)	4.85	5.67	6.46	7.92
Rated speed(r/min)	2200	2200	2300	2300
Specific Fuel(g/kw.h)	Less than or equal to 280.2	Less than or equal to 278.80	Less than or equal to 275	Less than or equal to 275
Cooling system consumption	Evaporative	Evaporative	Evaporative	Evaporative
Lubrication method	Pressure/splash	Pressure/splash	Pressure/splash	Pressure /splash
Starting method	Hand cranking electric cranking	Hand cranking Electric cranking	Hand cranking Electric cranking	Hand cranking Electric cranking
Net weight (kg)	68	72	95	95
Overall dimension	435245332mm	625341460mm	740400560mm	670400560mm

OUR ADVANTAGE:

1. Professional supply with certification: CCC, ISO and so on

2. Perfect quality program. 100% test before delivery for every engine.

3. One year guarantee.

4. OEM service.

5. Creative design team and first class quality equipments.

6. Design and Producing be customized.

OUR COMPANY Information :

FAQ

1.Where is the factory ?

We are in Shandong Province,China.

Welcome to visit factory !

2. How many years your company ?

We spcilized in Machinery parts 12 years experience ,now we have more than 1000 workers and more than 40 toppest techinical engineers.

3. How about your price in the similar suppliers ?

Price is our big advantage ! Let 's enlarge big market together !

4.If you have warranty about the quality ?

Of course,we have it .

Our credit guarantee service system can vouch for you

5. What about the payment ?

T/T ,L/C,D/P, Western Union

Company Profile

Qingdao Henry Industry Co., Ltd.

Qingdao Henry Industry Co.,Ltd., is one of the leading manufacturer in Shandong china for agricultural work products and industry protect products. its total assets of RMB 1 billion , employee over 1500. The farm machinery main including : Single cylinder diesel engine, two wheel tractor ,mini tillers(diesel engine and gasoline engine), four wheel tractor,rice planter and harvester machinery, and kinds of farm Acessories and so on. Tire products are including agriculture tire ,industrial tire ,implement tire ,skid steer tire rubber wheel and motorcycle tire . Kinds of Gloves,especially for RESISTANT GLOVES . In the period of development, the company is keeping on improving the internal management on the basis of market criteria, and implementing technical creation. It has completely passed the international quality system certificates, including ISO9001, QS9000, DOT & CE in compliance with American &European automobile industry standard, The products are permitted to enter international markets. exported to 70 countries & area, incl. U.S.A market and European market ,South-east Asia, Middle east, Central & South America, African, etc. We can supply large and regular products ,and also can supply many kinds and small amount products for at home and abroad friends. The quality and credit are our develop basis . HENRY GREEN MACHINERY ,HENRY GREE POWER FOR HAPPY LIFE. HIGH-QUALITY PURSUE EXCELLENT SERVICE FIRST-CLASS BRAND .
