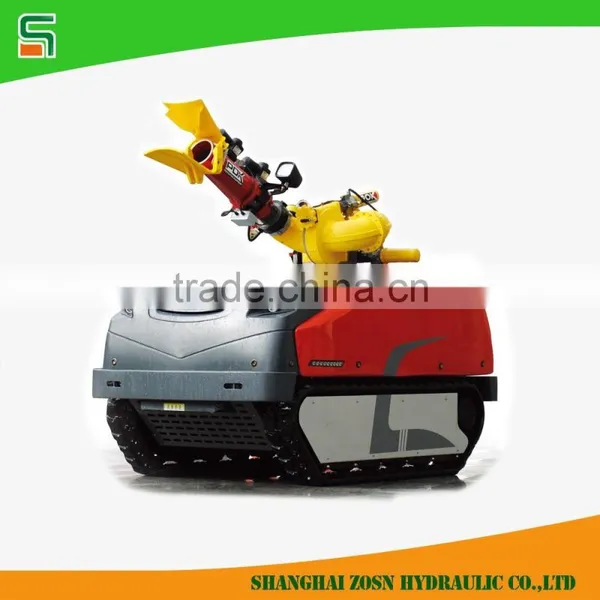

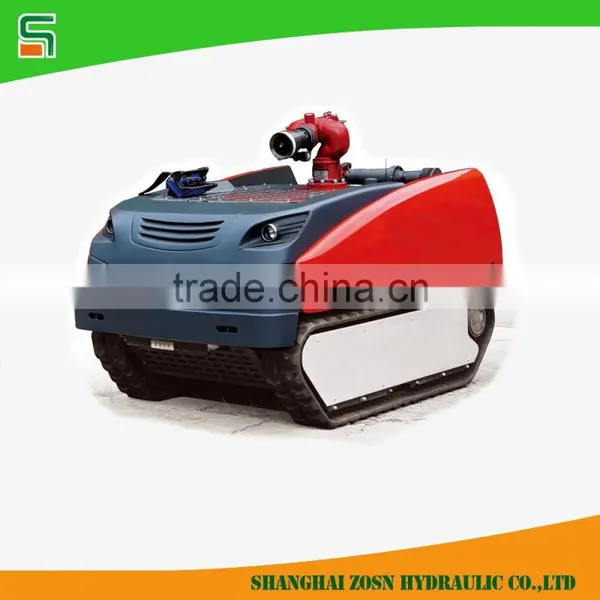

Fire control robot with water monitor

Name: Fire control robot with water monitor
Brand: ZOSN
Availability: InStock

FOB Price

US$ 40,000 - 50,000 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

ZOSN

Model Number

M60D

Product Description

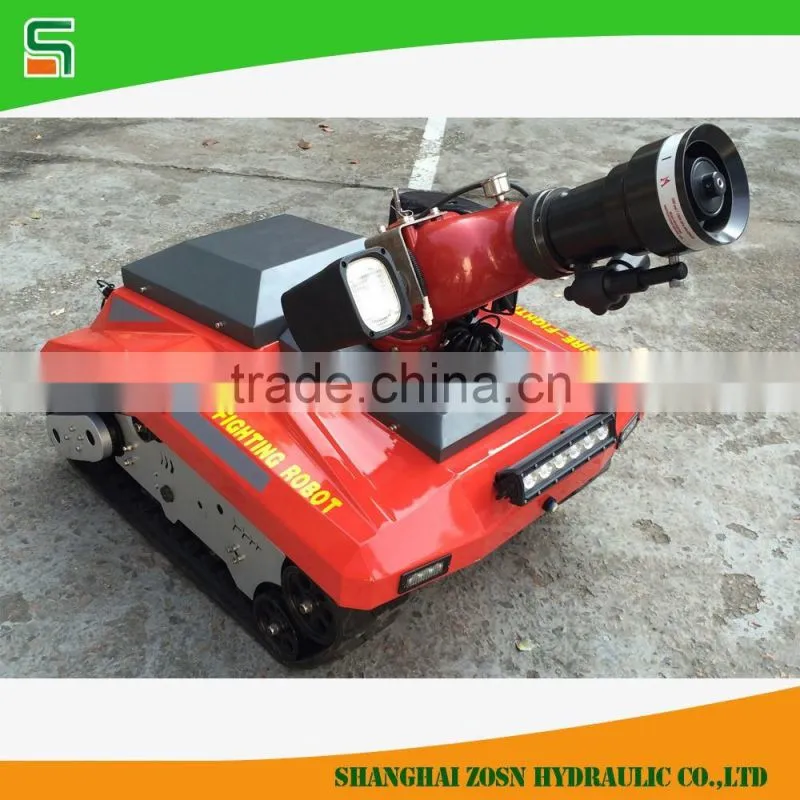

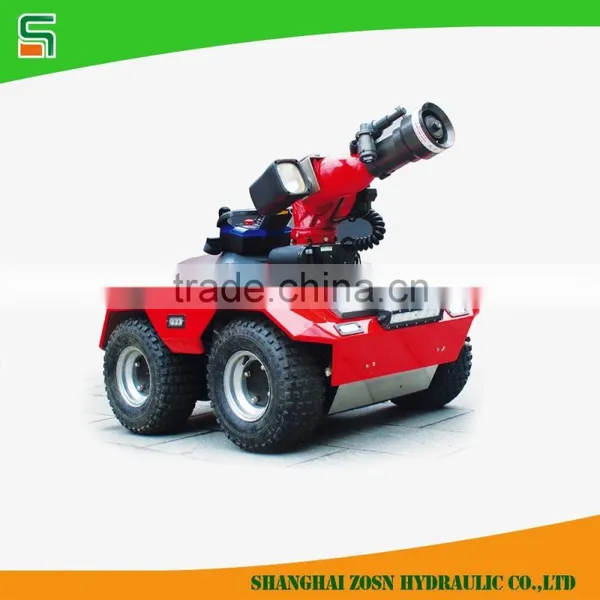

M60D Fire fighting robot

Details

Application

Fire-fighting in tunnel,subway station,underground facility,wide-span place,petrochemical industry,large area poison gas and smoke,and other fire hazard which is difficult for human to reach.

Features:

M60D with 60L/s water cannon,powered by Lithium battery,driven by DC motor,using ATV tracks,is very flexible.It can turn at original point,climb slope and stairs,has great performance in complex terrain.

Parameters

1.Chassis

Ground clearance	115mm
Grade-ability	30°slope
Total weight	180Kg
LxWxH	1150×800×760 mm
Traveling speed	0-6km/h (stepless speed change)
Over-obstacle	150mm
Fording depth	200mm
Battery life	1-6hrs(optional)
Motor	2*880W/48V
Lighting	2*30W LED
Water cannon lighting	55W/24V HID
Controlling	Wireless remote control(≥300m)
Self protection	Water mist system

2.Fire-fighting system

Water cannon	AKRON3482+5177(optional)
Pressure(MPa)	0.8
Rated flow(L/s)	60(adjustable)
Water range(m)	≥65
Rotation angle(°)	330
Elevation angle(°)	-20~80
Hose connection	80
Spray angle(°)	120

3.Detecting system(optional)

Video transmitting system,poison gas detection system,target distance detection,infrared video camera,

biological detection system.

Smart tool.Keep humans out of hazard.
