Specifications
PIV chainISO9001 factory
short delivery time
good price good quality
small order acceptable
PIV chain
ISO9001 factory
short delivery time
good price good quality
small order acceptable

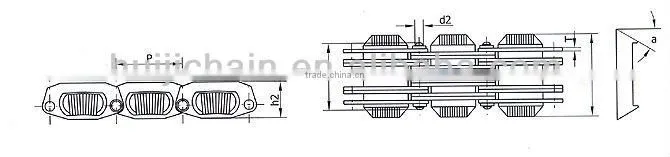

DIN ISO | Pitch | Pin | Pin | Plate depth | Plate thickss | Width over friction plate | Angle of | Ultimate | Average | Weight |
P | d2 | L | h2 | T | Lf | a | Q | Q0 | q | |
mm | mm | mm | mm | mm | mm | n | kN | kN | kg/m | |
A0 | 18.75 | 3.00 | 19.5 | 9.5 | 1.0 | 24.0 | 15 | 9.0 | 9.9 | 1.00 |
A1(A2) | 25.0 | 3.00 | 30.1 | 13.5 | 1.5 | 37.8 | 15 | 21.0 | 23.3 | 2.23 |
A3 | 28.6 | 3.00 | 35.3 | 16.0 | 1.5 | 44.2 | 15 | 38.5 | 42.7 | 3.04 |
A4 | 36.0 | 4.00 | 48.5 | 20.5 | 1.5 | 58.5 | 15 | 61.5 | 68.2 | 5.54 |
A5 | 36.0 | 4.00 | 60.5 | 20.5 | 1.5 | 70.0 | 15 | 71.0 | 78.8 | 6.70 |
Send Inquiry to This Supplier
