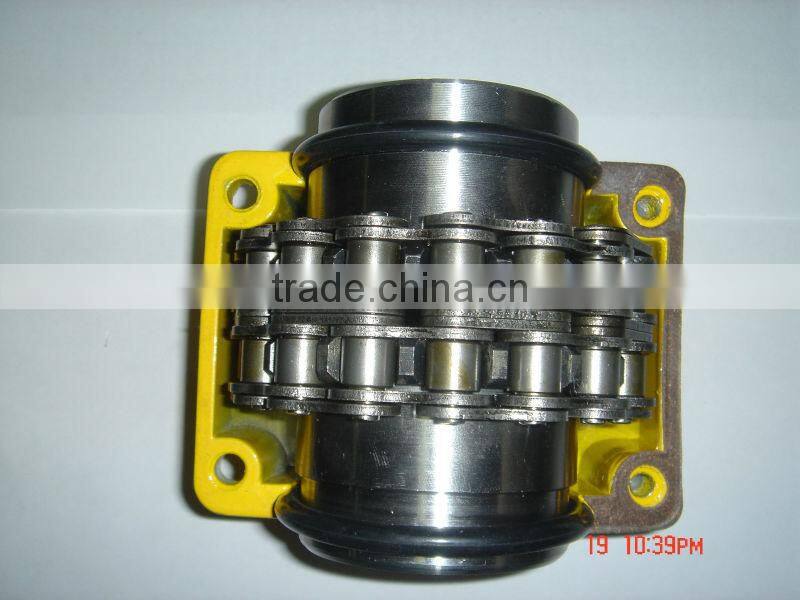

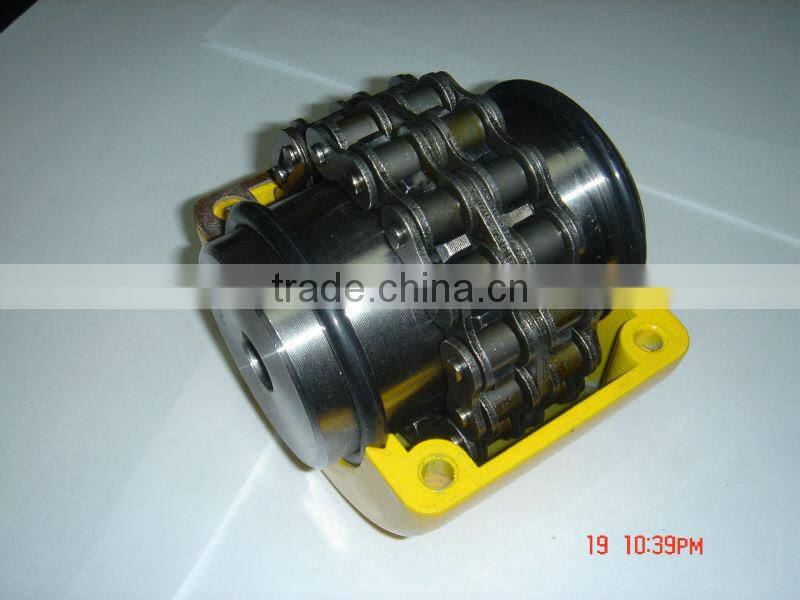

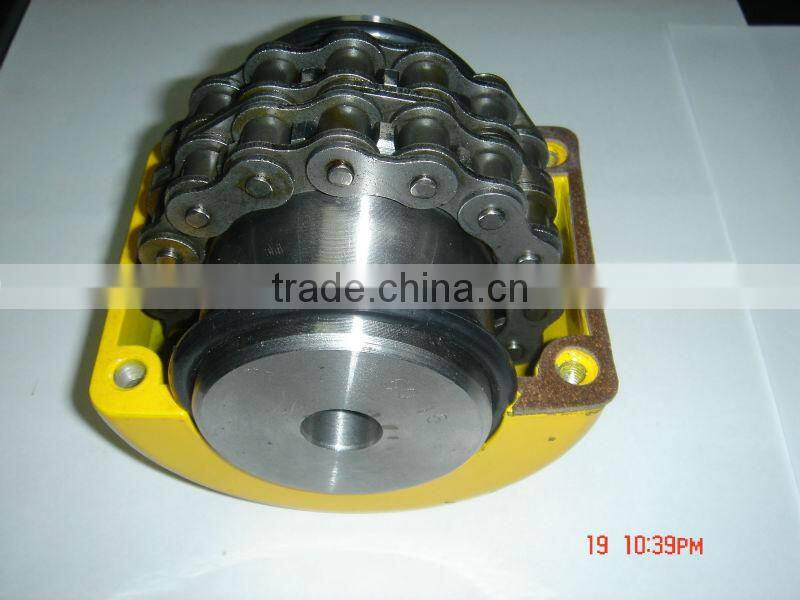

Home > Industrial Equipment & Components > Power Transmission Parts > Shaft Coupling > KC Chain Couplings 5016 Chain Coupling Roller Chain Coupling
US$ 5 - 10
MOQ: 1 Set
Key Specifications
Get Latest Price
Structure:
Universal
Flexible or Rigid:
Rigid
Standard or Nonstandard:
Standard
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-

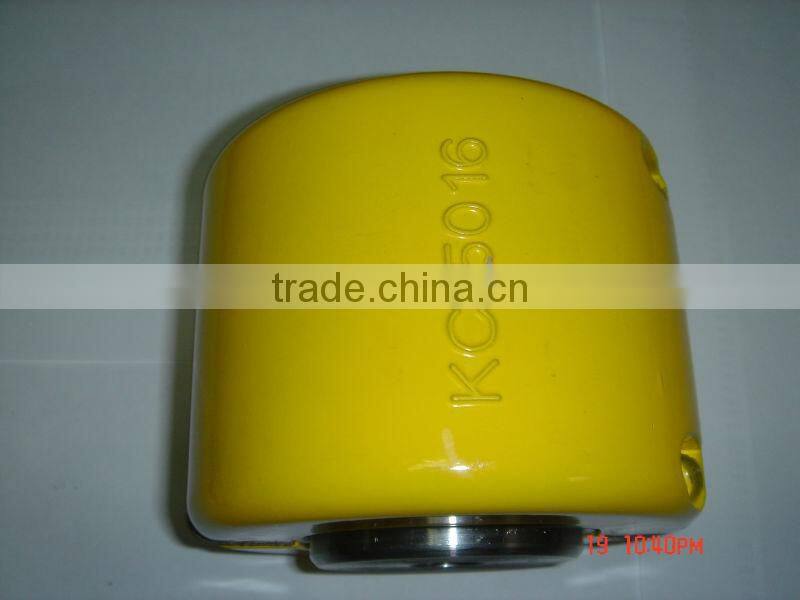

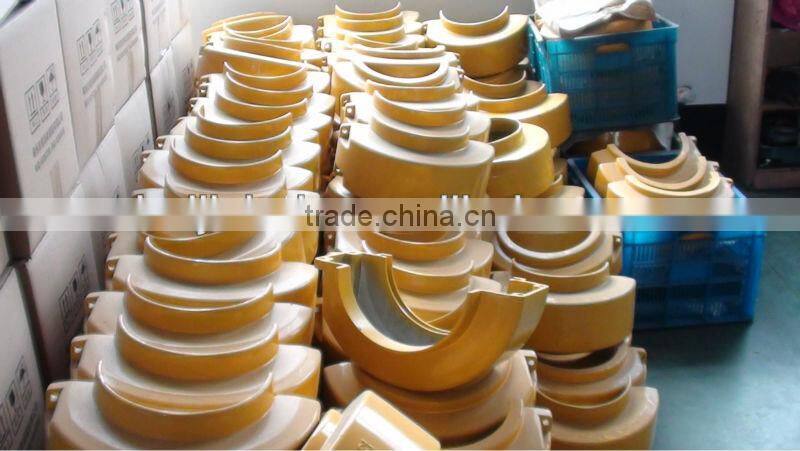

Outer Casing for KC Chain Coupling Cover for KC Chain CouplingsUS$ 1 - 20MOQ: 1 Set -
kc Coupling 5016 Chain Coupling Roller Chain CouplingUS$ 5 - 10MOQ: 1 Piece
-
Shaper Sprocket Hob Gear Hob Cutter Involute Gear Hob CutterUS$ 1,000 - 5,000MOQ: 1 Piece
-
Shaper Sprocket Hob Gear Hob CutterUS$ 100 - 500MOQ: 1 Piece
-
Shaper Sprocket Hob Gear HobUS$ 1,000 - 1,200MOQ: 1 Piece
Structure
Universal
Flexible or Rigid
Rigid
Standard or Nonstandard
Standard
Material
Other, Al and steel
Brand Name
HUIJI
Place of Origin
Zhejiang, China
Model Number
KC5018
Specifications
KC chain couplingsStandard quality low price
ISO9001 manufacture
small qty accept
fastest delivery time
KC chain couplings
Standard quality low price
ISO9001 manufacture
small qty accept
fastest delivery time
We produce chain coupling and nylon type coupling:
40-14,48-19....98-48, 4012,4014,4016....32022
| Catalog | applicable range of shaft | pilot | A | d | o | L | I | S | B | C | Max anglar (degree) | Bolt | Max Torque (Nm) | Max revolution (rpm) | Moment of inertia (kg.c | Requrie amount of grease(kg) | G(kg) |
| KC-3012 KC-4012 KC-4014 KC-4016 KC-5014 | 12-16 | 12 | 69 | 25 | 45 | 64.8 | 29.8 | 5.2 | 63 | 10.2 | 1° | M6 | 190 | 500 | 3.7 | 0.1 | 0.4 |
| 12-22 | 12 | 77 | 33 | 62 | 79.4 | 36 | 7.4 | 72 | 14.4 | M6 | 249 | 480 | 5.5 | 0.1 | 0.8 | ||
| 12-28 | 12 | 84 | 43 | 69 | 79.4 | 36 | 7.4 | 75 | 14.4 | M6 | 329 | 480 | 9.7 | 0.13 | 1.1 | ||
| 14-32 | 14 | 92 | 48 | 77 | 87.4 | 40 | 7.4 | 75 | 14.4 | M6 | 419 | 480 | 14.4 | 0.17 | 1.4 | ||
| 15-35 | 14 | 101 | 53 | 86 | 99.7 | 45 | 9.7 | 85 | 18.1 | M8 | 620 | 360 | 28 | 0.22 | 2.2 | ||
| KC-5016 | 16-40 | 16 | 111 | 60 | 93 | 99.7 | 45 | 9.7 | 85 | 18.1 | 1° | M8 | 791 | 3600 | 37 | 0.26 | 2.7 |
| KC-5018 | 16-45 | 16 | 122 | 70 | 106 | 99.7 | 45 | 9.7 | 85 | 18.1 | M8 | 979 | 3000 | 56.3 | 0.36 | 3.8 | |
| KC-6018 | 20-56 | 20 | 142 | 85 | 127 | 123.5 | 56 | 11.5 | 105 | 22.8 | M10 | 1810 | 2500 | 137.3 | 0.5 | 6.2 | |
| KC-6020 | 20-60 | 20 | 158 | 98 | 139 | 123.5 | 56 | 11.5 | 105 | 22.8 | M10 | 2210 | 2500 | 210.2 | 0.6 | 7.8 | |
| KC-6022 | 20-71 | 20 | 168 | 110 | 151 | 123.5 | 56 | 11.5 | 117 | 22.8 | M10 | 2610 | 2500 | 295 | 0.7 | 10.4 | |
| KC-8018 | 20-80 | 20 | 190 | 110 | 169 | 141.2 | 63 | 15.2 | 129 | 29.3 | 1° | M12 | 3932 | 2000 | 520 | 0.9 | 12.7 |
| KC-8020 | 20-90 | 20 | 210 | 121 | 185 | 145.2 | 65 | 15.2 | 137 | 29.3 | M12 | 4800 | 2000 | 812.4 | 1.1 | 16 | |
| KC-8022 | 20-100 | 20 | 226 | 140 | 202 | 157.2 | 71 | 15.2 | 137 | 29.3 | M12 | 5640 | 1800 | 1110 | 1.2 | 20.2 | |
| KC-10020 | 25-110 | 25 | 281 | 160 | 233 | 178.8 | 80 | 18.8 | 153 | 35.8 | M12 | 8400 | 1800 | 2440 | 1.8 | 33 | |
| KC-12018 | 35-125 | 35 | 307 | 170 | 256 | 202.7 | 90 | 22.7 | 181 | 45.4 | M12 | 12700 | 1500 | 3940 | 3.2 | 47 | |
| KC-12022 | 35-140 | 35 | 357 | 210 | 304 | 222.7 | 100 | 22.7 | 181 | 45.4 | M12 | 18300 | 1250 | 7810 | 4.4 | 72 | |
| KC-16018 | 63-160 | 53 | 375 | 228 | 340 | 254.1 | 112 | 30.1 | 240 | 58.5 | M16 | 26400 | 1100 | 14530 | 7.2 | 108 | |
| KC-16022 | 80-200 | 70 | 440 | 279 | 405 | 310 | 140 | 30.1 | 245 | 58.5 | M16 | 38100 | 1000 | 32220 | 9.9 | 187 | |
| KC-20018 | 80-205 | 75 | 465 | 289 | 425 | 437.5 | 200 | 37.5 | 285 | 71.6 | M20 | 54100 | 800 | 50980 | 11.8 | 286 | |
| KC-20022 | 100-255 | 90 | 545 | 363 | 526 | 477.5 | 220 | 37.5 | 300 | 71.6 | M20 | 77800 | 600 | 111100 | 15.8 | 440 | |
| KC-24022 | 120-310 | 110 | 650 | 448 | 607 | 650 | 302.5 | 45 | 340 | 87.8 | M20 | 137000 | 600 | 310000 | 21.9 | 869 | |
| KC-24026 | 150-360 | 140 | 745 | 526 | 704 | 700 | 327.5 | 45 | 350 | 87.8 | M20 | 186000 | 500 |
