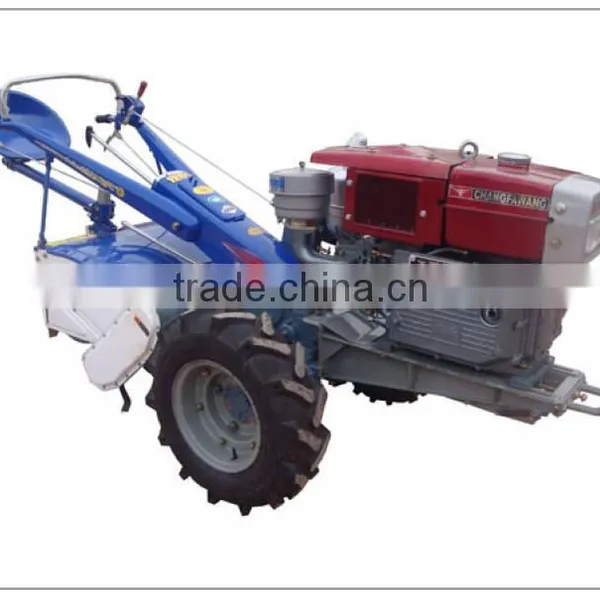

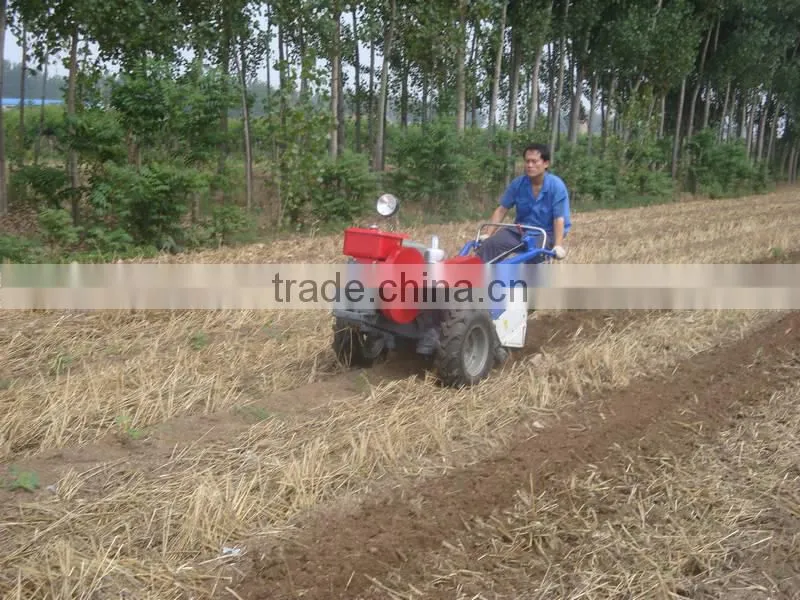

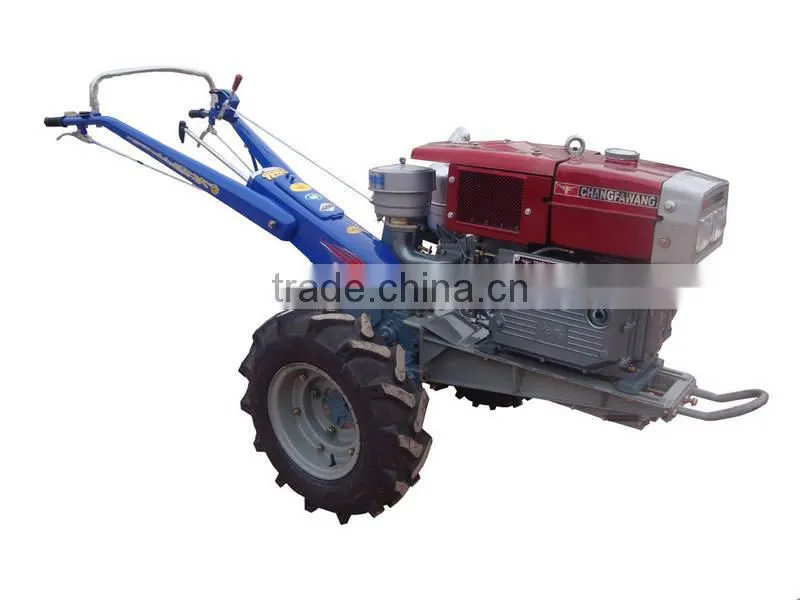

Walking Tractor,farm Tractor,agriculture Tractor,cheap Farm Tractor(RD-18)
Specifications
DF type,18hp walking tractor with diesel engine,electric starter,can conduct many farm work with different accessories.DF type. 18HP walking tractor with diesel engine, can be with electric starter, and with different accachments, can conduct different work. Easy to operate. Very good performance.
DF181 agriculture machinery specification:
|
Engine |
Pattern |
Vertical, One Cylinder, Four Stroke, Diesel powered, Water-cooled |
Model |
1105 |
|
Displacement(L) |
1.194 |
|
|
Oil Consumption (g/ km. h) |
320 |
|
Engine Oil Consumption (g/ km. h) |
2.72 |
|
Rated Power(kw) |
13.23 |
|
Rated Speed(rpm) |
2000 |
|
|
Machine Parameters |
Type |
Pull and Drive |
Overall Size(mm) |
2680*960*1250(without seat) |
|
Wheel Tread(mm) |
800 |
|
Minimum Ground Clearance(mm) |
185 |
|
Minimum Turning Radius(m) |
0.9 |
|
Structural Weight(kg) |
360 (with connecting frame), 480(with rotary tiller) |
|
Tyre |
6.00-12 |
|
Theoretical Speed(km/h) |
Forward:1.4,2.5,4.1,5.3,9.4,15.3 Reverse:1.0,3.8 |
|
Rated Traction(N) |
2400 |
|
Gearbox |
(3+1)×2 |
|
Oil Type |
0# in summer,-10 or 20 in winter |
|
Cooling Type |
Evaporation |
|
Rear-Wheel Diameter(mm) |
340 |
