Home > Products > Blade for Cutting Tube > tungsten carbide cutting disc blades for tube

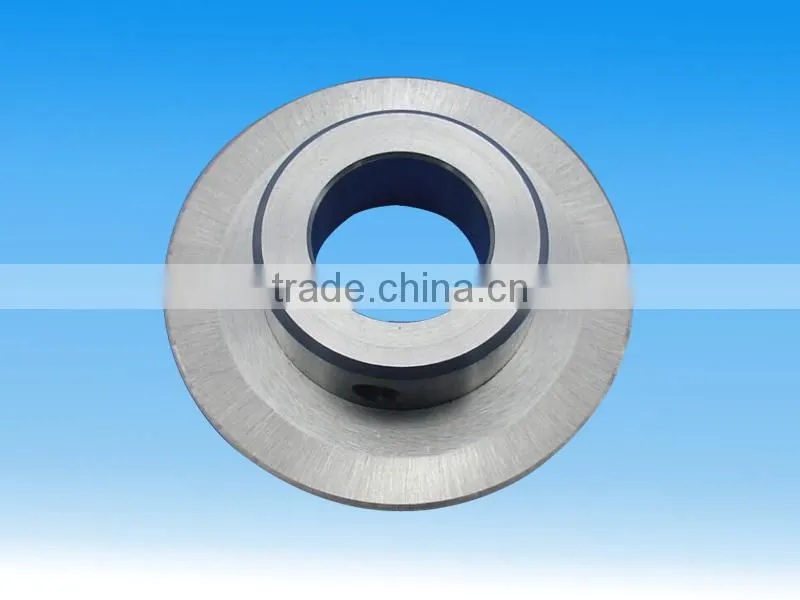

tungsten carbide cutting disc blades for tube
- 500 Piece / Pieces per Month
- Xiamen
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
Place of Origin | Fujian, China | Brand Name | Huanxin | |
Model Number | JX-188 |
Product Description
tungsten carbide cutting disc blades for tube:
tungsten carbide cutting disc blades for tube We produce knives with close attention paid to every detail. We deliver knives that have exacting tolerances. Toothed packaging cutting blade/machine knife The raw material selections, bevel angles, heat treatment, and grinding are closely controlled to consistently deliver high-quality knives that perform even better than they look.
Need a replacement tungsten carbide cutting disc blades for tube ? We’ll manufacture them to your exact specifications for any application. And we guarantee they will outperform and outlast the competition time and time again.
MATERIALS FOR CHOICE | |||||||||||||
GB | ASTM | JIS | DIN | W-Nr | NF | POCT | SS14 | BS | ISO | ||||
9CrSi | - | - | 90CrSi5 | 1.2108 | - | 9XC | 2090 | - | - | ||||
6CrW2Si | - | - | -60WCrV7 | 1.2550 | (-55WC20) | 6XB2C | - | - | -60WCrV2 | ||||
Cr12MoV | - | SKD11 | X165CrMoV12 | 1.2601 | - | X12M | 2310 | - | - | ||||
Cr12Mo1V1 | D2 | - | X155CrVMo12-1 | 1.2379 | X160CrMov12 | - | - | BD2 | 160CrMoV12 | ||||
4Cr5MoSiV1 | H13 | SKD61 | X40CrMoV5-1 | 1.2344 | X40CrMoV5 | 4X5M ∅ 1C | - | BH13 | 40CrMoV5 | ||||
LD | - | - | - | - | - | - | - | - | - | ||||
W18Cr4V | T1 | SKH2 | S 18-0-1 | 1.3355 | HS 18-0-1 | P18 | 2750 | BT1 | HS 18-0-1 | ||||
W6Mo5Cr4V2 | M2 | SKH9 | S 6-5-2 | 1.3343 | - | P6M5 | 2722 | BM2 | HS 6-5-2 | ||||
45 | 1450 | S45C | C45E | 1.1191 | C45E | 45 | 1660 | C40E | C45EC | ||||
42CrMo | 4140 | SCM440 | 42CrMo4 | 1.7225 | 42CD4 | - | 2244 | 708M40 | 42CrMo4 | ||||
T8 | W1A-8 | SK5 | C80W2 | 1.1625 | (C80E2U) | Y6 | 1778 | - | TC80 |
Specification | Out diameter(mm) | Inner diameter(mm) | Thickness(mm) |
∅200×∅122×1.3 | 200 | 122 | 1.3 |
∅210×∅122×1.3 | 210 | 122 | 1.3 |
∅230×∅110×1.3 | 230 | 110 | 1.3 |
∅230×∅130×1.3 | 230 | 130 | 1.3 |
∅240×∅32×1.2 | 240 | 32 | 1.2 |
∅240×∅32×1.2 | 240 | 32 | 1.2 |
∅250×∅105×1.35 | 250 | 105 | 1.35 |
∅250×∅130×1.35 | 250 | 130 | 1.35 |
∅260×∅112×1.4 | 260 | 112 | 1.4 |
∅260×∅114×1.35 | 260 | 114 | 1.35 |
∅260×∅158×1.35(hole) | 260 | 158 | 1.35 |
∅260×∅158×1.35(non-hole) | 260 | 158 | 1.35 |
∅260×∅168.3×1.5 | 260 | 168.3 | 1.5 |
∅270×∅168.3×1.5 | 270 | 168.3 | 1.5 |
∅280×∅168×1.4 | 280 | 168 | 1.4 |
∅280×∅202×1.4 | 280 | 202 | 1.4 |
∅300×∅112×1.35 | 300 | 112 | 1.35 |
: | : | : | : |
∅610×∅68.3×4.7 | 610 | 68.3 | 4.7 |
Specification | Out diameter(mm) | Inner diameter(mm) | Thickness(mm) |
∅610×∅68.26×4.76 | 610 | 68.26 | 4.76 |
∅610×∅68.26×3.80 | 610 | 68.26 | 3.80 |
∅610×∅82.55×4.76 | 610 | 82.55 | 4.76 |
∅610×∅82.55×3.80 | 610 | 82.55 | 3.80 |
∅610×∅100.0×4.76 | 610 | 100.0 | 4.76 |
∅610×∅100.0×3.80 | 610 | 100.0 | 3.80 |
: | : | : | : |
tungsten carbide cutting disc blades for tube product process production
tungsten carbide cutting disc blades for tube
Payment Terms:
♦ 30%−50% down payment in advance and the balance before shipment.
♦ Paypal,Westen Union,T/T, Unionpay ,Excrow Service,Visa,LC,etc.
Samples Offering:
♦ Samples is available.
♦ Freight collect.
Delivery Time:
♦ 5-10 Days For Few Quantity.
15-25 Days For Large Quantity.
♦ Personalized Customization Is Acceptable.
Transportation:
*5-10 Days by Express.(UPS,DHL,TNT,FedEX,EMS,etc.)
*2-3 days by Air (EXW,FOB,FCA,CIF,CPT,DAF,DDP etc.)
*25-45 days by Sea (EXW,FOB,FCA,CIF,CPT,DAF,DDP etc.)
tungsten carbide cutting disc blades for tube Material and hardness are much important to the work life for blades, according to over 10 years experience, Xiamen Huanxin will provide you professional advice and recommend you best material and hardness according to the applications of blades with competitive price.
We can custom made blades according to your drawing or description. In order to provide prompt and accurate quotation, it's better that you can provide us the quantity, drawings, cutting application and etc of blades.
All of your inquiry and emails will be replied within 24 hours. We believe No excuse for failure, only the action for success. You are welcome to visit our factory.
1, What is your capacity?
Both our heat treatment facility and grinding machines allow for straight knives up to 7 meters (or 275 inches) long, no segment
at all, in a single piece, while for circular knives up to 1500mm in O.D.
2, How do you guarantee your quality?
Material selection and hardness survey are critical for blade quality. We were formally engaged in forging, and had a good command of mechanics and property of different tool steels. Inspection on incoming materials is furthermore well taken care of. Long-term raw providers physically near to us, that help make us more competitive, ensured quality. We are serious and all our blades parts are always forged while those parts from most of our competitors are not.
3, Do you handle shipments?
Definitely yes. Usually in a quotation sheet, an Ex factory price is offered. We are, however, happy to offer FOB POL (Port of Loading) or CIF POD (Port of Destination) as requested. As a manufacturer, we have more shipments to handle than you do, and this advantage enables us to get better rates, which in turn we get back to you. Besides, we have better connections to handle custom inspection and unexpected conditions.
Xiamen Huanxin Machine is a manufacturer of standard and precision circular and rectangular replacement industrial machine cutting blades for all levels of the paper, paperboard and corrugated industries over ten years. Huanxin provides machine knives to manufacturers and converters of plastics, laminates, flexible materials, films, foils, thin metals, non-woven materials, textile, tire and rubber materials to circuit boards, synthetic components, roofing materials, and more.
Based on rich manufacturing experience and strong technology, strict management and quality inspection systems, quality and delivery time are ensured. For every one of the product to be made, Huanxin will take the most responsible attitude in this field to fit customer's specific applications to maximize production requirements.
Here is my contact information,as below:
Website: /
Skype:arlene.ping6850
WhatsApp/Tel:+8615396506850
Email:arlene at
Contact Us
- Xiamen Huanxin Machine Co., Ltd.
- Contact nameArlene Lin Chat Now
- Phone86-0592-5790287
- AddressRoom7045,No.73-74, Huan Road, Heshan Street, Huli District,Xiamen, Xiamen, Fujian
