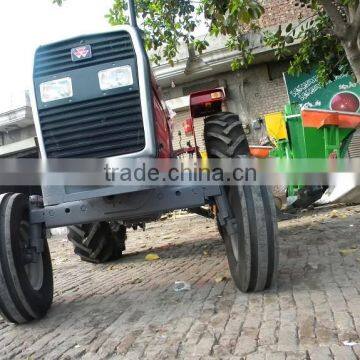

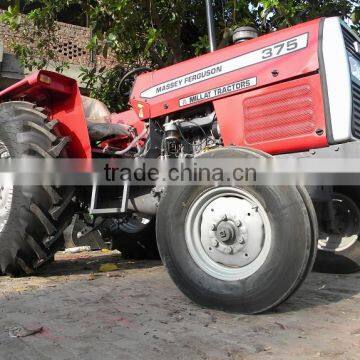

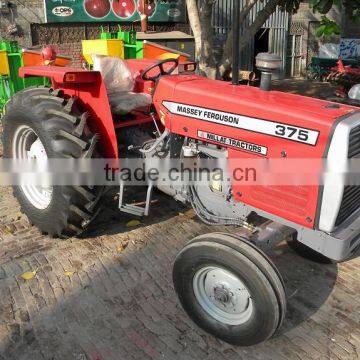

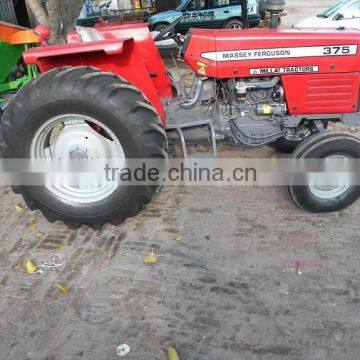

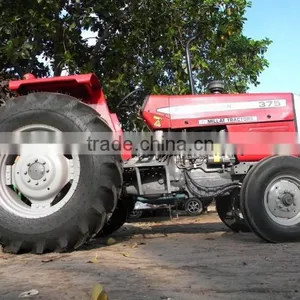

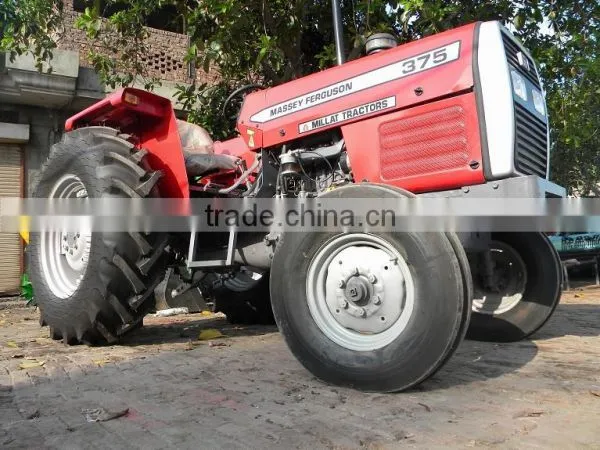

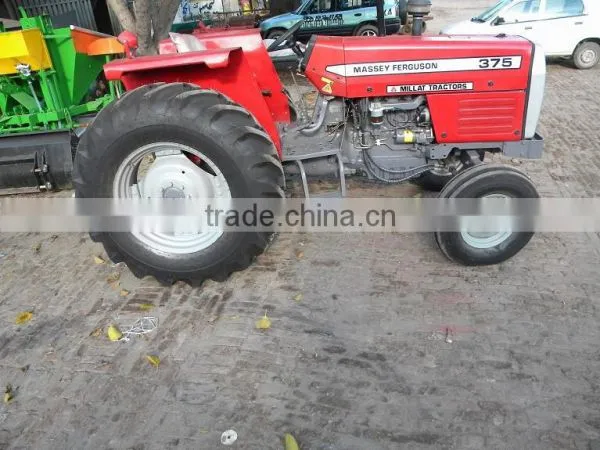

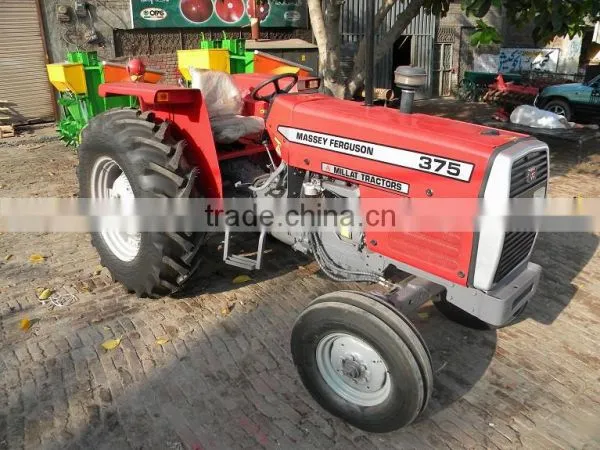

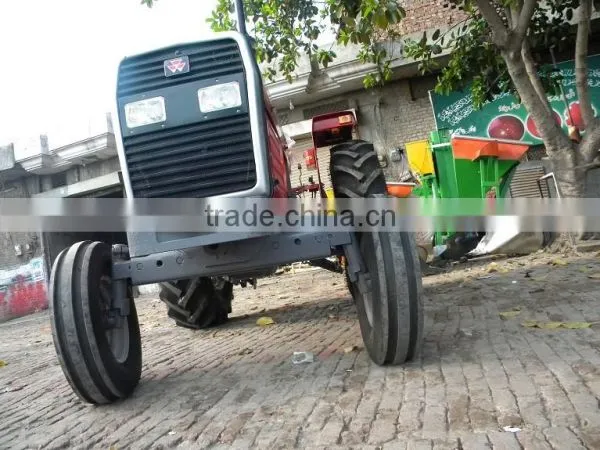

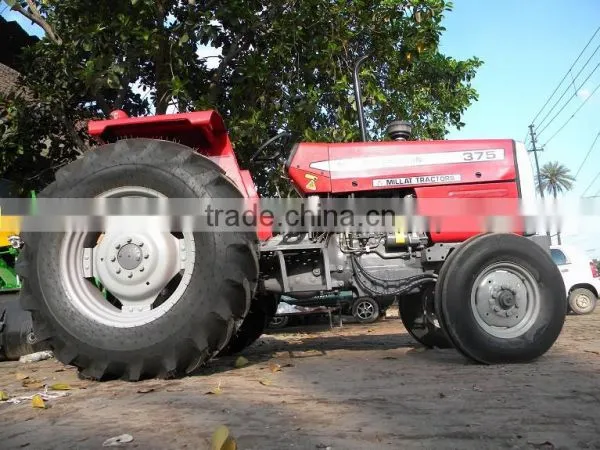

Massey Ferguson MF 375 Tractor 2WD 75HP

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Port Karachi
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other
By wheel	2WD	Usage	Farm Tractor
Drive Type	Gear Drive	Power(W)	75 HP
Certificate	EPA	Brand Name	Massey Ferguson Tractor
Model Number	MF 375	Place of Origin	Pakistan
After-sales Service Provided	Overseas third-party support available

Product Description

PERFORMANCE:

Rated Engine Power**75 BS HP
@ 2200 rev/min**(71 DIN PS) 58.2 KW
Max. Engine Torque @ 1400 rev/min 267 Nm (218 Lbf ft)
Max. P.T.O. HP @ rated Engine Speed*** 64.0 Ps (47.1 KW) * Manufacturer's Estimate

ENGINE:

Make/Type Perkins/A 4.41
No. of Cylinders 4
Injection Direct Injection Diesel
Bore 101mm
Stroke 127.0 mm (5.0 in)
Capacity 4.1 Liter
Compression Ratio 15.3:1
Starting Aid Thermostat
Throttle Control Hand and Foot
Cooling Water
Air Cleaner Oil Bath
Air pre-cleaner Over-bonnet, Centrifugal
Fuel Filter Dual, High Capacity
Exhaust Vertical, Muffler under Bonnet

ELECTRICS:

Voltage 12 V, Negative Earth
Batteries 2 Nos., 50 AH each
Alternator/Starter 40 Amp/2.2 KW
Light Head Lights, Side Lights, Brake Light, Direction Indicators, Rear Work Lamp
Safety Start Transmission & PTO
Other Horn

CLUTCH:

Type Dual
Diameter 305 x 254 mm (12 x 10 in)

POWER TAKE - OFF:

Type Live PTO
Speed 540 rev/min @ 1789 engine rev/min Single Speed
Shaft Diameter 35 mm (1.375 in)
No. of Splines 6

INSTRUMENTATION:

Gauges Tachometer/Hour Meter, Fuel, Water,Temperature, Speed Indicator,
Direction Indicators, Electric Charge, Head Light

Warning Lights Main Beam, Low Engine Oil Pressure

TRANSMISSION:

Type Sliding Spur
No. of Gears 8 Forward, 2 Reverse

Road Speed @ rated engine speed with 18.4/15 - 30 rear tyres:

Gear

Speed mile/h (km/h)

Forward
Forward
Forward
Forward
Forward
Forward
Forward
Forward
Reverse
Reverse

1 2.6
2 3.8
3 5.3
4 7.1
5 10.5
6 15.4
7 21.0
8 28.3
1 3.6
2 14.3

HYDRAULICS:

Functions: Draft Control
Piston Control
Response Control
Constant Pumping
Pump Type: Piston
Max. Output 16.7 litre/min
Max. Lift Capacity 207 bar (3000 lbf/in2)

BRAKES:

Type Oil Immersed Disc Brakes, 4 Plates
Braking Area 1774 cm2 (275 in2)
Operation Hydraulic
Parking Brake Hand Lever Operated

WHEEL and TYRES:

Front 7.50 - 16 (6PR) Pressed
Rear 16.9/14 - 30 (6PR) Pressed

TRACK ADJUSTMENT:

Front 1346 - 1854 mm
Rear-Pressed 1423 - 2134 mm 56 - 84 in)

WEIGHTS AND DIMENSIONS:

Weight Total 2200 Kg
Overall Length 3542 mm
Width ? Min. 1870 mm
Height-Over Exhaust 2480 mm
Over Steering Wheel 1815 mm
Wheel Base 2100 mm
Turning Circle 6900 mm (Less Brake)
Ground Clearance 405 mm (Under Gear Box)
