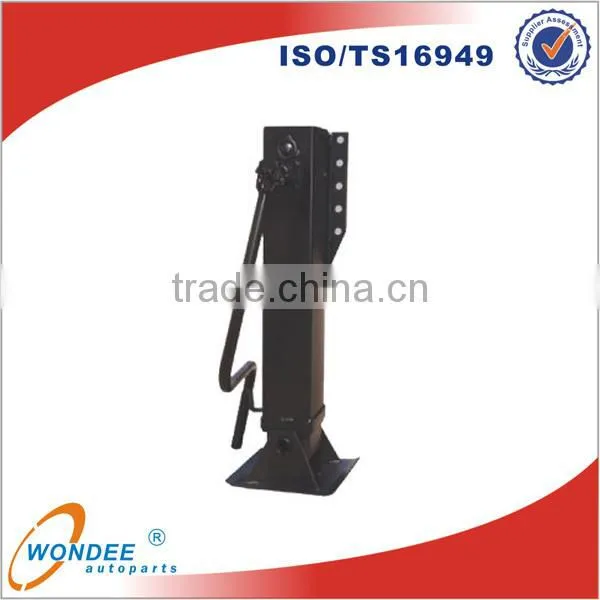

WONDEE Factory Heavy Duty Truck 25T Landing Leg Main Information:
Dimention of LGN25-A0102T:
Capacity: 25T
Static Load: 60T
Speed: Higher 3.8, Lower 0.7
Lift/Height: 430/780; 430/820
Wondee Autoparts Landing Gear Factory supplies landing foot for semi-trailers & RV semi-trailers.
Gear Box: Inside & Outside
Operation: Single side & Double side
Lifting Capacity: 25 ton ~ 35 ton.
Static Load: 50 ton ~ 90ton
Gear Food Type: T, A, S, G, R
Out put: 80,000 pairs yearly
Heavy Duty Landing Leg Dimension :
Number |
Capacity |
Static Load |
Speed |
Lift |
Height |
|
kg |
kg |
Higher |
Lower |
mm |
mm |
|
LGN25-A0101T |
25000 |
60000 |
3.8 |
0.7 |
430 |
780 |
LGN25-A0102T |
25000 |
60000 |
3.8 |
0.7 |
430 |
820 |
Truck 25T Landing Leg Specification: ( Just for Reference )
> Material : Q235
> Lead screw is rolled forming with extra-duty feature steel.
> Reverse mount ability.
> Gears are made of high grade forging steel.
> Double adjustable transfer real power in low gear
> Slight easy operation
> Lead screw nut applies floating construction, easier for lift and longer persistence for use.
> Special dimension could be accepted after confirmation.
> Rust prevention and antisepticize
> The thickness of 4.5 shell quality is higher than 3.5mm. Bottom of feet also 4.5mm and the wallboard is 7mm.
> Gear we use forging gear. After treatment with fire, etc After repeated use, not easy to be broken.
Landing Gear Function:
> The device is use for semi-trailer and special trailers.
> It lift and support trailer when it is separated from tractor.
> It's also in use for all sorts of trucks that they are secured to work as jack.
> The quality is up to the standard of American ABS specification.
Landing Leg Payment & Terms:
- MOQ: 10 Pairs
- FOB Price: 120 ~ ~ 160 USD Per Pair
- Payment Terms: L/C, T/T, Western Union
- Supply Capacity: 2000 Pairs per Month
- Delivery Time: About 20 Working Days
- Delivery Port: Qingdao, Xiamen
- Package: By Pallet; By Wooden Case; 200 Pairs in 1X20FCL.
Heavy Duty Landing Leg Packing Show:
Besides Factory Landing Leg , WONDEE AUTOPARTS also Supply LEAF SPRING, SEMI TRAILER, WHEEL RIM,AXLE,SUSPENSION ... .... ...
