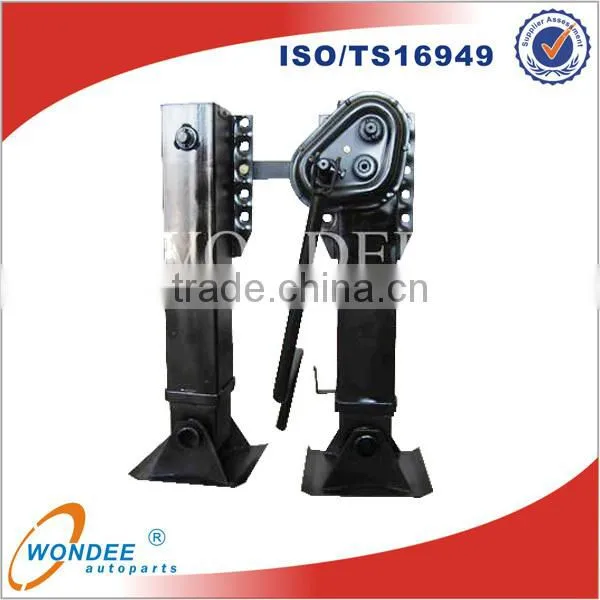

China Supplier Holland Type Landing Gear Trailer Landing Leg Information: |
Dimention of LGH28-A0101T: |
Capacity: 28T |
Static Load: 80T |
Speed: Higher 3.5, Lower 0.42 |
Lift/Height: 430/794; 480/844 |
Wondee Autoparts Landing Gear Factory supplies landing foot for semi-trailers & RV semi-trailers. |
Gear Box: Inside & Outside |
Operation: Single side & Double side |
Lifting Capacity: 25 ton ~ 35 ton. |
Static Load: 50 ton ~ 90ton |
Gear Food Type: T, A, S, G, R |
Out put: 80,000 pairs yearly |
Landing Gear Trailer Landing Leg Dimension: |
Number | Capacity | Static Load | Speed | Lift | Height | |
kg | kg | Higher | Lower | mm | mm | |
LGH28-A0101T | 28000 | 80000 | 3.5 | 0.42 | 430 | 794 |
LGH28-A0102T | 28000 | 80000 | 3.5 | 0.42 | 480 | 844 |
Landing gear Specifications ( Just for Reference ): |
Reliable, high-quality seal keeps water out and extends life |
Unique tapered backplate for enhanced durability |
Gearbox with low-temperature premium lube provides easy cranking and reduces component wear; protection from -65ºF to 225ºF |
Low Speed Gear - 38.6 turns per inch |
High Speed Gear - 4.5 turns per inch |
Massive, 5-inch upper housing with 80,000 psi minimum yield and retractable tube; maintains strength while saving weight. Lower leg is 12% larger than standard-duty landing gear |
Three-gear train gearbox with exclusive Man-Saver gear ratios handles normal loads with 40% less effort |
Exceeds all AAR M-931 and all TTMA RP-4 performance specifications. |
Includes an industry leading 5-year warranty |
Landing Gear Function & Attention ( Just for Reference ) : |
1.The device is use for semi-trailer and special trailers. |
2.It lift and support trailer when it is separated from tractor. |
3.It's also in use for all sorts of trucks that they are secured to work as jack. |
4.The quality is up to the standard of American ABS specification. |
5.Landing Gear has slow and fast two speed. Please use slow speed when loading. It is easy to operate. Do not use fast speed. It is possible to injure landing gear. |
Landing Gear Drawings ( Just for Reference ) : |
The Detail Photos about Landing Gear:
Besides Landing Gear Trailer Landing Leg, WONDEE AUTOPARTS also Supply LEAF SPRING, WHEEL RIM,SEMI TRAILER,SUSPENSION,AXLE ... .... ...
