T Type Landing Gear Manufacturers

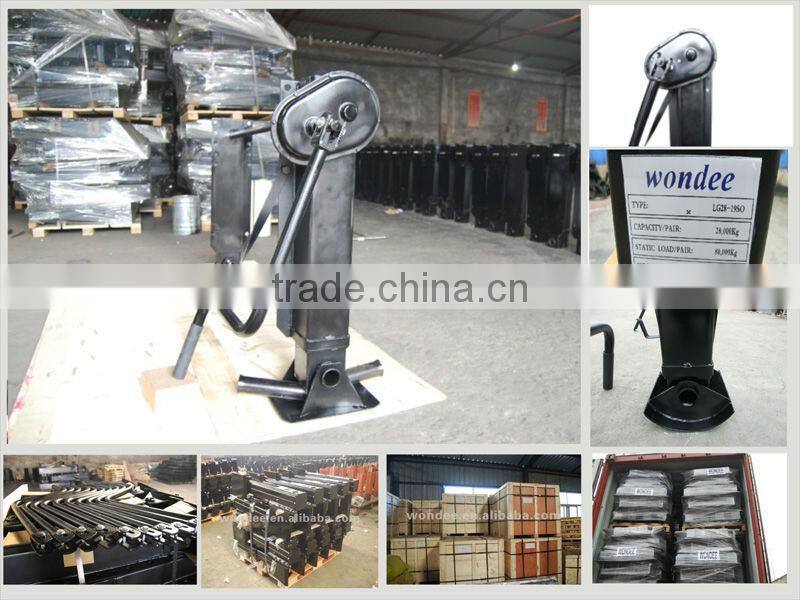

The Detail Photos about Landing Gear:

T Type Landing Gear Manufacturers Information:

Dimention of LGJ28-B0101T:

Capacity: 28T

Static Load: 80T

Speed: Higher 9, Lower 0.9

Lift/Height: 430/830; 480/880

Wondee Autoparts Landing Gear Factory supplies landing foot for semi-trailers & RV semi-trailers.

Gear Box: Inside & Outside

Operation: Single side & Double side

Lifting Capacity: 25 ton ~ 35 ton.

Static Load: 50 ton ~ 90ton

Gear Food Type: T, A, S, G, R

Out put: 80,000 pairs yearly

T Type Landing Gear Manufacturers Dimension :

Landing Gear Features ( Just for Reference):

• Ideal for heavy-duty trailers
• 2-Speed jack makes cranking faster and easier

           * Low gear: full lifting power offers smooth and easy ratio of 1" for every 27-1/3 turns

           * High gear: ultimate speed with 1" for every 4-1/2 turns

• Traditional gearbox design requires you to reposition crank to switch gears

          * Sidewind crank included

• Easy-to-access grease fittings
• Heavy-duty steel leg band provides extra strength and support
• High-efficiency, double-lead screw
• Self-leveling sand shoe offers absolute stability
• Set includes 2-speed jack, single-speed jack and crank

         * Cross shaft not included - a user-made connecting rod is required to match the width of your trailer

• Direct-weld design
• Black paint finish

Landing Gear Function & Attention ( Just for Reference):

1.The device is use for semi-trailer and special trailers.

2.It lift and support trailer when it is separated from tractor.

3.It's also in use for all sorts of trucks that they are secured to work as jack.

4.The quality is up to the standard of American ABS specification.

5.Landing Gear has slow and fast two speed. Please use slow speed when loading. It is easy to operate. Do not use fast speed. It is possible to injure landing gear.

T Type Landing Gear Manufacturers Payment & Terms:

• MOQ: 10 Pairs
• FOB Price: $120 ~ ~ $160 Per Pair
• Payment Terms: L/C, T/T, Western Union
• Supply Capacity: 2000 Pairs per Month
• Delivery Time: About 20 Working Days
• Delivery Port: Qingdao, Xiamen
• Package: By Pallet; By Wooden Case; 200 Pairs in 1X20FCL.

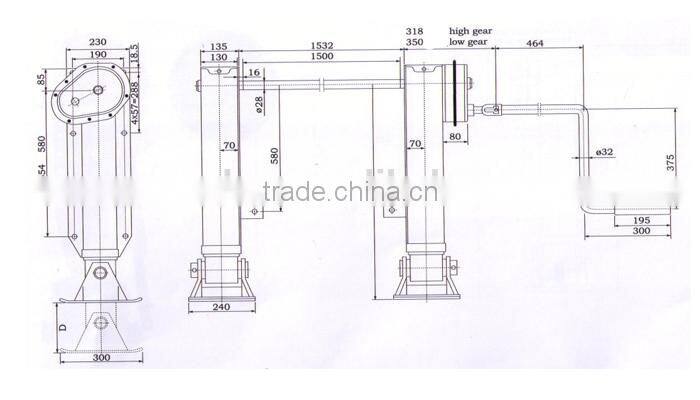

Landing Gear Drawings ( Just for Reference ):

   Besides T Type Landing Gear Manufacturers, WONDEE AUTOPARTS also Supply LEAF SPRING, WHEEL RIM,LANDING GEAR,SUSPENSION,AXLE ... .... ...
