Home > Products > Trailer Landing Gear > China ISO High Quality Steel Fuwa Landing Gear Sale
China ISO High Quality Steel Fuwa Landing Gear Sale
- 2000 Pair / Pairs per Month
- Qingdao Xiamen
- T/T Credit Card
Product Details
OEM No.: | Holland type | Max Payload: | 80T Fuwa Landing Gear Sale | Size: | Speed: Higher 3.5, Lower 0.42 (mm) |
Place of Origin: | Gansu, China | Brand Name: | WONDEE | Model Number: | LGH28-B0102T |
Packaging Details
China ISO High Quality Steel Fuwa Landing Gear Sale Package: By Pallet; By Wooden Case; 200 Pair Steel Fuwa Landing Gear Sale in 1X20FCL.
Product Description
Steel Fuwa Landing Gear Sale Information :
> Type: Fuwa type
> Dimention of LGH28-B0102T:
> Capacity: 28T
> Static Load: 80T
> Plate Thickness:5 mm
> Speed: Higher 3.5mm, Lower 0.42mm
> Lift/Height: 430/794mm; 480/844mm
> Length: Gear Bar Length can be Adjusted
Wondee Autoparts Landing Gear Factory supplies landing foot for semi-trailers & RV semi-trailers.
Gear Box: Inside & Outside
Operation: Single side & Double side
Lifting Capacity: 25 ton ~ 35 ton.
Static Load: 50 ton ~ 90ton
Gear Food Type: T, A, S, G, R
Out put: 80,000 pairs yearly
High Quality Steel Fuwa Landing Gear Sale Dimension:
Number | Capacity | Static Load | Speed | Lift | Height | |
kg | kg | Higher | Lower | mm | mm | |
LGH28-B0101T | 28000 | 80000 | 3.5 | 0.42 | 430 | 794 |
LGH28-B0102T | 28000 | 80000 | 3.5 | 0.42 | 480 | 844 |
LGH32-B0101T | 32000 | 90000 | 3.5 | 0.42 | 430 | 794 |
LGH32-B0102T | 32000 | 90000 | 3.5 | 0.42 | 480 | 844 |

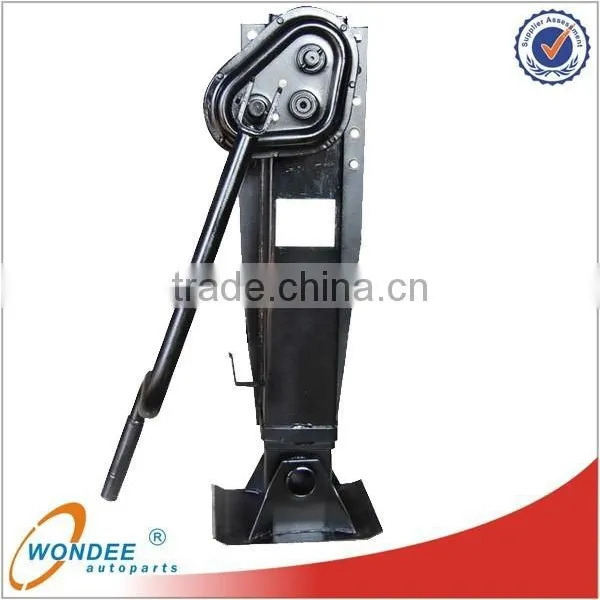

The Detail photos about Fuwa Landing Gear Sale :
Fuwa Landing Gear Sale Features ( Just for Reference):
- Ideal for heavy-duty trailers
- 2-Speed jack makes cranking faster and easier
* Low gear: full lifting power offers smooth and easy ratio of 1" for every 27-1/3 turns
* High gear: ultimate speed with 1" for every 4-1/2 turns
- Traditional gearbox design requires you to reposition crank to switch gears
* Sidewind crank included
- Easy-to-access grease fittings
- Heavy-duty steel leg band provides extra strength and support
- High-efficiency, double-lead screw
- Self-leveling sand shoe offers absolute stability
- Set includes 2-speed jack, single-speed jack and crank
* Cross shaft not included - a user-made connecting rod is required to match the width of your trailer
- Direct-weld design
- Black paint finish
Fuwa Landing Gear Sale Function & Attention ( Just for Reference):
1.The device is use for semi-trailer and special trailers.
2.It lift and support trailer when it is separated from tractor.
3.It's also in use for all sorts of trucks that they are secured to work as jack.
4.The quality is up to the standard of American ABS specification.
5.Landing Gear has slow and fast two speed. Please use slow speed when loading. It is easy to operate. Do not use fast speed. It is possible to injure landing gear.

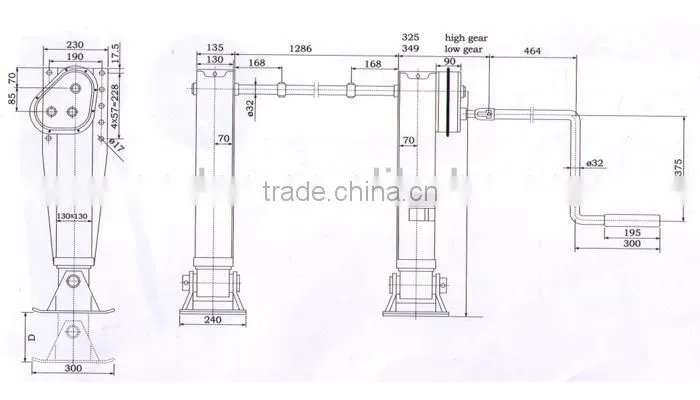

Fuwa Landing Gear Sale Drawings ( Just for Reference):
Besides Fuwa Landing Gear Sale, WONDEE AUTOPARTS also Supply SEMI TRAILER, WHEEL RIM,LANDING GEAR,SUSPENSION ... .... ...
