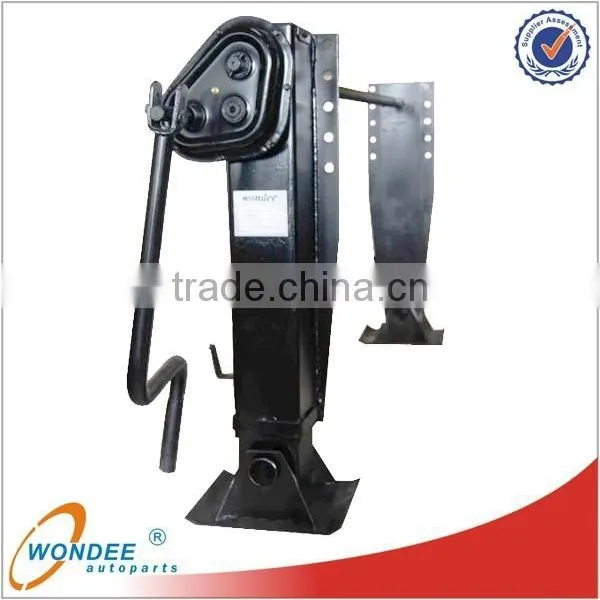

China ISO High Quality Steel T Type Landing Gear
- 2000 Pair / Pairs per Month
- Qingdao Xiamen
- T/T Credit Card
- China ISO High Quality Steel Outside Landing Gear
- China Heavy Duty Best Quality Steel ISO Landing Gear
- 28T Truck Landing Gear Trailer Jack Legs
- China Heavy Duty Best Quality Steel TS16949 Landing Gear
- China Trailer 28T Holland Semi Trailer Landing Gear
- China Heavy-duty Steel High Quality Landing Gear
Product Details
OEM No.: | Holland type | Max Payload: | 80T Steel T Type Landing Gear | Size: | Speed: Higher 3.5, Lower 0.42 (mm) |
Place of Origin: | Fujian, China | Brand Name: | WONDEE Steel T Type Landing Gear | Model Number: | LGH28-B0102T |
Packaging Details
China ISO High Quality Steel T Type Landing Gear Package: By Pallet; By Wooden Case; 200 Pair High Quality Steel T Type Landing Gear in 1X20FCL.
Product Description
T Type Landing Gear Information :
> Type: Fuwa type
> Dimention of LGH28-B0102T:
> Capacity: 28T
> Static Load: 80T
> Plate Thickness:5 mm
> Speed: Higher 3.5mm, Lower 0.42mm
> Lift/Height: 430/794mm; 480/844mm
> Length: Gear Bar Length can be Adjusted
Wondee Autoparts Landing Gear Factory supplies landing foot for semi-trailers & RV semi-trailers.
Gear Box: Inside & Outside
Operation: Single side & Double side
Lifting Capacity: 25 ton ~ 35 ton.
Static Load: 50 ton ~ 90ton
Gear Food Type: T, A, S, G, R
Out put: 80,000 pairs yearly
Steel T Type Landing Gear Dimension:
Number | Capacity | Static Load | Speed | Lift | Height | |
kg | kg | Higher | Lower | mm | mm | |
LGH28-B0101T | 28000 | 80000 | 3.5 | 0.42 | 430 | 794 |
LGH28-B0102T | 28000 | 80000 | 3.5 | 0.42 | 480 | 844 |
LGH32-B0101T | 32000 | 90000 | 3.5 | 0.42 | 430 | 794 |
LGH32-B0102T | 32000 | 90000 | 3.5 | 0.42 | 480 | 844 |
High Quality Steel T Type Landing Gear Features ( Just for Reference):
- Ideal for heavy-duty trailers
- 2-Speed jack makes cranking faster and easier
* Low gear: full lifting power offers smooth and easy ratio of 1" for every 27-1/3 turns
* High gear: ultimate speed with 1" for every 4-1/2 turns
- Traditional gearbox design requires you to reposition crank to switch gears
* Sidewind crank included
- Easy-to-access grease fittings
- Heavy-duty steel leg band provides extra strength and support
- High-efficiency, double-lead screw
- Self-leveling sand shoe offers absolute stability
- Set includes 2-speed jack, single-speed jack and crank
* Cross shaft not included - a user-made connecting rod is required to match the width of your trailer
- Direct-weld design
- Black paint finish
T Type Landing Gear Function & Attention ( Just for Reference):
1.The device is use for semi-trailer and special trailers.
2.It lift and support trailer when it is separated from tractor.
3.It's also in use for all sorts of trucks that they are secured to work as jack.
4.The quality is up to the standard of American ABS specification.
5.Landing Gear has slow and fast two speed. Please use slow speed when loading. It is easy to operate. Do not use fast speed. It is possible to injure landing gear.
T Type Landing Gear Drawings ( Just for Reference):
Besides T Type Landing Gear, WONDEE AUTOPARTS also Supply SEMI TRAILER, WHEEL RIM,LANDING GEAR,SUSPENSION ... .... ...
Company Profile
Xiamen Wondee Autoparts Co., Ltd (CHINA), has been supplying a wide variety of semi-trailers, trucks and trailer components including leaf spring, wheel rim, air suspension, spring steel flat bar, axle, suspension, bogie, landing gear, turntable, fifth wheel, king pin, air chamber, slack adjuster, twist lock and so on.
Our TOP 5 most attractive export products are:
1. SEMI-TRAILER
Popular trailers include skeletal container semi-trailers, flatbed semi-trailers, fuel tank semi-trailers, low bed semi-trailers, van semi-trailers, logging semi-trailers. We supply complete and partial CKD package for semi-trailers also.
2. LEAF SPRING
We are the largest leaf spring manufacturer group in Asia with an annual output 200,000 tons, have passed ISO/TS16949 certificate in 2006. We engage in the production of all kinds of automobile spring, from small trailers, pickup vehicles to heavy duty trucks, from conventional to parabolic, from OEM to after-market. Thickness from 6mm to 50mm, width from 44.5mm to 125mm. Popular material grades include SUP7, SUP9 and SUP11A. Popular section sizes include 44.5*6, 50*8, 57*8, 60*12, 70*9, 80*13, 90*16, 100*12, 100*38, 100*50, 120*20.
3. WHEEL RIM
Tube wheel from 5.5-16 to 8.5-24; tubeless wheel rim from 6.0*17.5 to 11.75 * 22.5 for all kinds of vehicles. Popular size is 7.5-20, 8.5-24, 9.00*22.5, 11.75*22.5.
4. SPRING STEEL FLAT BAR
Popular material grades include SUP7, SUP9 and SUP11A. Popular section sizes include 44.5*6, 50*8, 57*8, 60*12, 70*9, 80*13, 90*16, 100*12, 100*38, 100*50, 120*20.
5. AIR SUSPENSION
Popular type is 3-axle liftable air suspension for semi-trailer.
With the experienced R&D staff, advanced production equipments, strict quality control system, our factories have passed ISO/TS16949 international standards and have been approved by Xiamen Municipal Trade Development Bureau to be in the range of "Private Scientific & Technological Enterprise". Meanwhile, reasonable price, qualified goods, PPAC order service, all these advantages make WONDEE famous and prestigious all over the world.
WONDEE have acquired high reputations from our customers both in local automobile industry and in oversea markets. During the past years, WONDEE products are well sold to Malaysia Port Kelang, Thailand Bangkok, Saudi Dammam, Nigeria Lagos, Tanzania Darlassalam, Brazil Santos, USA Texas, Germany Hamburg and so on. It has been found that, WONDEE products are especially suitable for bad roads and over-load conditions transportation, for example, in the ore mining area of Africa, in the mountain areas of Latin America, in the oil-output region of Mideast, in the coal mining areas in China Fujian.
To maximize customer satisfaction, WONDEE put not only great attention to the superior product quality and good cost performance, but also has been building up a complete and satisfied service principle, called as "PPAC": Prompt---Pre-act---Accurate---Considerate.
Presently, the people of WONDEE offer our warm welcome to the clients at home and abroad to visit our factory in coming future for the greater cooperation based on long-term "win-win" development.
Sincerely
Yours
Ms Amy Ai
