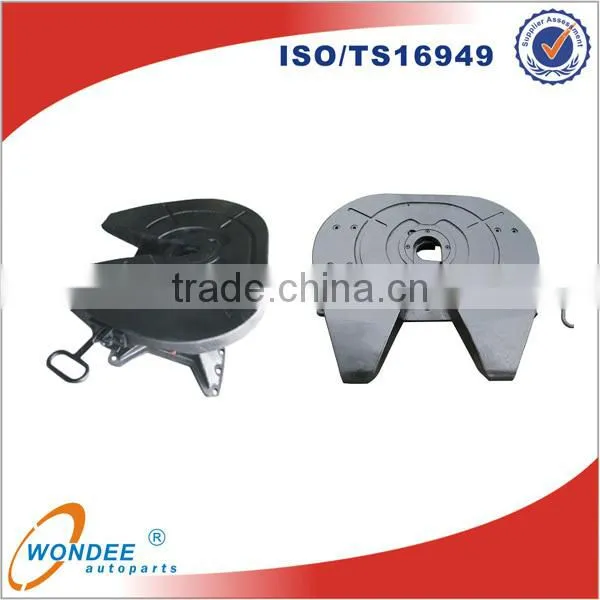

Fifth Wheel for Heavy Truck

Specifications

1.Fifth Wheel for Heavy Truck
2.Size: 3.5", Weight: 300kg
3.Capacity: 90T, King Pin Size: 90mm
4.ISO/TS16949,COC,CIQ,SONCAP

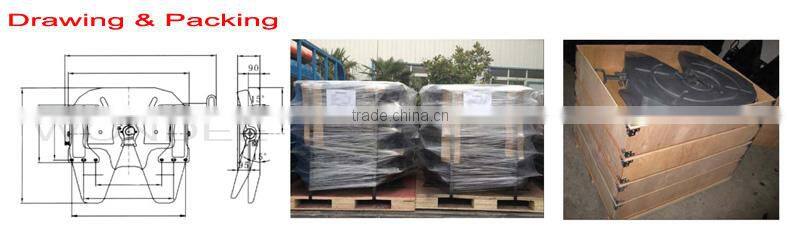

Fifth Wheel for Heavy Truck Detail Photos:





Fifth Wheel for Heavy Truck Detailed Product Description:



1.Rated vertical load: 25000 kg

2.D-value:176 kn

3. Lengthways angle: 15 a°

4. Weight: 172kg

5. Installation height: 167.5mm

6. King Pin Size: 50mm

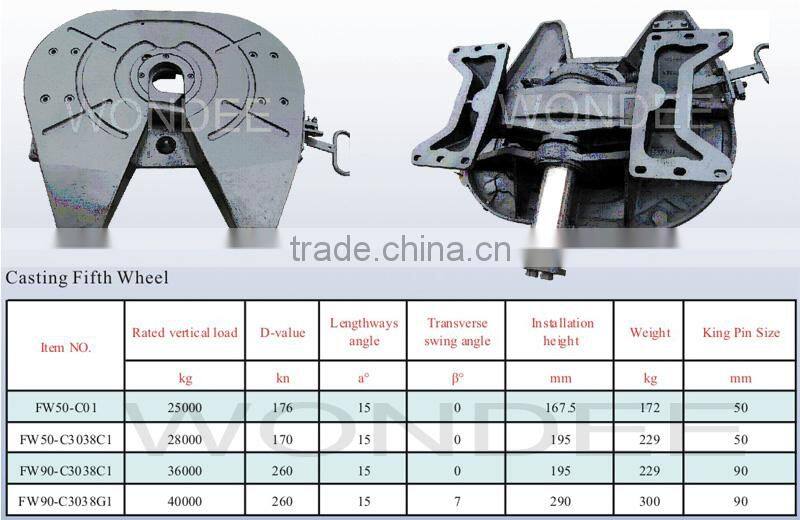

Casting 5th Wheel Dimension :



Item NO.	Rated vertical load	D-value	Lengthways angle	Transverse swing angle	Installation height	Weight	King Pin Size
	kg	kn	a°	β°	mm	kg	mm
FW50-C01	25000	176	15	0	167.5	172	50
FW50-C3038C1	28000	170	15	0	195	229	50
FW90-C3038C1	36000	260	15	0	195	229	90
FW90-C3038G1	40000	260	15	7	290	300	90





We also supply Kingpin:





Besides Fifth Wheel for Heavy Truck, WONDEE AUTOPARTS also Supply LEAF SPRING,SEMI TRAILER, WHEEL RIM,LANDING GEAR,SUSPENSION ... .... ...
