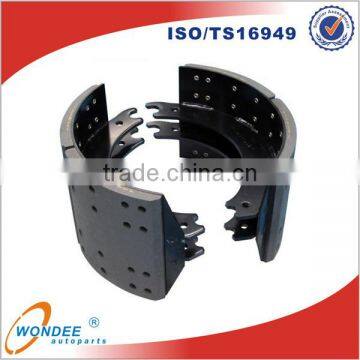

Help CenterHot Sale Fuwa Type Truck 4515 Brake Shoe
Related Products
-
Truck Axle Drum Volvo Type 4515 Brake ShoeUS$ 7 - 12MOQ: 100 Pieces -
China Manufacturer 4515 Brake Shoe in Truck BrakeUS$ 7 - 12MOQ: 100 Pieces
-
Truck Trailer Axle 4515 Brake Shoe in Brake SystemUS$ 7 - 12MOQ: 100 Pieces
-
Brake System Trailer 4551Q Brake ShoeUS$ 7 - 12MOQ: 100 Pieces
-
Drum Axle 4515 Brake Shoe in Auto Brake ShoesUS$ 7 - 12MOQ: 100 Pieces
Brake shoes are typically made of two pieces of steel welded together. The friction material is either riveted to the lining table or attached with adhesive. The crescent-shaped piece is called the Web and contains holes and slots in different shapes for return springs,hold-down hardware, parking brake linkage and self-adjusting components. All the application force of the wheel cylinder is applied through the web to the lining table and brake lining. The edge of the lining table generally has three “V"-shaped notches or tabs on each side called nibs. The nibs rest against the support pads of the backing plate to which the shoes are installed. Each brake assembly has two shoes, a primary and secondary. The primary brake shoe is located toward the front of the vehicle and has the lining positioned differently from the secondary shoe.Quite often, the two shoes are interchangeable, so close inspection for any variation is important.
Brake Shoe Dimension:
| Brake Shoe Item NO.: | 4515 |
| R1: | 13.53mm |
| R2: | 9.5mm |
| Center: | 323.85mm |
| Outline: | 203mm |
| Width: | 177.8mm |
| Weight: | 5525g |
| Table thickness: | 5mm |
| Web thickness: | 7.5mm |
More Kinds of Brake Shoe We Can Supply:
