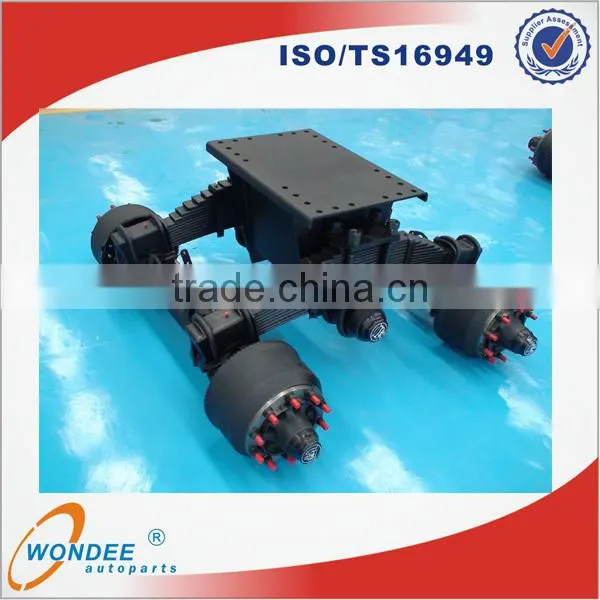

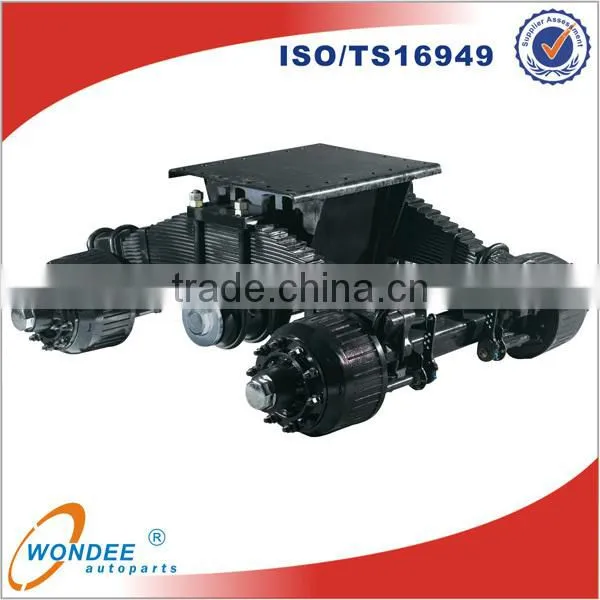

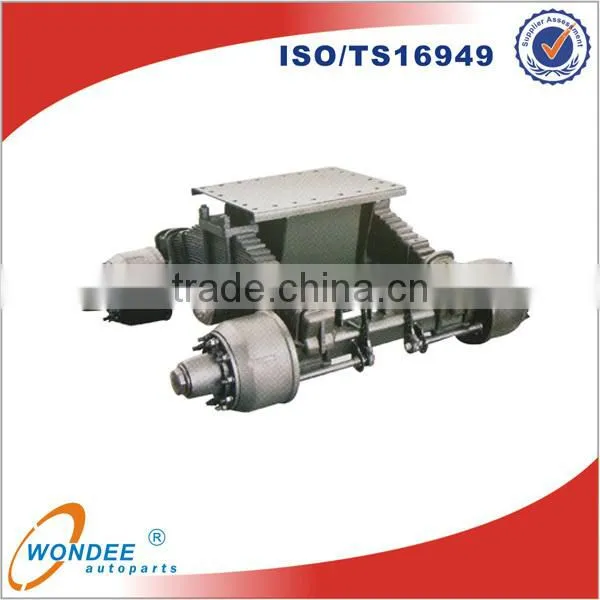

Germanic Bogie Suspension Information:
Wondee autoparts has been supplying trailer parts more than ten years.
You can be confident, because WONDEE believe in high quality and considerate service all the time.
1.Has passed the ISO and TS16949 standard authentication of international quality control system
2.Strict quality control system to assure our excellent product quality.
ducts are popular in the worldwide market, including North American, South American, European, African and Southeast Asian markets.
Wondee supply Mechanical Suspension with 2-axle,3-axle,4-axle suspension
Germanic Bogie Suspension Dimension:
Bogie(spoke) | High plate | ||||||
Item No. | Rated Load(kg) | Weight (kg) | Bearing type | Brake Lining(mm) | Dual Spacing(mm) | Leaf Spring(mm) | Axle Space(mm) |
WBHS24-232201 | 24000 | 2150 | 33213/33118 | Φ 420*200 | 1850 | 980 | 1500 |
WBHS28-242301 | 28000 | 2550 | 33215/32219 | Φ 420*200 | 1900 | 900 | 1550 |
WBHS32-242301 | 32000 | 2600 | 32314/32222 | Φ 420*200 | 1900 | 900 | 1550 |
WBHS36-242301 | 36000 | 2700 | 33214/32222 | Φ 420*220 | 1900 | 900 | 1550 |
Bogie(drum) | High plate | ||||||
Item No. | Rated Load(kg) | Weight (kg) | Bearing type | Brake Lining(mm) | Track (mm) | Leaf Spring(mm) | Axle Space(mm) |
WBHD24-221101 | 24000 | 1850 | 33213/33118 | Φ 420*200 | 1840 | 980 | 1400 |
WBHD28-222301 | 28000 | 2320 | 33215/32219 | Φ 420*200 | 1840 | 900 | 1550 |
WBHD32-222301 | 32000 | 2320 | 32314/32222 | Φ 420*200 | 1840 | 900 | 1550 |
WBHD36-232301 | 36000 | 2540 | 33214/32222 | Φ 420*220 | 1850 | 900 | 1550 |
Following axles with 8 holes and 10 holes are waiting for you to choose:
1) 12 ton capacity axle
2) 13 ton capacity axle
3) 14 ton capacity axle
4) 16 ton capacity axle
With the earnest work of our 50 technicians, we have developed diversity of different sizes and types axles for various applications.
The Detail Package about 36T Bogie Suspension:
Besides 36T Bogie Suspension, WONDEE AUTOPARTS also Supply LEAF SPRING, WHEEL RIM,LANDING GEAR,SUSPENSION ... .... ...
