China Heavy Duty Trailer Axle 18t German Type
- 2000 Piece / Pieces per Month
- Tianjin/Qingdao/Xiamen
- T/T Credit Card
Product Details
Parts: | Trailer Axles | OEM No.: | XDE18-2202 | Max Payload: | 18 Ton |
Size: | Brake Size:420X220 | Place of Origin: | Fujian, China | Brand Name: | WONDEE Axle 18t German Type |
Model Number: | XDE18-2202 |
Packaging Details
Axle 18t German Type Package: By Pallet; 58 Pieces Axle 18t German Type in 1*20FCL.
Product Description
Axle 18t German Type Information:
1. Max Capacity: 18000kg
2. Distance of Chamber: 376mm
3. Track: 1850mm
4. Axle Beam: 150mm,Square Beam
5. Brake Size: 420x200mm
6. Length: 2242mm
7. Bearing: 32314/32222mm
8. Weight:491kg
Axle 18t German Type Dimensions :
Part No. | Max. Capacity | Distance of Chamber | Track | Axle Beam | Brake size | Length | Bearing | Weight |
XDE12-1802 | 12000 | 420 | 1840 | 150 | 420×180 | 2156 | 33213/33118 | 372 |
XDE12-2002 | 12000 | 354 | 1840 | 150 | 420×200 | 2156 | 33213/33118 | 396 |
XDE14-2001 | 14000 | 354 | 1840 | 150 | 420×200 | 2188 | 33215/33119 | 416 |
XDE16-2001 | 16000 | 356 | 1850 | 150 | 420×200 | 2242 | 32314/32222 | 468 |
XDE16-2201 | 16000 | 376 | 1850 | 150 | 420×220 | 2242 | 32314/32222 | 474 |
XDE18-2202 | 18000 | 376 | 1850 | 150 | 420×220 | 2242 | 32314/32222 | 491 |

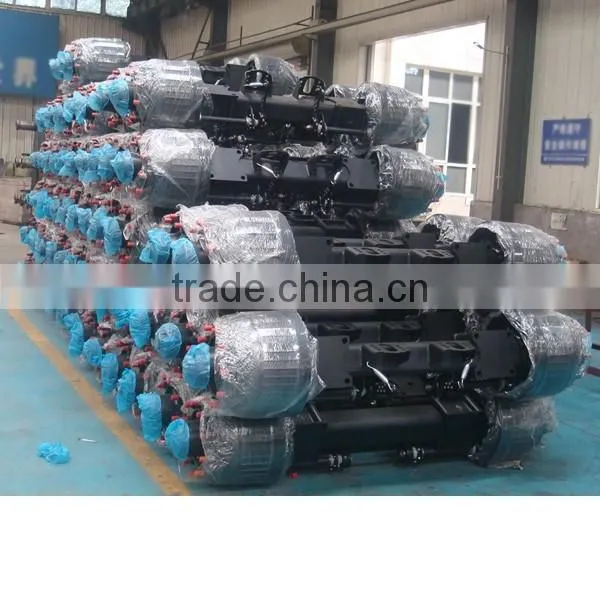

Axle 18t German Type Detail Photos:
Axle 18t German Type Features :
1.Axle beam use 20Mn2 seamless pipe, through one-piece press forging and special heat-treatment, which has great over loading capacity and high intensity.
2.Axle spindle,which was processed by digital controlled lathe, is made of alloy material. The bearing position is processed by the method of hardending operation,therefore the bearing can be fixed by hand instead of heating, also convenient for maintain and fixing.
3.Axle spindle is connected by the by submerged arc welding, which make the whole beam more reliable and solid.
4.Axle bearing position is used the grinding machine to keep the bearing at the same level, after processing, it can assure that the concentricity within 0.02mm strictly.
5.Axle grease lubricant is supplied by EXXON Mobile which could providehigh lubricating performance and protect bearing well.
6. Axle brake lining is high performance, non-asbestos, non pollution and long service life.To make check and replace easily, also come with the position of the exhaustion to remind customer to check and maintain.
7.Axle bearing is adopted famous brand in China, with the advantages of over loading
capability, High rotating speed, good intensity, abrade resistant and heat resistant.
More Axles As Bollow for your Reference:
Besides Axle 18t German Type,WONDEE AUTOPARTS also Supply SEMI TRAILER,LEAF SPRING, WHEEL RIM,LANDING GEAR,SUSPENSION ... .... ...
Company Profile
Xiamen Wondee Autoparts Co., Ltd (CHINA), has been supplying a wide variety of semi-trailers, trucks and trailer components including leaf spring, wheel rim, air suspension, spring steel flat bar, axle, suspension, bogie, landing gear, turntable, fifth wheel, king pin, air chamber, slack adjuster, twist lock and so on.
Our TOP 5 most attractive export products are:
1. SEMI-TRAILER
Popular trailers include skeletal container semi-trailers, flatbed semi-trailers, fuel tank semi-trailers, low bed semi-trailers, van semi-trailers, logging semi-trailers. We supply complete and partial CKD package for semi-trailers also.
2. LEAF SPRING
We are the largest leaf spring manufacturer group in Asia with an annual output 200,000 tons, have passed ISO/TS16949 certificate in 2006. We engage in the production of all kinds of automobile spring, from small trailers, pickup vehicles to heavy duty trucks, from conventional to parabolic, from OEM to after-market. Thickness from 6mm to 50mm, width from 44.5mm to 125mm. Popular material grades include SUP7, SUP9 and SUP11A. Popular section sizes include 44.5*6, 50*8, 57*8, 60*12, 70*9, 80*13, 90*16, 100*12, 100*38, 100*50, 120*20.
3. WHEEL RIM
Tube wheel from 5.5-16 to 8.5-24; tubeless wheel rim from 6.0*17.5 to 11.75 * 22.5 for all kinds of vehicles. Popular size is 7.5-20, 8.5-24, 9.00*22.5, 11.75*22.5.
4. SPRING STEEL FLAT BAR
Popular material grades include SUP7, SUP9 and SUP11A. Popular section sizes include 44.5*6, 50*8, 57*8, 60*12, 70*9, 80*13, 90*16, 100*12, 100*38, 100*50, 120*20.
5. AIR SUSPENSION
Popular type is 3-axle liftable air suspension for semi-trailer.
With the experienced R&D staff, advanced production equipments, strict quality control system, our factories have passed ISO/TS16949 international standards and have been approved by Xiamen Municipal Trade Development Bureau to be in the range of "Private Scientific & Technological Enterprise". Meanwhile, reasonable price, qualified goods, PPAC order service, all these advantages make WONDEE famous and prestigious all over the world.
WONDEE have acquired high reputations from our customers both in local automobile industry and in oversea markets. During the past years, WONDEE products are well sold to Malaysia Port Kelang, Thailand Bangkok, Saudi Dammam, Nigeria Lagos, Tanzania Darlassalam, Brazil Santos, USA Texas, Germany Hamburg and so on. It has been found that, WONDEE products are especially suitable for bad roads and over-load conditions transportation, for example, in the ore mining area of Africa, in the mountain areas of Latin America, in the oil-output region of Mideast, in the coal mining areas in China Fujian.
To maximize customer satisfaction, WONDEE put not only great attention to the superior product quality and good cost performance, but also has been building up a complete and satisfied service principle, called as "PPAC": Prompt---Pre-act---Accurate---Considerate.
Presently, the people of WONDEE offer our warm welcome to the clients at home and abroad to visit our factory in coming future for the greater cooperation based on long-term "win-win" development.
