Semi Trailer Axles for Sale Dimensions :
Part No. |
Max. Capacity |
Distance of Chamber |
Track |
Axle Beam |
Brake size |
Length |
Bearing |
Weight |
WXDE14-S2001 |
14000kg |
354mm |
1840mm |
150mm |
420×200mm |
2188mm |
33215/33119 |
416kg |
1. The Semi Trailer Axles for Sale track is 1840mm which dosen't include the size of the steel ring, and this size of the steel ring, and this size can be met according to the customer' request.
The thickness of the steel ring is 10-16mm, and we also satisfy the customer' special request,if it is over 16mm.
2.The size between the left and right of the steel spring seat is around 900+_ 100mm.
High Quality Germany Semi Trailer Axles for Sale Features :
1.Axle beam use 20Mn2 seamless pipe, through one-piece press forging and special heat-treatment, which has great over loading capacity and high intensity.
2.Axle spindle,which was processed by digital controlled lathe, is made of alloy material. The bearing position is processed by the method of hardending operation,therefore the bearing can be fixed by hand instead of heating, also convenient for maintain and fixing.
3.Axle spindle is connected by the by submerged arc welding, which make the whole beam more reliable and solid.
4.Axle bearing position is used the grinding machine to keep the bearing at the same level, after processing, it can assure that the concentricity within 0.02mm strictly.
5.Axle grease lubricant is supplied by EXXON Mobile which could providehigh lubricating performance and protect bearing well.
6. Axle brake lining is high performance, non-asbestos, non pollution and long service life.To make check and replace easily, also come with the position of the exhaustion to remind customer to check and maintain.
7.Axle bearing is adopted famous brand in China, with the advantages of over loading
capability, High rotating speed, good intensity, abrade resistant and heat resistant.

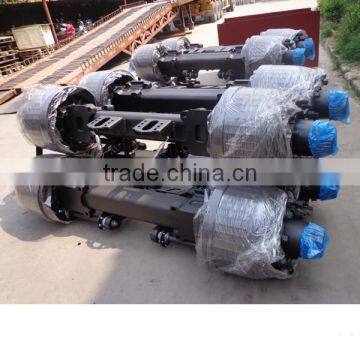

Germany Semi Trailer Axles for Sale Details Photos:
More Axles As Bollow for your Reference:
Besides Semi Trailer Axles for Sale, WONDEE AUTOPARTS also Supply SEMI TRAILER,LEAF SPRING, WHEEL RIM,LANDING GEAR,SUSPENSION ... .... ...
